    18650 4S1P Rechargeable Lithium Batteries

    Product Details:

    Place of Origin: China
    Certification: UN38.3, MSDS, IEC62133, RoHS
    Model Number: ICR18650-4S1P

    Payment & Shipping Terms:

    Minimum Order Quantity: 500pieces
    Packaging Details: Bulk packing
    Delivery Time: within 15days
    Payment Terms: T/T
    Supply Ability: 3'000Pieces daily
    Get Best Price Contact Now

    Detail Information

    Battery Type: Lithium Ion Battery Pack Model: ICR18650 4S1P
    Nominal Voltage: 14.8V Nominal Capacity: 2600mAh
    Cycle Life: 500times Discharging Rate: 1C
    Anode Material: Lithium Cobaltate Application: Solar Light, Electronic Products, Power Tool
    Lead Time: 15days Battery Warranty: 1year
    High Light:

    18650 4S1P Rechargeable Lithium Batteries

    ,

    2600mAh 18650 4S1P

    ,

    ICR18650 4S1P

    Product Description

    18650 4S1P Rechargeable Lithium Batteries

    Lithium Cylindrical Battery 14.8V Rechargeable Lithium Batteries 2600mAh 18650 4S1P

    Product name 14.8V li-ion 18650 rechargeable battery pack for led lights lithium ion battery
    Rated capacity 2600mAh or customized
    Rated voltage 14.8V
    Source resistance <150mΩ
    Cell specification 3.7V 2200mAh
    Cell Size 18650
    Cell Quantity 4pcs
    Charge voltage 16.8V
    Charge cutoff voltage 12V
    Rated discharge current <4A
    Individual cell over-discharging protected voltage 2.75±0.08V
    Charge mode CC/CV
    Charge temperature range 0'C~45'C
    Discharge temperature range 0'C~45'C
    Storage temperature -20'C~60'C
    Battery size 38*38*72mm and customize
    Battery weight 200g
    Connector can customize

    Related 18650 Battery pack:



    18650-1S1P 3.7V 2000mAh 3.7V 2200mAh 3.7V 2500mAh 3.7V 2600mAh
    18650-2S1P 7.4V 2600mAh 7.4V 2800mAh 7.4V 2900mAh 7.4V 3000mAh
    18650-2S1P 7.4V 3200mAh 7.4V 3300mAh 7.4V 3400mAh 7.4V 3500mAh
    18650-3S1P 11.1V 2000mAh 11.1V 2200mAh 11.1V 2500mAh 11.1V 2600mAh
    18650-3S2P 11.1V 5200mAh 11.1V 5600mAh 11.1V 5800mAh 11.1V 6000mAh
    18650-3S2P 11.1V 6400mAh 11.1V 6600mAh 11.1V 6800mAh 11.1V 7000mAh
    18650-4S3P 14.8V 6600mAh 14.8V 7500mAh 14.8V 7800mAh 14.8V 9000mAh
    18650-10S4P 36V 8800mAh 36V 9600mAh 36V 10000mAh 36V 10400mAh

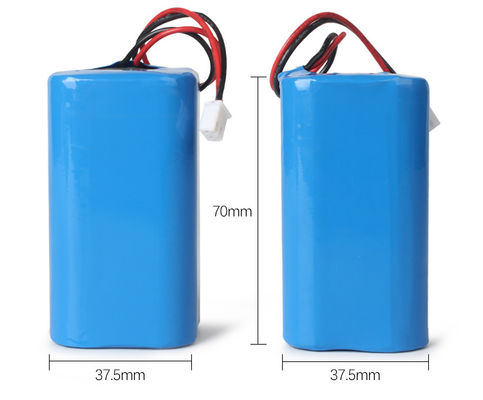

    Detailed images for 14.8V 2600mAh lithium battery pack ICR18650 li on rechargeable batteries



    18650 4S1P Rechargeable Lithium Batteries 0

    18650 4S1P Rechargeable Lithium Batteries 1

    18650 4S1P Rechargeable Lithium Batteries 2

    FAQ:



    Q: Can I use Lithium batteries mixing with other battery types?

    A: If different types of batteries are used together, or new batteries are used with old ones, the difference in characteristics of voltage, capacity, etc. may cause over-discharge of the battery which is exhausted first, leading to swelling, bursting or fire.



    Q: What will happen if the batteries with different capacity are packed together?

    A: If the batteries with different capacity or new and old batteries are used together, leakage, zero voltage and so on might happen. If the batteries are rechargeable and are being charged, some batteries are overcharged and other batteries is not in full charged state. During the discharge, some batteries cannot discharge fully and other batteries might over discharge. This way, the battery will be damaged.



    Q: What are the possible reasons for zero voltage or low voltage of the battery pack?

    A: Short circuit or open circuit of the connector or wrong connection, de-soldering or cold solder joint between the batteries and lead, wrong connection between the batteries.



    Q: What are the possible reasons if the rechargeable battery or rechargeable battery pack cannot be charged?

    A: The battery is zero voltage or there is battery with zero voltage in the battery pack.

    There is wrong connection inside the battery pack.

    There is abnormally of electronic components and/or PCB inside the battery pack.

    There is failure in charger.

    Outer element causes the charging efficiency to be too low, such as extremely low or high temperature.

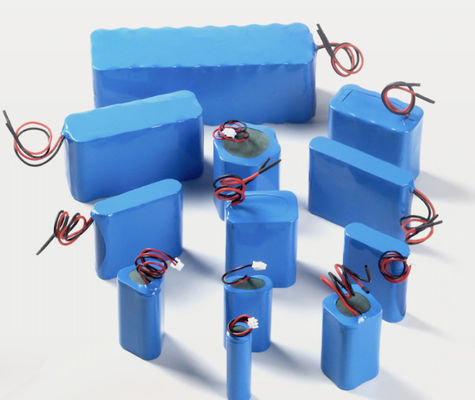

    Customized lithium rechargeable battery packs



    18650 4S1P Rechargeable Lithium Batteries 3



    Why Choose us:



    Technology

    • All-weather applicability (-30~60℃)
    • Highly safe battery design technology with the newest electrolyte and separator technology applie
    • Full Coverage of Battery Variety: Lithium ion Cylindrical battery, lithium polymer battery, LiFePO4 battery, Solar Energy Storage battery pack, square aluminum shell, Primary Battery, etc.

    R&D

    Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.

    18650 4S1P Rechargeable Lithium Batteries 4



    Quality Control



    18650 4S1P Rechargeable Lithium Batteries 5



    Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.

    18650 4S1P Rechargeable Lithium Batteries 6



    Factory Tour:



    Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.

    We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,

    and customized battery pack since 2001.

    18650 4S1P Rechargeable Lithium Batteries 7
