| Brand Name: | GPE |
| Model Number: | LP103035 |
| MOQ: | 2000pieces |
| Packaging Details: | Bulk packing |
| Payment Terms: | T/T |
| No. | Item | General Parameter |
|---|---|---|

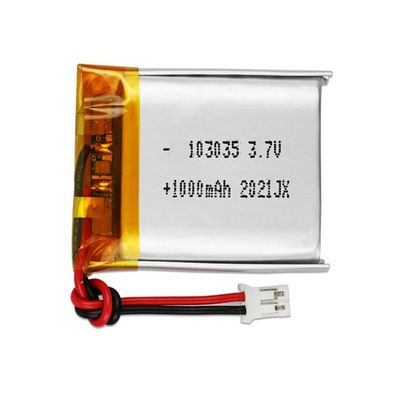

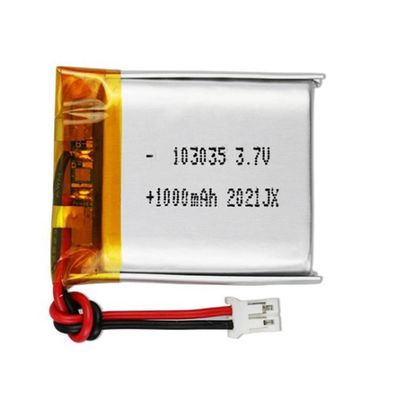

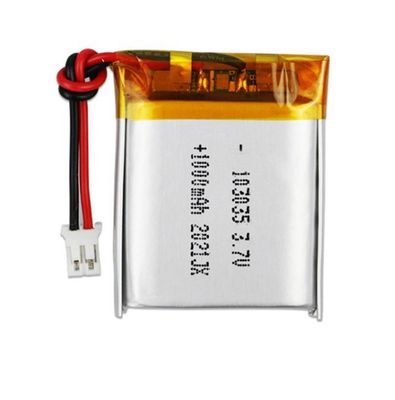

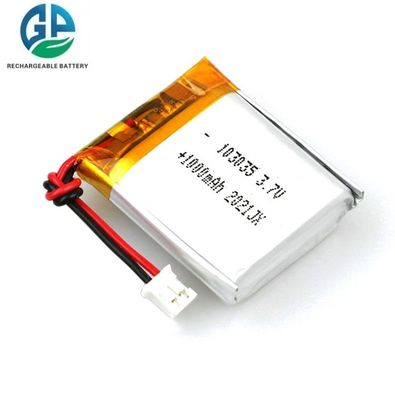

| 1 | Type | Lithium Polymer Battery |
| 2 | Model | 3.7V 1000mAh |
| 3 | Color | Silver/As Required |
| 4 | Standard Capacity (0.2C5A) | 1000mAh |
| 5 | Rated Voltage | 3.7V |
| 6 | Max Charge Voltage | 4.2V |
| 7 | Cut-off Voltage | 2.75V |
| 8 | Standard Charge Current | < 0.5A / Customized |
| 9 | Max Continuous Discharge Current | < 1A / Customized |
| 10 | Peak Discharge Current | < 2A / Customized |
| 11 | Battery Dimension | 10×30×37mm with PCB |
| 12 | Total Weight (Approx.) | About 20g |
| 13 | Standard Charging Temperature | 0℃ to 45℃ |
| 14 | Discharge Temperature | -20℃ to 60℃ |
| 15 | Storage Temperature | -20℃ to 45℃ |
| 16 | Cycle Life | >500 Times |
| 17 | Warranty | 12 Months |

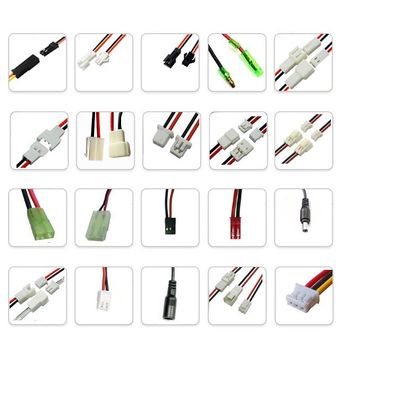

| 18 | Options | Connectors/Other Capacity |

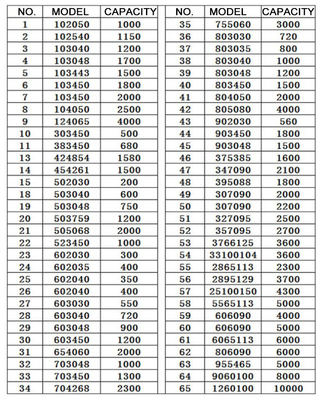

| Model | Voltage | Capacity | Certificates |
|---|---|---|---|
| 252940 | 3.7V | 260mAh | UL/CB/KC/CE/FCC/ROHS/UN38.3/MSDS |
| 301318 | 3.7V | 50mAh | KC/CB/UN38.3/MSDS |
| 301525 | 3.7V | 80mAh | CB/KC/UN38.3 |
| 302540 | 3.7V | 280mAh | KC/CE/FCC/ROHS/UN38.3/MSDS |
| 303030 | 3.7V | 250mAh | UL/KC/IEC62133/CE/ROHS/UN38.3/MSDS |
| 303450 | 3.7V | 500mAh | KC/CE/80℃ High Temperature Report/CQC |
| 503035 | 3.7V | 500mAh | UL/KC/IEC62133/CE/UN38.3/MSDS |
| 503450 | 3.7V | 1000mAh | UL/KC/CB/IEC62133/CE/FCC/ROHS/UN38.3/MSDS |
| 504065 | 3.7V | 1500mAh | UL/KC/CB/IEC62133/CE/FCC/ROHS/UN38.3/MSDS |
| 103035 | 3.7V | 1100mAh | KC/CE |
