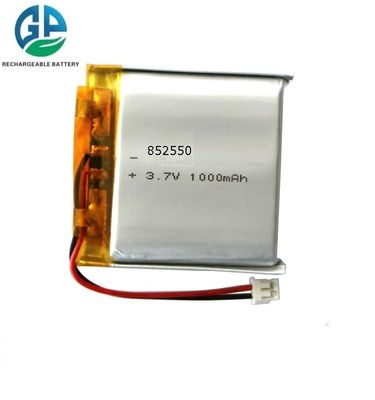

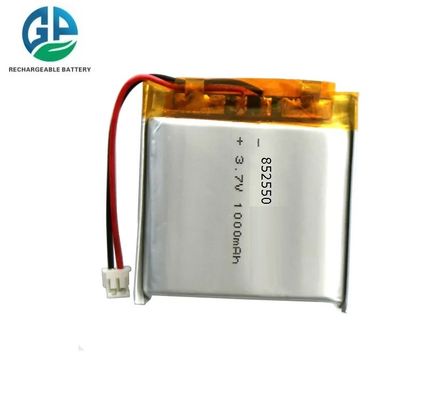

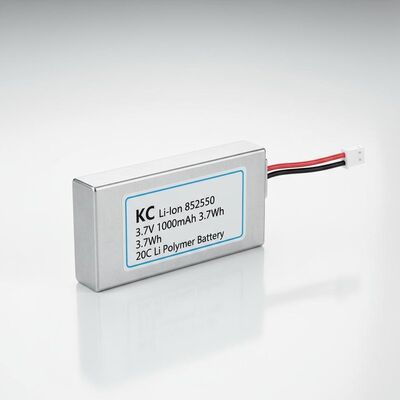

| Brand Name: | GPE |
| Model Number: | LP852550 |
| MOQ: | 2000pieces |
| Packaging Details: | Bulk packing |
| Payment Terms: | T/T |
| Nominal Capacity | 1000mAh-852550 |
| Nominal Voltage | 3.7V |
| Initial Impedance | (23±2°C) |
| Limited Charge Voltage | 4.20V |
| Discharge Cut-off Voltage | 3.0V |
| Charge Current | Standard Charge: 0.2C Rapid Charge: 3C |
| Standard Charge | 0.2C (constant current) charge to 4.2V, then CV (constant voltage) charge till charge current decline to 0.02C |
| Standard Discharge | 0.2C discharge to the Discharge Cut-off Voltage |
| End-of-Charge Current | 0.02C |
| Max Continuous Charge Current | 3C |
| Max Continuous Discharge Current | 20C |
| Working Temperature Range | Charge: 0 ~ 45°C Discharge: -20 ~ 60°C |
| Storage Temperature Range | -20 ~ 60°C ≤1month -20 ~ 45°C ≤3months -20 ~ 30°C ≤12months |
| Operating and Storage Humidity Range | 45~75% RH |
| Weight (Approx) | 41.5g |
| Model | Voltage | Capacity | Certificates |
|---|---|---|---|
| 252940 | 3.7V | 260mAh | UL/CB/KC/CE/FCC/ROHS/UN38.3/MSDS |
| 503450 | 3.7V | 1000mAh | UL/KC/CB/IEC62133/CE/FCC/ROHS/UN38.3/MSDS |
| 504065 | 3.7V | 1500mAh | UL/KC/CB/IEC62133/CE/FCC/ROHS/UN38.3/MSDS |
| 803040 | 3.7V | 1000mAh | UL/KC/CE/ROHS/UN38.3/MSDS |
| 103040 | 3.7V | 1200mAh | CB/KC/IEC62133/EN62133/CE/FCC/ROHS/UN38.3/MSDS |
