KC UL 903242-2P Li Ion Rechargeable Battery 3.7V 2500mah Cylindrical Battery Cell

Model Number:	903242-2P
MOQ:	500pieces
Packaging Details:	Bulk packing
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

KC，UN38.3, MSDS, IEC62133, RoHS

Battery Type:

Lithium Cylindrical Battery Pack

Model:

903242-2P

Nominal Voltage:

Nominal Capacity:

2500mAh

End Of Charging:

Cut-off Voltage:

2.75V

Cycle Life:

500times

Certificate:

CB-IEC62133, KC, UN38.3， UL

Supply Ability:

100'000Pieces daily

Highlight:

2500mah Li Ion Rechargeable Battery

Cylindrical Li Ion Rechargeable Battery

3.7V Li Ion Rechargeable Battery

Product Description

Li Ion Rechargeable Battery 3.7V 2500mah 903242-2P Cylindrical Battery Cell

Lithium Battery Pack 903242-2P Rechargeable batteries Li ion Battery 3.7V 2500mAh

1,Mechanical Characteristics
Cell:	903242	PCM:	Yes
NTC:	No	Weight:	appr. 50g
Configuration:	1S2P

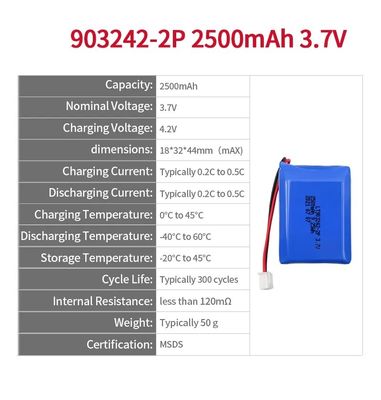

2,Electrical Specification
Capacity:	2500mAh	Nominal Voltage:	3.7V
Energy:	9.25Wh	Internal Impedance:	less than 120mΩ
Max. Charge Voltage:	4.2V	Discharge Cut Off:	2.75V
Max. Charge Current:	2500mA	Max. Discharge Current:	2500mA
Standard Charge Current:	500mA	Standard Discharge Current:	50mA
Charge Temp. Range:	0°C to 45°C	Discharge Temp. Range	-40°C to 50°C
Storage Temp. Range	1 year at -20℃ to +30℃	Cycle life:	500 cycles ≥92%
	3 moths at -20℃ to +45℃		800 cycles ≥88%
	1 month at -20℃ to +60℃		1000 cycles ≥80%

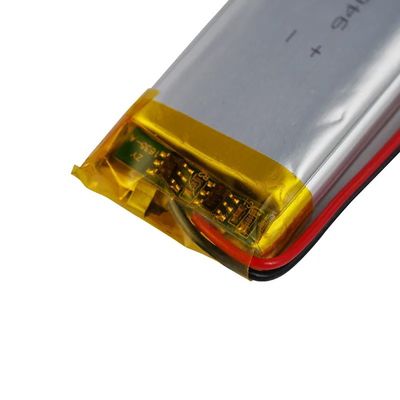

3,Cell protection
Overcharge Detection :	4.28 ±25mV (1 to 1.6sec delay, release 4.2V ±50mV)	Overdischarge Detection:	2.5V ±50mV (115 to 175msec. delay, release 3.0V ±50mV)
Overcurrent Detection:	2.5A to 4.0A (9 to 15msec. delay)	Short protection:	Yes

Detailed images: 3C discharge rate 18650 Lithium ion batteries 7.4V 2500mAh/3000mAh

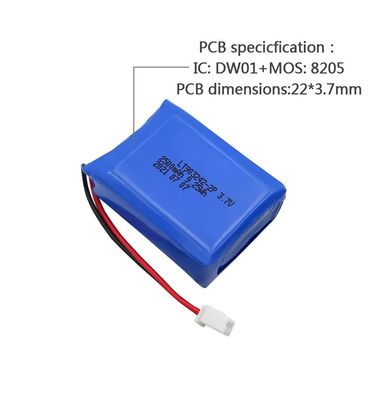

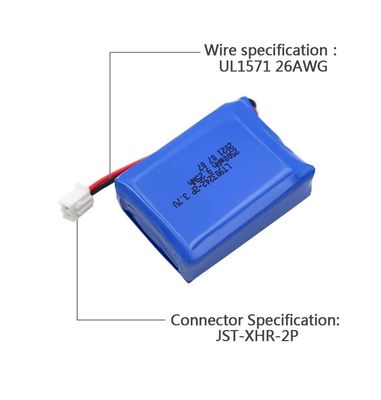

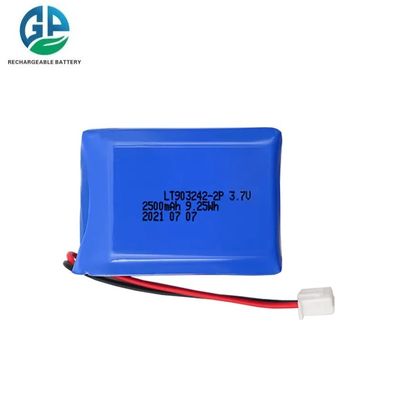

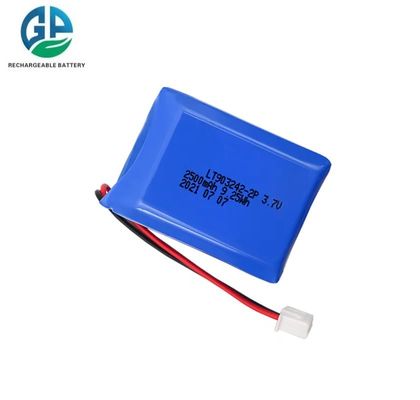

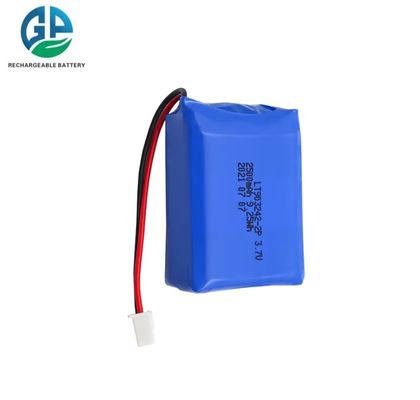

903242-2P Rechargeable batteries Li ion Battery 3.7V 2500mAh

KC UL 903242-2P Li Ion Rechargeable Battery 3.7V 2500mah Cylindrical Battery Cell 0

Other lithium ion cylindrical battery cell on sale:

Lithium ion battery cells list
Model No.	Nominal Voltage	Typical Capacity	Size	Charge Rate	Discharging Rate	Weight(g)
ICR14500	3.7V	600mah	13.9×48.5±0.3	0.2-1C	0.2-2C	19.5
ICR14500	3.7V	750mah	13.9×48.5±0.3	0.2-1C	0.2-2C	20
ICR14500	3.7V	800mah	13.9×48.5±0.3	0.2-1C	0.2-2C	20.5
ICR18500	3.7V	1300mah	18.0×49.7±0.2	0.2-1C	0.2-2C	32
ICR18500J	3.7V	1400mah	18.0×49.7±0.2	0.2-1C	0.2-2C	31
ICR18500	3.7V	1600mah	18.0×49.7±0.2	0.2-1C	0.2-2C	32
ICR18650	3.7V	2200mah	18.0×65.2±0.2	0.2-1C	0.2-2C	40
ICR18650	3.7V	2600mah	18.0×65.2±0.2	0.2-1C	0.2-2C	45
ICR18650	3.7V	3000mah	18.0×65.2±0.2	0.2-1C	0.2-2C	48
ICR18650	3.7V	3400mah	18.0×65.2±0.2	0.2-1C	0.2-2C	50
ICR26650	3.7V	4500mah	26.3×65.0±0.5	0.2-1C	0.2-2C	80
ICR26650	3.7V	5000mah	26.3×65.0±0.5	0.2-1C	0.2-2C	85
ICR18650P	3.7V	2600mah	18.0×65.2±0.2	0.2-1C	5C	45

Why Choose us:

Technology

All-weather applicability (-30~60℃)
Highly safe battery design technology with the newest electrolyte and separator technology applie

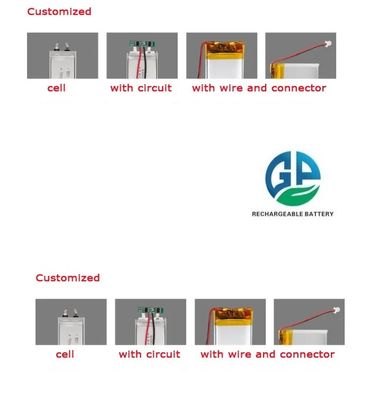

Full Coverage of Battery Variety: Lithium ion Cylindrical battery, lithium polymer battery, LiFePO4 battery, Solar Energy Storage battery pack, square aluminum shell, Primary Battery, etc.

R&D

Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.

KC UL 903242-2P Li Ion Rechargeable Battery 3.7V 2500mah Cylindrical Battery Cell 1

Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.

KC UL 903242-2P Li Ion Rechargeable Battery 3.7V 2500mah Cylindrical Battery Cell 2

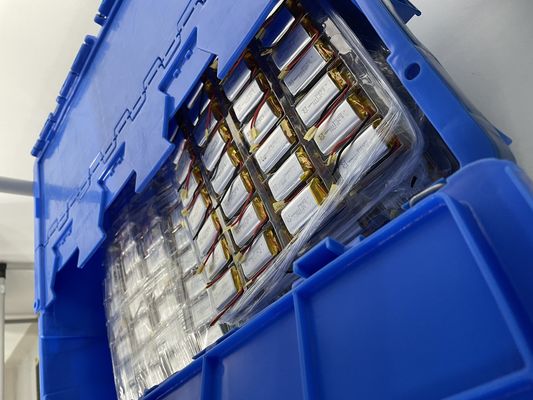

Factory Tour:

Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.

We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,

and customized battery pack since 2001.

KC UL 903242-2P Li Ion Rechargeable Battery 3.7V 2500mah Cylindrical Battery Cell 3
