Lithium Polymer Battery Pack

505573 3.7V 2400mAh Lithium Polymer Battery Pack for Digital Devices

All Category

Solar Energy Storage Batteries

Rechargeable Lithium Batteries

Portable Power Station

Mrs. Linda

linda@szgpebattery.com

+86 15817210994

Contact Now

505573 3.7V 2400mAh Lithium Polymer Battery Pack for Digital Devices

Model Number:	505573
MOQ:	2000pieces

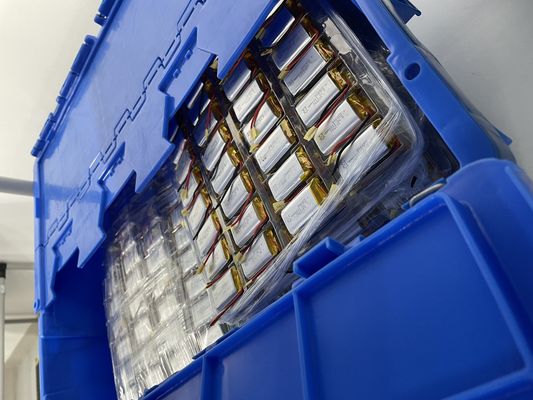

Packaging Details:	Bulk packing
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

KC,UN38.3, MSDS, IEC62133, RoHS

Voltage:

Weight:

52.99g

Size:

5*55*75mm

Capacity:

2400mAh

Cycle Life:

500times

Max Charge Voltage:

Supply Ability:

50'000Pieces daily

Highlight:

Low Temperature Lithium Polymer Battery Pack

2400mAh Lithium Polymer Battery Pack

3.7V Lithium Polymer Battery Pack

Product Description

Lithium Polymer Battery Pack 8.8wh 3.7V 2400mAh 505573 Low Temperature For Digital Devices

Product Overview

3.7V 2400mAh 505573 Lithium Polymer Battery Pack with 500 Cycle Life

This 505573 3.7V slim size LiPo battery features 2400mAh capacity and 500 cycle life, designed for reliable performance in digital devices.

Important Usage Guidelines

Avoid overcharging: Overcharging can cause overheating and potential explosion. Always charge to recommended levels and avoid extended charging periods.
Avoid extreme temperatures: Extreme temperatures affect performance and lifespan. Store in cool, dry places and avoid exposure to heat or cold.
Avoid physical damage: Physical damage can cause malfunction or explosion. Avoid dropping, crushing, or exposing to sharp objects.
Use original chargers: Non-original chargers can damage batteries or cause overheating. Always use device-specific or genuine replacement chargers.
Dispose of properly: When worn out, dispose according to local government guidelines. Do not throw in trash or recycle with other electronics.

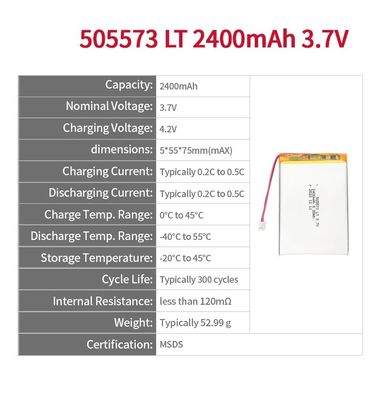

Technical Specifications

Mechanical Characteristics

Cell	505573LT

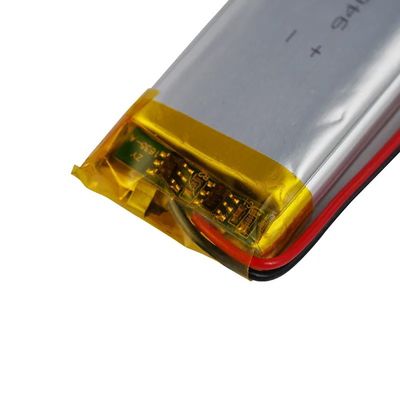

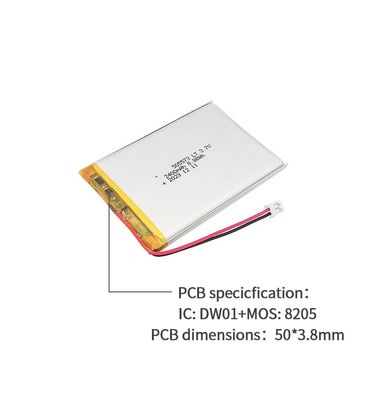

PCM	Yes
NTC	No

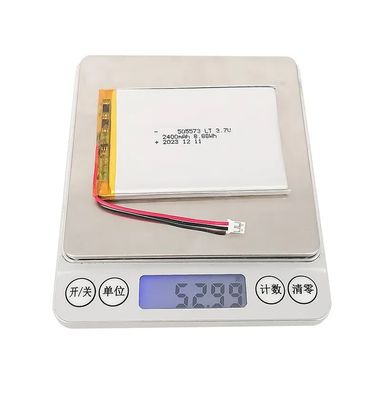

Weight	Approx. 52.99g
Configuration	1S1P
Dimensions	5×55×75mm (MAX)

Electrical Specification

Capacity	2400mAh
Nominal Voltage	3.7V
Energy	9.25Wh
Internal Impedance	Less than 120 mΩ
Max. Charge Voltage	4.2V
Discharge Cut Off	2.75V
Max. Charge Current	2400mA
Max. Discharge Current	2400mA
Standard Charge Current	480mA
Standard Discharge Current	480mA
Charge Temp. Range	0℃ to 45℃
Discharge Temp. Range	-40℃ to 50℃
Storage Temp. Range	1 year at -20℃ to +30℃ 3 months at -20℃ to +45℃ 1 month at -20℃ to +60℃
Cycle Life	100 cycles ≥92% 300 cycles ≥88% 500 cycles ≥80%

Cell Protection

Overcharge Detection	4.28V ±25mV (1 to 1.6sec delay, release 4.2V ±50mV)
Over discharge Detection	2.5V ±50mV (115 to 175msec. delay, release 3.0V ±50mV)
Overcurrent Detection	2.5A to 4.0A (9 to 15msec. delay)
Short Protection	Yes

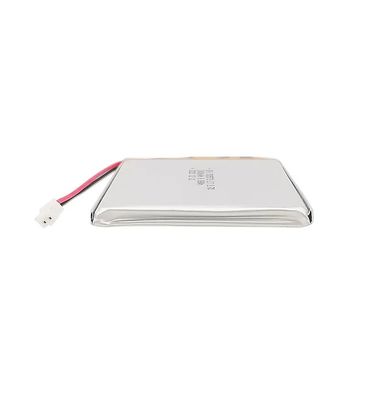

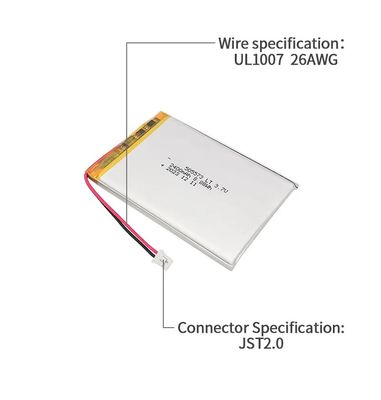

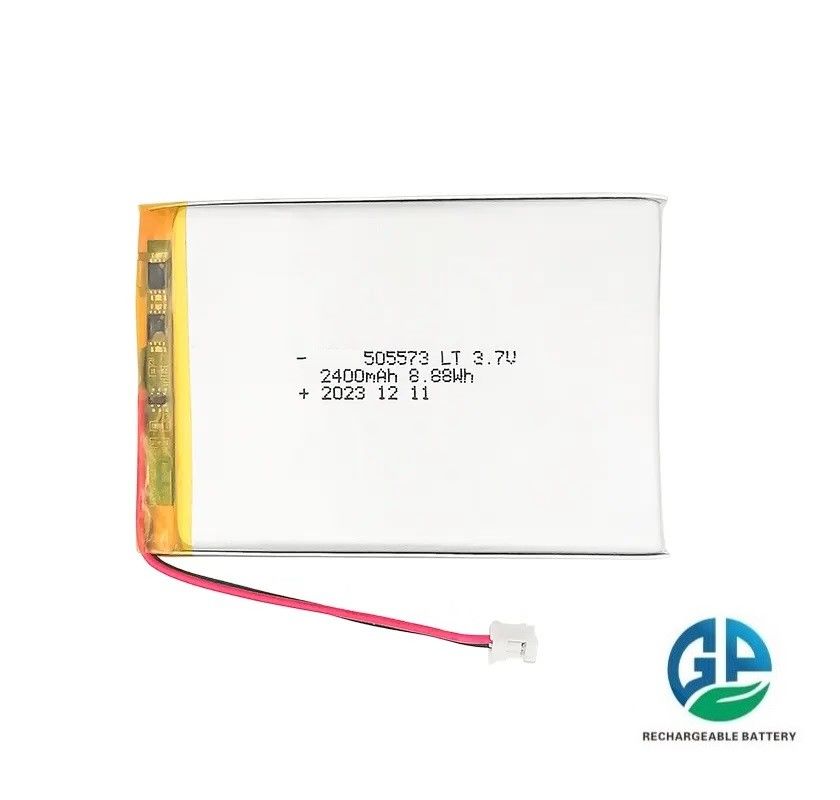

Product Images

Why Choose Gold Power Energy

Technology

All-weather applicability (-30~60℃), highly safe battery design with advanced electrolyte and separator technology, full coverage of battery varieties including lithium ion cylindrical, polymer, LiFePO4, and energy storage systems.

R&D Capabilities

Experienced R&D team with over 60 engineers and advanced equipment supporting OEM and ODM requirements.

Quality Control

Comprehensive quality assurance processes ensuring reliable and safe battery performance.

Certifications

CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certified for global market compliance.

Company Overview

Shenzhen Gold Power Energy Co., Ltd is one of the leading battery suppliers in China, offering various batteries including Li polymer, Lithium ion, LiFePO4, and customized battery packs since 2001.
