| Model Number: | 104060 |
| MOQ: | 2000pieces |
| Packaging Details: | Bulk packing |
| Payment Terms: | T/T |
KC IEC62133 approved 3.7 volt li polymer rechargeable batteries 2800mAh customized lithium ion polymer battery

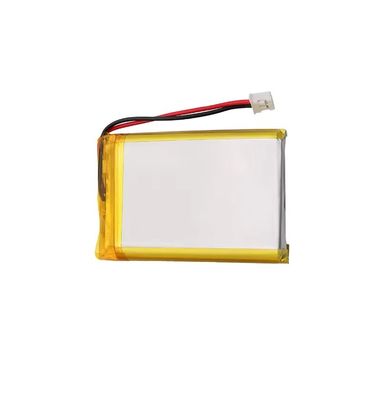

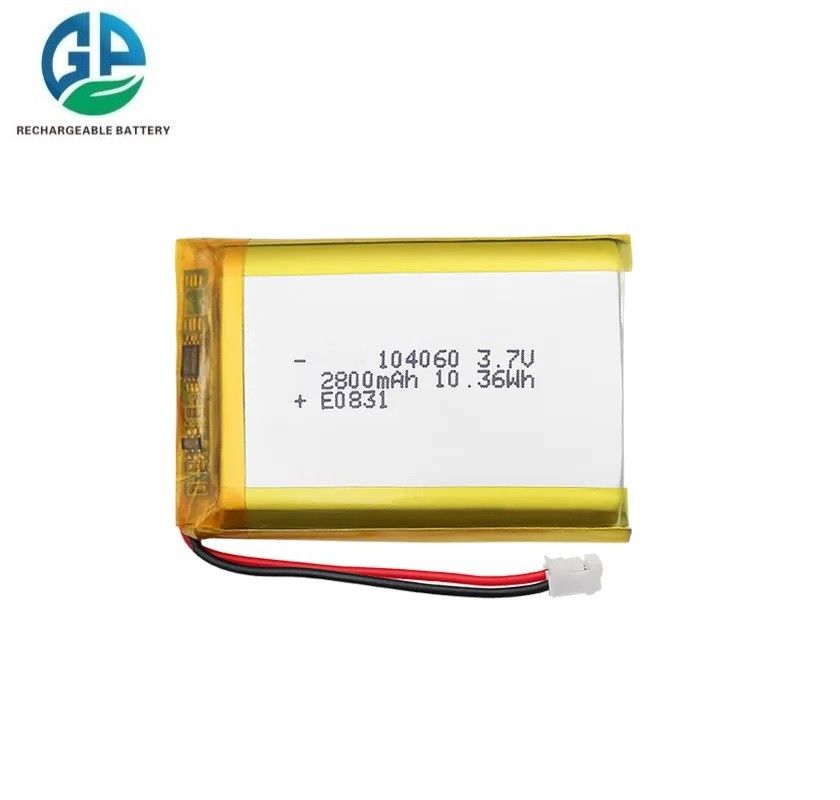

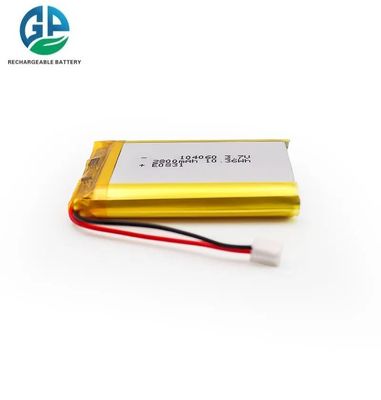

104060 Rechargeable Lithium Ion Polymer Battery Pack 3.7V 2800mAh
Do not submerge the battery in the water.
Do not mix fresh batteries with used batteries.
Do not mix batteries with metal stuff together.
Do not insert batteries with the (+) and (-) reversed.
Do not disassemble, dispose in fire, heat or short circuit.
Do not put the battery in a charger or equipment with wrong terminals connected.
104060 3.7V 2800mAh 3.7 v li ion polymer battery Specification:
|
1,Mechanical Characteristics
|
|||
|
Cell:
|
104060
|
PCM:
|
YES
|
|
NTC:
|
NO
|
Weight:
|
42g
|
|
Configuration:
|
1S1P
|
Demension
|
10*40*62mm
|
|
2,Electrical Specification
|
|||
|
Capacity:
|
2800mAh
|
Nominal Voltage:
|
3.7V
|
|
Energy:
|
10.36Wh
|
Internal Impedance:
|
less than 150mΩ
|
|
Max. Charge Voltage:
|
4.2V
|
Discharge Cut Off:
|
2.75V
|
|
Max. Charge Current:
|
1400mA
|
Max. Discharge Current:
|
1400mA
|
|
Standard Charge Current:
|
700mA
|
Standard Discharge Current:
|
700mA
|
|
Charge Temp. Range:
|
Typically 0°C to 45°С
|
Discharge Temp. Range
|
-20°C to 60°С
|
|
Storage Temp. Range
|
1 year at -20℃ to +30℃
|
Cycle life:
|
100 cycles ≥92%
|
|
3 moths at -20℃ to +45℃
|
300 cycles ≥88%
|
||
|
1 month at -20℃ to +60℃
|
500 cycles ≥80%
|
||
|

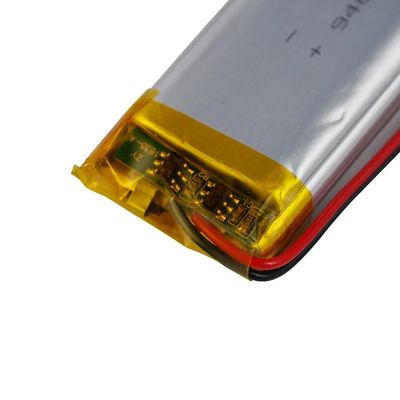

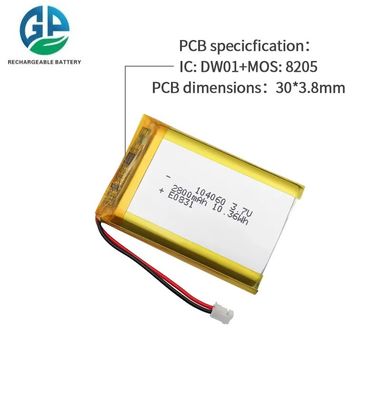

3,Cell protection
|
|||
|
Overcharge Detection :
|
4.28 ±25mV (1 to 1.6sec delay, release 4.2V ±50mV)
|
Overdischarge Detection:
|
2.5V ±50mV (115 to 175msec. delay, release 3.0V ±50mV)
|
|
Overcurrent Detection:
|
2.5A to 4.0A (9 to 15msec. delay)
|
Short protection:
|
Yes
|
Li polymer battery pack widely used in:
Lithium Polymer battery pack 3.7V 2800mAh 104060 li polymer Rechargeable battery

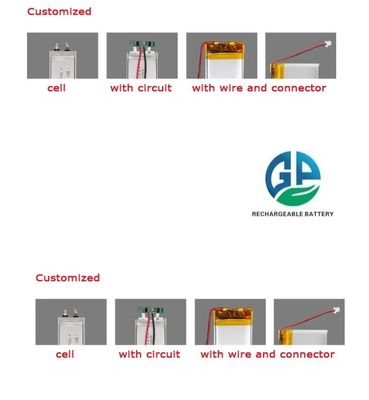

Standard packaging for 3.7V 7.4V lithium polymer battery pack
Why Choose us:
Technology
R&D
Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.
Quality Control
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.
We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
|
