| Model Number: | LP803860 |
| MOQ: | 2000pieces |
| Packaging Details: | Bulk packing |
| Payment Terms: | T/T |
LP803860 Lithium Polymer Battery Pack High Capacity 3.7V 2000mah Rechargeable Lithium ion Polymer Battery Pack for medical devices digital product
| No. | Item | Specification | Remarks | |
| 1 | Brand Name | GPE or OEM | ||
| 2 | Model No. | LP803860 | ||
| 3 | Normilar Capacity | 2000 mAh | 0.2 C5A discharge | |
| 4 | Normilar Voltage | 3.7V | ||
| 5 | Discharge Voltage (Min.) | 2.75V | ||
| 6 | Charging Voltage (Max.) | 4.2V±0.03V | ||
| 7 | Charging Current (Std.) | 0.5 C5A CC/CV | ||
| 8 | Discharging Current (Max. continue) | 1 C5A | ||
| 9 | Discharging Current (Max. temporary) | 2 C5A | ||
| 10 | Charging Temperature & Humidity | 0℃ ~ +45℃ 45~85%RH | ||
| 11 | Discharging Temperature & Humidity | -20℃ ~ +60℃ 45~85%RH | ||
| 12 | Battery cell storage and transportation environment temperature and humidity | Min. 1 months | -20℃ ~ +60℃ 45~85%RH | |
| Min. 3 months | -20℃ ~ +45℃ 45~85%RH | |||
| Min. 12 months | -20℃ ~ +25℃ 45~85%RH | |||

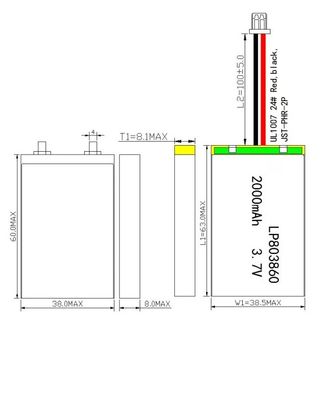

| 13 | Outline Dimension | 8.0*38*60mm | ||
| 14 | Internal Impedance | ≤60 mΩ | ||
| 15 | Weight | Approx. 50.0g | ||
| 16 | Cycle Life | 800 times | ||
| 17 | Warranty | 12 months | ||

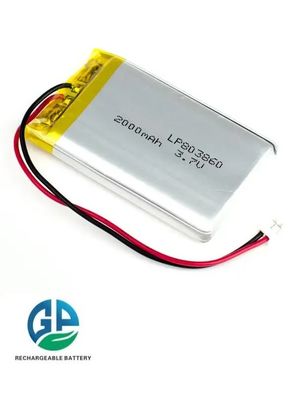

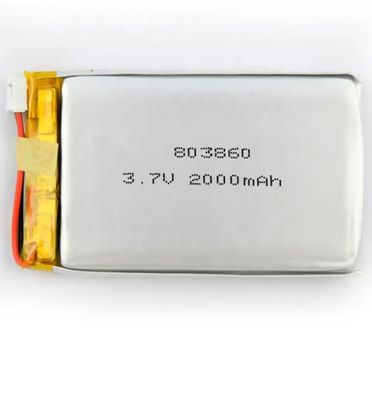

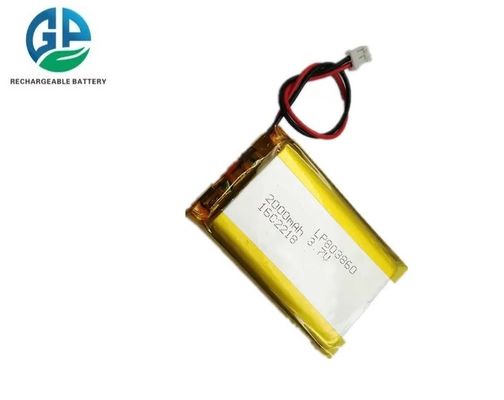

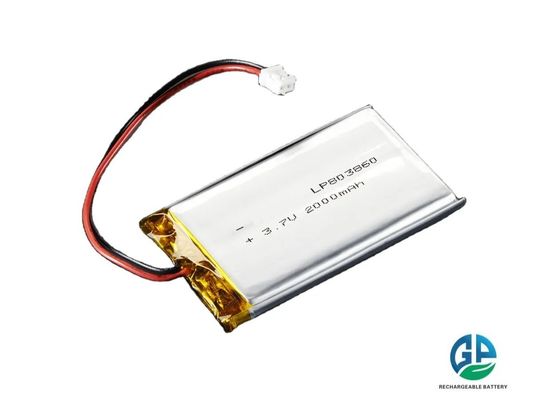

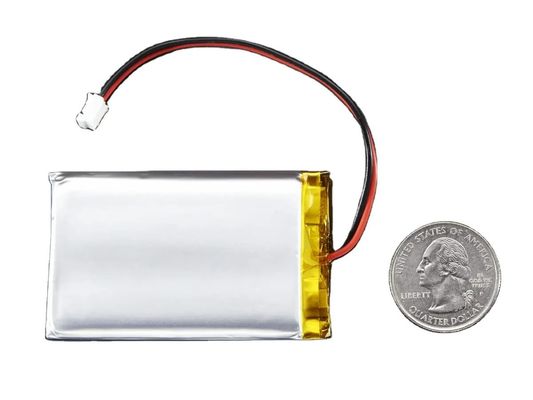

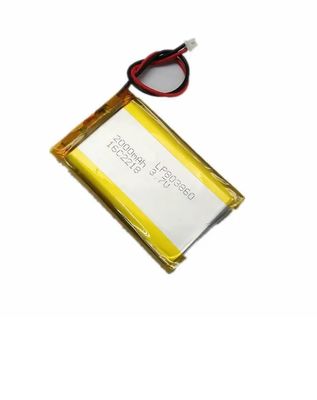

Images for Rechargeable li-Polymer battery 803860 3.7V 2000mah lipo power bank battery
Standard packaging for 3.7V 7.4V lithium polymer battery pack
Why Choose us:
Technology
R&D
Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.
We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
|
|
