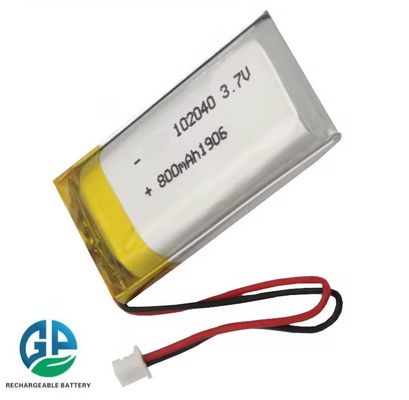

| Model Number: | LP102040 |
| MOQ: | 2000pieces |
| Packaging Details: | Bulk packing |
| Payment Terms: | T/T |
| Parameter | Specification |
|---|---|
| Battery Type | Lithium Polymer / Lipo Battery |
| Model | 102040 |
| Nominal Voltage / Capacity | 3.7V / 800mAh |
| Max Charge Voltage | 4.25V |
| General Charge Current | 0.2C / Adjustable |
| Fast Charge Current | 1C / Adjustable |
| General Discharge Current | 0.2C / Adjustable |
| Max Continuous Discharge Current | 1C / Adjustable |
| Discharge Peak Current | 2C / Adjustable |
| Cycle Life | >500 times at 0.5C 80% DOD |
| Cell Dimensions | 10×20×40mm (Thickness×Width×Length) |
| Battery with PCM Dimensions | 10×20.5×43mm (Thickness×Width×Length) |
| Weight | 18g |
| Model | Cell Dimensions | With PCM Dimensions | Capacity |
|---|---|---|---|
| 302025 | 3.0×20×25mm | 3.2×21×27.5mm | 3.7V 100mAh |
| 302530 | 3.0×25×30mm | 3.2×26×32.5mm | 3.7V 180mAh |
| 401824 | 4.0×18×24mm | 4.2×19×26.5mm | 3.7V 180mAh |
| 402525 | 4.0×25×25mm | 4.2×26×27.5mm | 3.7V 200mAh |
| 483450 | 4.8×34×50mm | 5.0×35×52.5mm | 3.7V 850mAh |
| 502030 | 5.0×20×30mm | 5.2×21×32.5mm | 3.7V 240mAh |
| 502525 | 5.0×25×25mm | 5.2×26×27.5mm | 3.7V 180mAh |
| 503030 | 5.0×30×30mm | 5.2×31×32.5mm | 3.7V 430mAh |
| 523450 | 5.2×34×50mm | 5.4×35×52.5mm | 3.7V 1000mAh |
| 553444 | 5.5×34×44mm | 5.7×35×46.5mm | 3.7V 850mAh |
