| Model Number: | LP502030 |
| MOQ: | 3000pieces |
| Packaging Details: | Bulk packing |
| Payment Terms: | T/T |
What are the advantages of lithium polymer battery pack?
1. Good safety performance
The polymer lithium battery is made of aluminum-plastic flexible packaging, which is different from the metal casing of the liquid battery.Once the safety hazard occurs, the liquid battery is easy to explode, and the polymer battery can only be air-blasted at most.
2. Small thickness, can be made thinner
Ultra-thin, the battery can be assembled into a credit card.Ordinary liquid lithium battery adopts the method of customizing the outer casing first, and then plugging the positive and negative materials.The thickness is 3.6mm or less, there is a technical bottleneck.The polymer battery core does not have this problem, and the thickness can be less than 1mm, which meets the needs of current mobile phones.Direction.
3. Light weight
A battery using a polymer electrolyte does not require a metal shell as a protective outer package.The weight of the polymer battery is 40% lighter than the steel shell lithium battery of the same capacity specification, which is 20% lighter than the aluminum shell battery.
4. Large capacity
The polymer battery has a capacity of 10-15% higher than that of the same size steel shell battery, which is 5-10% higher than that of the aluminum shell battery.It is the first choice for color screen mobile phones and MMS mobile phones.Nowadays, the new color screen and MMS mobile phones on the market are mostly used.Polymer batteries.
5. Small internal resistance
The internal resistance of the polymer battery core is smaller than that of the general liquid battery.At present, the internal resistance of the domestic polymer battery core can even be less than 35MΩ, which greatly reduces the self-consumption of the battery and prolongs the standby time of the mobile phone.The level of integration with the international.This polymer lithium battery that supports large discharge currents is an ideal choice for remote control models and is the most promising alternative to nickel-metal hydride batteries.
6. Shape can be customized
Manufacturers are not limited to standard shapes and can be economically made to the right size.Polymer batteries can increase or decrease the thickness of batteries according to customers' needs.Develop new battery models, which are cheap, open cycle is short, and some can even be customized according to the shape of mobile phones to make full use of battery casing space and upgrade batteries.Capacity.

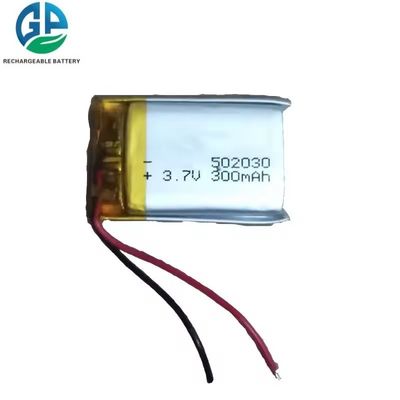

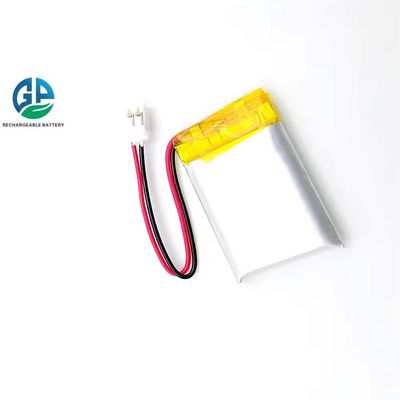

li polymer battery 502030 3.7V 300mAh lithium rechargeable battery pack for medical device
| Specification of Li-Polymer battery LP502030 3.7V 300mah | |||
| No. | Item | Characteristics | Remarks |
| 3.1 | Nominal Capacity | Minimum:300mAh |
Fully charged @1C to 4.2V for 2.5 hrs, then discharge to 3.0V @ 0.2C. |
| Typical: 300mAh | |||
| 3.2 | Nominal Voltage | 3.7V | |
| 3.3 | Charging Cut-off Voltage | 4.2V | |
| 3.4 | Discharge Cut-off Voltage | 3.0V | |
| 3.5 | Max Constant Charging Current | 300mA(1.0C) | |
| 3.6 | Maximum Continuous Discharging Current | 600mA(2.0C) | |
| 3.7 | Operating Temperature | Charge 0~45℃ | |
| Discharge –20~60℃ | |||
| 3.8 | Storage Temperature | -20~45℃ for 1Month | |
| -20~35℃ for 6Months | |||
| 3.9 | Weight | 7g | Approximate value |
| 3.1 | Storage Voltage | 3.80-3.90V | |
Warning And Matters Need Attention In Using Battery.
Do not use or leave the battery at high temperature (for example, at strong direct sunlight or in a vehicle in extremely hot weather).
Otherwise, it can overheat or fire or its performance will be degenerate and its service life will be decreased
Do not use the battery in a location where static electricity and magnetic field is great,
otherwise, the safety devices may be damaged, causing hidden trouble of safety.
If the battery leaks and the electrolyte gets into the eyes, do not rub the eyes, instead, rinse the eyes with clean water,
and immediately seek medical attention. Otherwise, it may injure eyes.
If the battery gives off strange odor, generates heat, becomes discolored or deformed, or in any way appear abnormal during use,
recharging or storage, immediately remove it from the device or battery charger and stop using it.
In case the battery terminals are dirty, clean the terminals with a dry cloth before use.
Otherwise poor performance may occur due to the poor connection with the instrument.
Be aware of discarded batteries may cause fire or explosion; tape the battery terminals to insulate them
Standard packaging for 3.7V lithium polymer battery pack
Why Choose us:
R&D
Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.
We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
|
|
