Solar Energy Storage Batteries

KC IEC62133 6000mAh 3.2V Lifepo4 Cylindrical Cell with 2000 Cycles for Solar Storage and EV

All Category

Solar Energy Storage Batteries

Rechargeable Lithium Batteries

Portable Power Station

Mrs. Linda

linda@szgpebattery.com

+86 15817210994

Contact Now

KC IEC62133 6000mAh 3.2V Lifepo4 Cylindrical Cell with 2000 Cycles for Solar Storage and EV

Model Number:	IFR32700
MOQ:	500pieces
Packaging Details:	Bulk packing
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

KC,UN38.3, MSDS, IEC62133, RoHS

Nominal Voltage:

Nominal Capacity:

6.0 Ah

Cell Size:

32.2±0.3 Mm (Diameter), 70.5±0.3 Mm (Height)

Cell Weight:

141±5 G

Cycle Life:

≥2000 Cycles

Operating Temperature:

0~60°C (Charging), -5~60°C (Discharging)

Supply Ability:

40'000Pieces daily

Highlight:

32700 Lithium Battery Cell

7ah Lithium Battery Cell

6ah Lithium Battery Cell

Product Description

KC IEC62133 6Ah 7Ah Rechargeable 3.2V 6000mAh Lithium Battery Cell 32700 Deep Cycle LiFePO4 Cylindrical Cell

32700 3.2V 6Ah 7Ah LiFePO4 Cylindrical Battery Cell 32650 for Fishing Boat, Camping Car, Solar Storage

Technical Specifications

Item	Condition/Note	Parameter
Nominal Capacity	0.5C discharge capacity	6.0 Ah
Nominal Voltage		3.2 V
AC Impedance	5%SOC test at 1000 Hz	≤8.0mΩ
Cell Size	Cell Diameter	32.2±0.3 mm Max. 32.5 mm
Cell Height		70.5±0.3 mm Max. 70.8mm
Cell Weight		141± 5 g
End-of-charge Voltage	CC Mode	3.65 V
End-of-charge Current	CV Mode	0.3A
Charging Method	Standard Charging	0.5C at CC/CV
Fast Charging		1C at CC/CV
Cycle Life	0.5C	≥2000 cycles
Operating Temperature Range	Charging Temperature	0~60 °C
Discharging Temperature		-5~ 60°C
Storage Temperature		25±5°C

Other LiFePO4 Rechargeable Battery Cells

Model No.	Nominal Voltage	Typical Capacity	Size	Charge Rate	Discharge Rate	Weight(g)	Cycle life (80% DOD)
IFR10440	3.2V	200mAh	10.3*44.2	0.2-0.5C	0.2-3C	7	≧2000
IFR14430	3.2V	400mAh	14.2*43	0.2-0.5C	0.2-3C	13	≧2000
IFR14500	3.2V	600mAh	14.2*50.2	0.2-0.5C	0.2-3C	18	≧2000
IFR16340	3.2V	400mAh	16.2*34.2	0.2-0.5C	0.2-3C	13	≧2000
IFR18500	3.2V	1000mAh	18.1*50.2	0.2-0.5C	0.2-3C	34	≧2000
IFR18650	3.2V	1500mAh	18.5*65.3	0.2-0.5C	0.2-3C	42	≧2000
IFR18650	3.2V	1800mAh	18.5*65.3	0.2-0.5C	0.2-3C	62	≧2000
IFR22650	3.2V	1800mAh	22.5*65.3	0.2-0.5C	0.2-3C	64	≧2000
IFR26650	3.2V	3400mAh	26.5*65.3	0.2-0.5C	0.2-3C	85	≧2000
IFR26650	3.2V	3600mAh	26.5*65.3	0.2-0.5C	0.2-3C	90	≧2000
IFR26650	3.2V	4000mAh	26.5*65.3	0.2-0.5C	0.2-3C	90	≧2000
IFR32700	3.2V	6000mAh	32.5*65.3	0.2-0.5C	0.2-3C	150	≧2000

Solar Storage Battery Applications

Voltage	Typical Capacity	Charge	Discharge	Dimension(mm)	Weight(Kg)
12V	10AH	0.2C-2C	0.2C-2C	1509265	1.6
12V	50AH	0.2C-2C	0.2C-2C	195165175	9.5
12V	100AH	0.2C-2C	0.2C-2C	330175220	19
12V	200AH	0.2C-2C	0.2C-2C	525240215	30
24V	10AH	0.2C-2C	0.2C-2C	18177175	4.5
24V	50AH	0.2C-2C	0.2C-2C	330175220	18
48V	50AH	0.2C-2C	0.2C-2C	522237215	33
48V	75AH	0.2C-2C	0.2C-2C	522237215	42
48V	100AH	0.2C-2C	0.2C-2C	350540160	52

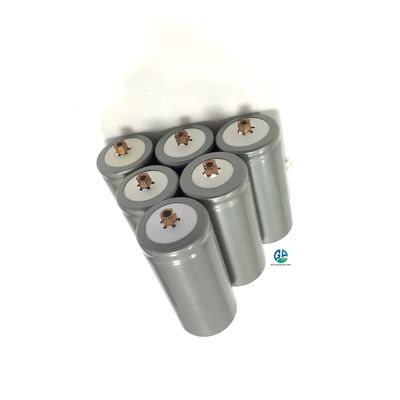

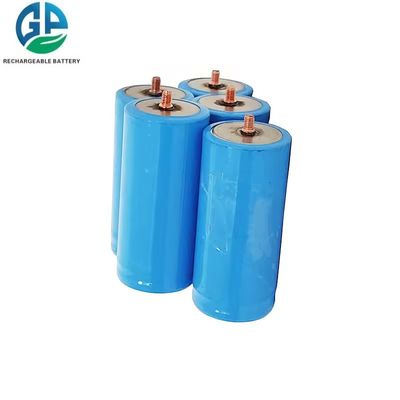

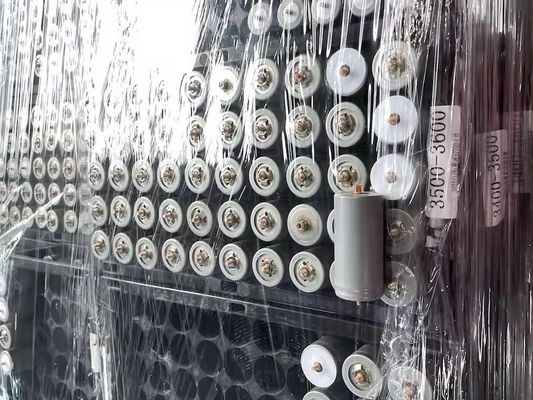

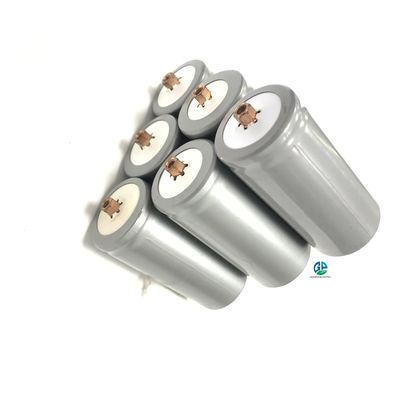

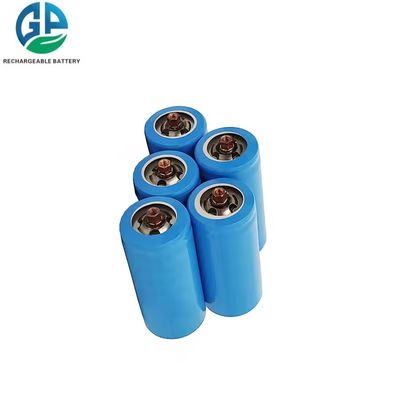

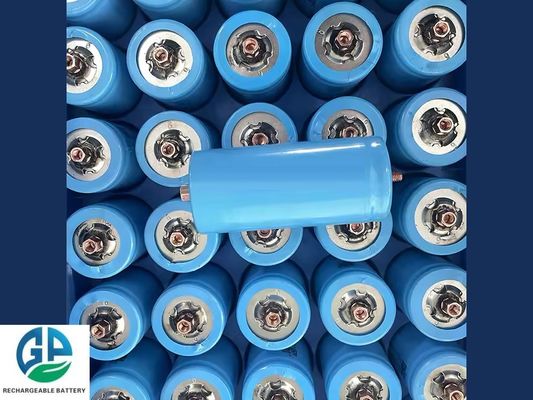

Product Images

Frequently Asked Questions

Can I use Lithium batteries mixing with other battery types?

If different types of batteries are used together, or new batteries are used with old ones, the difference in characteristics of voltage, capacity, etc. may cause over-discharge of the battery which is exhausted first, leading to swelling, bursting or fire.

What will happen if the batteries with different capacity are packed together?

If the batteries with different capacity or new and old batteries are used together, leakage, zero voltage and so on might happen. If the batteries are rechargeable and are being charged, some batteries are overcharged and other batteries is not in full charged state. During the discharge, some batteries cannot discharge fully and other batteries might over discharge. This way, the battery will be damaged.

What are the possible reasons for zero voltage or low voltage of the battery pack?

Short circuit or open circuit of the connector or wrong connection, de-soldering or cold solder joint between the batteries and lead, wrong connection between the batteries.

What are the possible reasons if the rechargeable battery or rechargeable battery pack cannot be charged?

The battery is zero voltage or there is battery with zero voltage in the battery pack.

Cautions and Warnings for Using Lithium Battery

Don't immerse the battery in water.
Don't use and leave the battery near a heat source such as fire or heater.
When charging, use a battery charger specifically for that purpose.
Don't reverse the positive and negative terminals.
Don't connect the battery to an electrical outlet directly.
Don't discard the battery in fire or heater.
Don't connect the positive and negative terminal directly with metal objects.
Don't transport and store the battery together with metal objects such as necklaces, hairpins.
Don't strike, throw or trample the battery.
Don't pierce the battery with a nail or other sharp object.

Why Choose Us

Technology

All-weather applicability (-30~60℃)

Highly safe battery design technology with the newest electrolyte and separator technology applied

Full Coverage of Battery Variety: Lithium ion Cylindrical battery, lithium polymer battery, LiFePO4 battery, Solar Energy Storage battery pack, square aluminum shell, Primary Battery, etc.

R & D

Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.

Quality Control

Certificates

CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.

Factory Tour

Shenzhen Gold Power Energy Co., Ltd is one of the leading battery suppliers in China. We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery, and customized battery pack since 2001.
