KC UL Approved 3.7V 1800mAh Li Polymer Battery with Overcharge Protection

All Category

Solar Energy Storage Batteries

Rechargeable Lithium Batteries

Portable Power Station

Mrs. Linda

linda@szgpebattery.com

+86 15817210994

Contact Now

KC UL Approved 3.7V 1800mAh Li Polymer Battery with Overcharge Protection

Brand Name:	GPE
Model Number:	LP605068
MOQ:	3000

Detail Information

Product Description

Detail Information

Place of Origin:

Certification:

KC, UN38.3, MSDS, IEC62133, RoHS

Nominal Voltage:

Nominal Capacity:

1800mAh

Dimensions:

4(T)*50(W)*80/85(L)mm

Weight:

Max Charge Current:

900mA(0.5C)

Max Discharge Current:

1800mA(1C)

Highlight:

1800mah li polymer battery

3.7 v li polymer battery

KC UL approved li polymer battery

Product Description

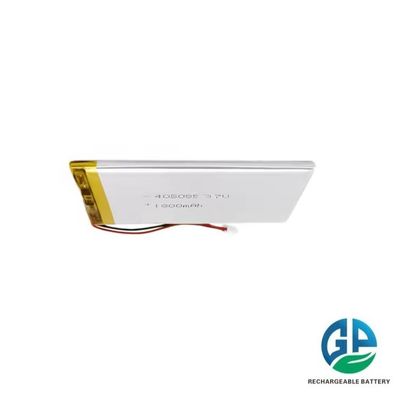

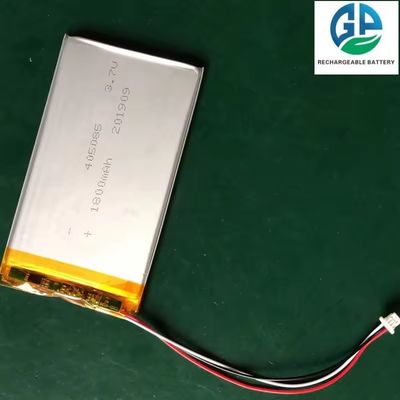

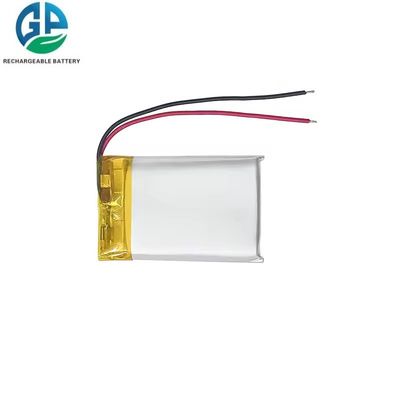

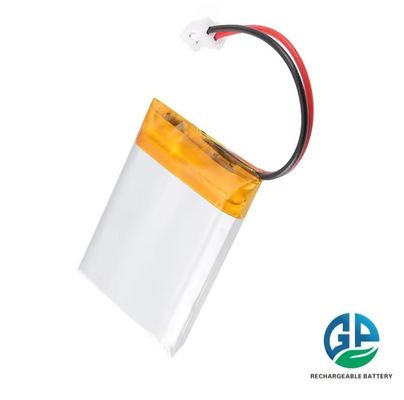

KC UL Approved Li Polymer Battery 3.7 V 1800mah 405085 Lion Polymer Battery Pack

Li Polymer Battery Production Process

Lipo batteries, also known as lithium polymer or lithium-ion polymer batteries, are rechargeable batteries that use a polymer electrolyte instead of a liquid one. The production process involves several key steps:

Material Preparation: Preparing necessary materials including polymer electrolyte, lithium-ion cathode material, graphite anode material, current collectors, and separators.
Cathode and Anode Preparation: Coating cathode and anode materials onto current collectors using techniques like doctor blade coating or slot die coating.
Drying and Pressing: Drying coated films to remove solvents and pressing to increase density and improve adhesion.
Separator Coating: Coating porous polymer separator with polymer electrolyte solution to allow lithium ion passage while insulating electrodes.

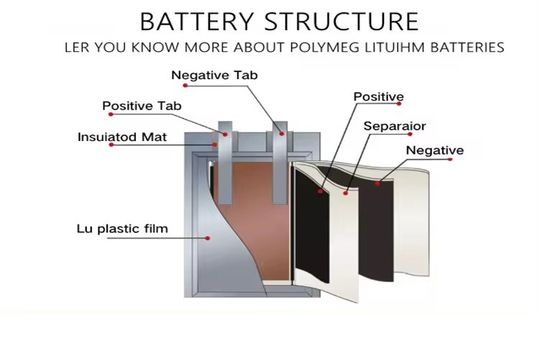

Assembly: Stacking cathode, separator, and anode layers together and wrapping in protective outer layer.
Injection Molding: Placing wrapped battery stack into mold and injecting with molten polymer material to form protective case.
Formation and Aging: Charging and discharging battery several times to activate electrodes and stabilize electrolyte, followed by aging period.
Testing and Quality Control: Testing battery for capacity, voltage, impedance, and other critical parameters to ensure reliability.

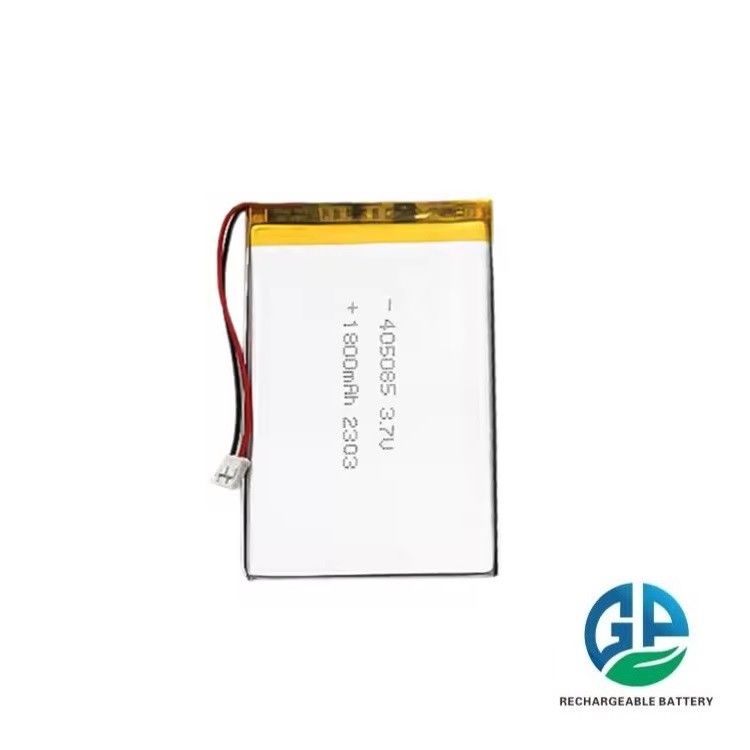

405085 Lithium Polymer Battery Pack Specifications

Battery Type	Lithium polymer rechargeable battery
Model	LP405080/LP405085
Nominal Voltage	3.7V
Nominal Capacity	1800mAh
Dimensions	4(T)50(W)80/85(L)mm
Approx Weight	36g
Charge Info	Cut-off Voltage: 4.20V±0.05V Standard Charge Current: 360mA(0.2C) Max Charge Current: 900mA(0.5C)
Discharge Info	Discharge Cut-off Voltage: 3.0V Standard Discharge Current: 360mA(0.2C) Max Constant Discharge Current: 1800mA(1C)
Operating Temperature	Standard Charge: 0~+45℃ Standard Discharge: -20~+60℃

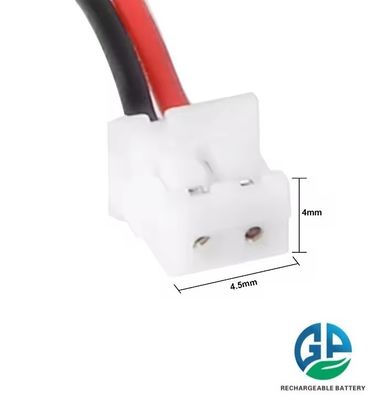

Appearance/Connection	Any wires length, connector P/N, or with PVC, label, battery packs available
Certifications	CE, ROHS, UN38.3, MSDS
Payment Terms	TT/Paypal/Western Union

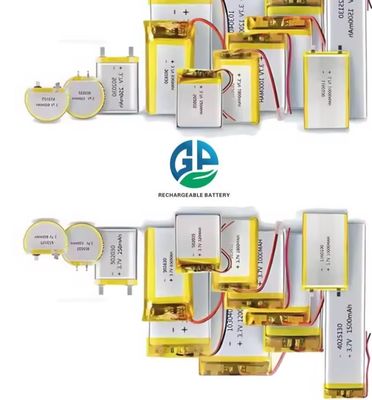

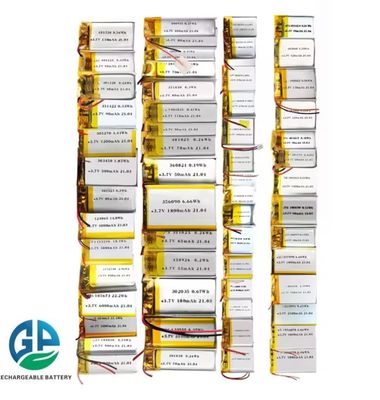

Other KC Certified Lithium Polymer Batteries

Model	Voltage	Capacity	Certificates
252940	3.7V	260mAh	UL/CB/KC/CE/FCC/ROHS/UN38.3/MSDS
301318	3.7V	50mAh	KC/CB/UN38.3/MSDS
301525	3.7V	80mAh	CB/KC/UN38.3
302540	3.7V	280mAh	KC/CE/FCC/ROHS/UN38.3/MSDS
303030	3.7V	250mAh	UL/KC/IEC62133/CE/ROHS/UN38.3/MSDS
303450	3.7V	500mAh	KC/CE/80℃ high temperature report/CQC

* Additional models available - contact for complete product listing

Frequently Asked Questions

Q1: What is GPE Li Polymer Battery?

A1: GPE Li Polymer Battery is a rechargeable battery with a combination of lithium and polymer material. It offers a high energy density, long cycle life and high safety performance.

Q2: What advantages does GPE Li Polymer Battery have?

A2: GPE Li Polymer Battery has many advantages, such as lighter weight, higher energy density, excellent charge/discharge performance, wide temperature range, and better safety performance.

Q3: What are the applications of GPE Li Polymer Battery?

A3: GPE Li Polymer Battery can be used in a wide range of applications, including consumer electronics, medical devices, power tools, and electric vehicles.

Q4: What are the safety features of GPE Li Polymer Battery?

A4: GPE Li Polymer Battery is designed with multiple safety features, such as over-charge protection, over-discharge protection, over-current protection, and short-circuit protection.

Q5: What is the life cycle of GPE Li Polymer Battery?

A5: The life cycle of GPE Li Polymer Battery is up to 500 cycles (charge and discharge). The capacity of battery will decrease slightly after each cycle, but it will still remain at a high level.

Tags:

3.7 V 80mah Lipo

2000mAh Li Polymer Battery Pack

501020 Li Poly Battery

Products Details

Home > Products >

Li Polymer Battery

KC UL Approved 3.7V 1800mAh Li Polymer Battery with Overcharge Protection

All Category

Li Polymer Battery

Lithium Polymer Battery Pack

Lithium Ion Battery Pack

Rechargeable Battery Pack

LiFePO4 Battery Pack

18650 Lithium Battery

Lithium Battery Cells

Solar Energy Storage Batteries

Rechargeable Lithium Batteries

LiFePO4 Battery Cell

12V Battery Pack

Forklift Battery

Solar Light Batteries

Portable Power Station

KC UL Approved 3.7V 1800mAh Li Polymer Battery with Overcharge Protection

Brand Name:	GPE
Model Number:	LP605068
MOQ:	3000

Detail Information

Product Description

Detail Information

Place of Origin:

Brand Name:

GPE

Certification:

KC, UN38.3, MSDS, IEC62133, RoHS

Model Number:

LP605068

Nominal Voltage:

3.7V

Nominal Capacity:

1800mAh

Dimensions:

4(T)*50(W)*80/85(L)mm

Weight:

36g

Max Charge Current:

900mA(0.5C)

Max Discharge Current:

1800mA(1C)

Minimum Order Quantity:

3000

Highlight:

1800mah li polymer battery

3.7 v li polymer battery

KC UL approved li polymer battery

Product Description

KC UL Approved Li Polymer Battery 3.7 V 1800mah 405085 Lion Polymer Battery Pack

Li Polymer Battery Production Process

Material Preparation: Preparing necessary materials including polymer electrolyte, lithium-ion cathode material, graphite anode material, current collectors, and separators.
Cathode and Anode Preparation: Coating cathode and anode materials onto current collectors using techniques like doctor blade coating or slot die coating.
Drying and Pressing: Drying coated films to remove solvents and pressing to increase density and improve adhesion.
Separator Coating: Coating porous polymer separator with polymer electrolyte solution to allow lithium ion passage while insulating electrodes.
Assembly: Stacking cathode, separator, and anode layers together and wrapping in protective outer layer.
Injection Molding: Placing wrapped battery stack into mold and injecting with molten polymer material to form protective case.
Formation and Aging: Charging and discharging battery several times to activate electrodes and stabilize electrolyte, followed by aging period.
Testing and Quality Control: Testing battery for capacity, voltage, impedance, and other critical parameters to ensure reliability.

405085 Lithium Polymer Battery Pack Specifications

Battery Type	Lithium polymer rechargeable battery
Model	LP405080/LP405085
Nominal Voltage	3.7V
Nominal Capacity	1800mAh
Dimensions	4(T)50(W)80/85(L)mm
Approx Weight	36g
Charge Info	Cut-off Voltage: 4.20V±0.05V Standard Charge Current: 360mA(0.2C) Max Charge Current: 900mA(0.5C)
Discharge Info	Discharge Cut-off Voltage: 3.0V Standard Discharge Current: 360mA(0.2C) Max Constant Discharge Current: 1800mA(1C)
Operating Temperature	Standard Charge: 0~+45℃ Standard Discharge: -20~+60℃
Appearance/Connection	Any wires length, connector P/N, or with PVC, label, battery packs available
Certifications	CE, ROHS, UN38.3, MSDS
Payment Terms	TT/Paypal/Western Union

Other KC Certified Lithium Polymer Batteries

Model	Voltage	Capacity	Certificates
252940	3.7V	260mAh	UL/CB/KC/CE/FCC/ROHS/UN38.3/MSDS
301318	3.7V	50mAh	KC/CB/UN38.3/MSDS
301525	3.7V	80mAh	CB/KC/UN38.3
302540	3.7V	280mAh	KC/CE/FCC/ROHS/UN38.3/MSDS
303030	3.7V	250mAh	UL/KC/IEC62133/CE/ROHS/UN38.3/MSDS
303450	3.7V	500mAh	KC/CE/80℃ high temperature report/CQC

* Additional models available - contact for complete product listing

Frequently Asked Questions

Q1: What is GPE Li Polymer Battery?

A1: GPE Li Polymer Battery is a rechargeable battery with a combination of lithium and polymer material. It offers a high energy density, long cycle life and high safety performance.

Q2: What advantages does GPE Li Polymer Battery have?

A2: GPE Li Polymer Battery has many advantages, such as lighter weight, higher energy density, excellent charge/discharge performance, wide temperature range, and better safety performance.

Q3: What are the applications of GPE Li Polymer Battery?

A3: GPE Li Polymer Battery can be used in a wide range of applications, including consumer electronics, medical devices, power tools, and electric vehicles.

Q4: What are the safety features of GPE Li Polymer Battery?

A4: GPE Li Polymer Battery is designed with multiple safety features, such as over-charge protection, over-discharge protection, over-current protection, and short-circuit protection.

Q5: What is the life cycle of GPE Li Polymer Battery?

A5: The life cycle of GPE Li Polymer Battery is up to 500 cycles (charge and discharge). The capacity of battery will decrease slightly after each cycle, but it will still remain at a high level.

Tags:
