| Brand Name: | GPE |
| Model Number: | 401430 |
| MOQ: | 2000pieces |
| Packaging Details: | Bulk packing |
| Payment Terms: | T/T |

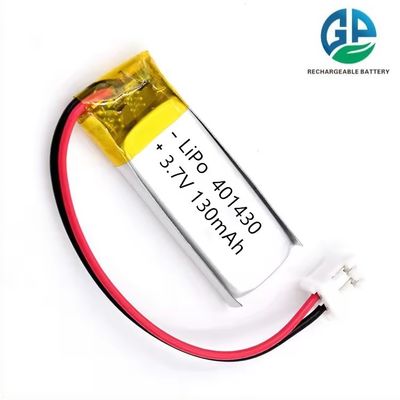

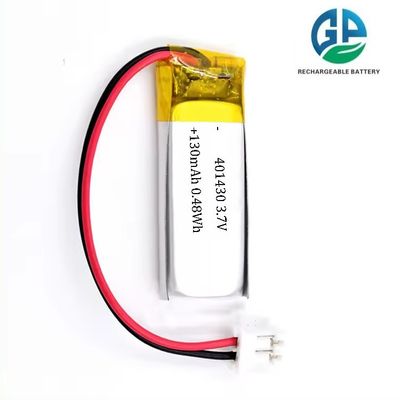

High Quality 401430 130mAh Lithium Polymer Battery Pack 3.7V rechargeable lithium polymer battery
|
Voltage
|
3.7V
|
Composed Type
|
Cell+PCM+Wires+Connector
|
|
Capacity
|
130mAh
|
OEM/ODM
|
Available
|
|
Energy
|
0.48Wh
|
Warranty
|
One year
|
|
Size
|
4*14*30mm
|
Application
|
Voice Translator
|
| Item | Rating | Note | ||
| 3.1 Capacity | Typical | 130mAh |
Discharge:0.2CmA cut off Voltage:3.0V for cell |
|
| Minimum | 130mAh | |||
| 3.2 Nominal Voltage | Average 3.7V |
Discharge:0.2CmA cut off Voltage:3.0V for cell |
||
| 3.3 AC Impedance Resistance | ≤30mΩ | |||
| 3.4 Discharge Cut-off Voltage | 3.00V | |||
| 3.5 Charge Current | 130mA | Standard Charge | ||
| 3.6 Charge Voltage | 4.2V | |||
| 3.7 Max. Charge Voltage | 4.23V | |||
| 3.8 Charge Time | Approx 2.5h | Charge: 1.0CmA | ||
| 3.9 Max. Charge Current | 130mA | 1.0CmA | ||
| 3.10 Max. Discharge Current | 130mA | |||
| 3.11 Weight | Approx 6g | |||
|
3.12 Operating Temperature |
Charge | 0~+45°C | ||
| Discharge | -20~+60°C | |||
|
3.13 Storage Temperature |
less than 1 month | -20~+45°C |
Recommended storage temperature: 20°C,at the shipment state |
|

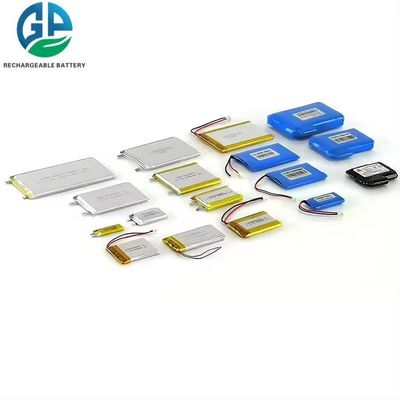

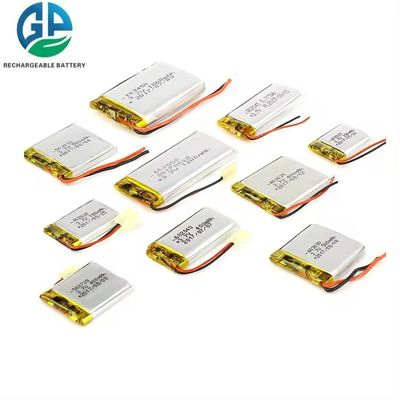

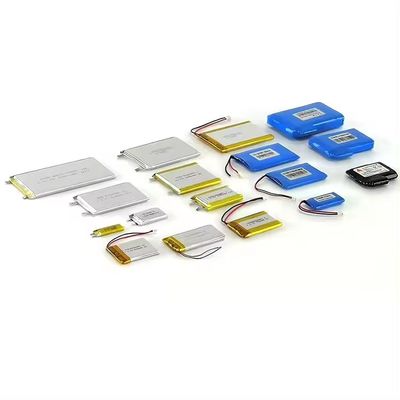

Other hot-sale Li polymer battery pack , with stocks can accept mini order:

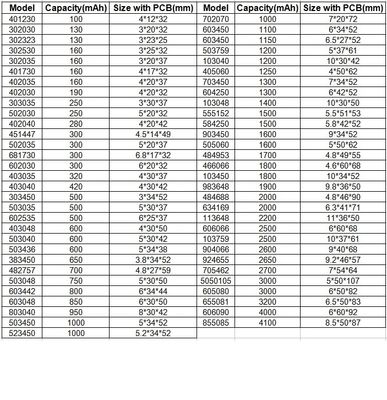

Shenzhen Gold Power Energy have over 1000models lithium polymer batteries.
Capacity range from 20mAh to 5000mAh, can meet your different kinds of applications.
Following are some of hot-sale models for your reference.

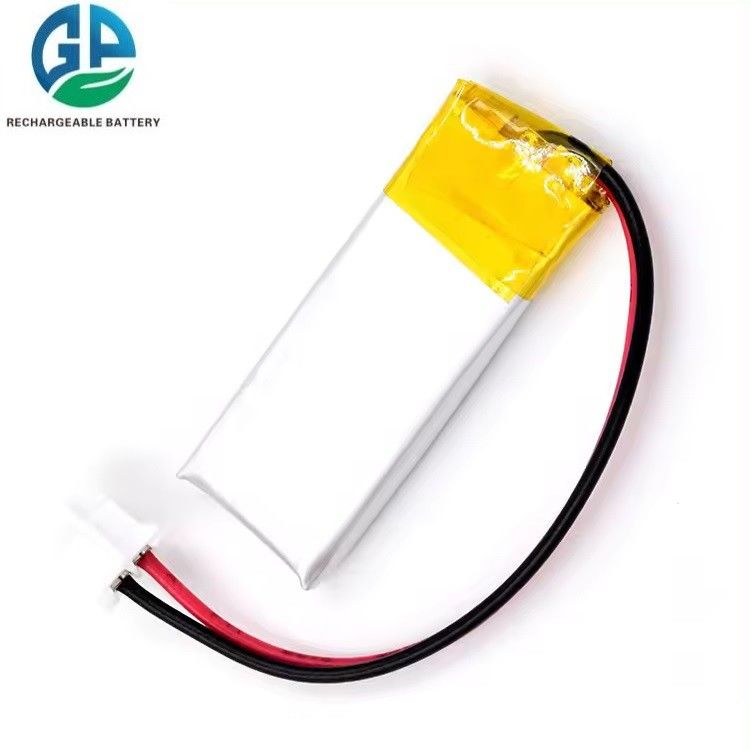

Ultra small Lithium ion Polymer 3.7V 401430 130mah li polymer battery pack for smart Watch
Standard packaging for 3.7V 7.4V lithium polymer battery pack
FAQ:
Q: Can I use Lithium batteries mixing with other battery types?
A: If different types of batteries are used together, or new batteries are used with old ones, the difference in characteristics of voltage, capacity, etc. may cause over-discharge of the battery which is exhausted first, leading to swelling, bursting or fire.
Q: What will happen if the batteries with different capacity are packed together?
A: If the batteries with different capacity or new and old batteries are used together, leakage, zero voltage and so on might happen. If the batteries are rechargeable and are being charged, some batteries are overcharged and other batteries is not in full charged state. During the discharge, some batteries cannot discharge fully and other batteries might over discharge. This way, the battery will be damaged.
Q: What are the possible reasons for zero voltage or low voltage of the battery pack?
A: Short circuit or open circuit of the connector or wrong connection, de-soldering or cold solder joint between the batteries and lead, wrong connection between the batteries.
Q: What are the possible reasons if the rechargeable battery or rechargeable battery pack cannot be charged?
A: The battery is zero voltage or there is battery with zero voltage in the battery pack.
There is wrong connection inside the battery pack.
There is abnormally of electronic components and/or PCB inside the battery pack.
There is failure in charger.
Outer element causes the charging efficiency to be too low, such as extremely low or high temperature.
Cautions and Warnings for Using Lithium Battery
1. Don’t immerse the battery in water.
2. Don’t use and leave the battery near a heat source such as fire or heater.
3. When charging, use a battery charger specifically for that purpose.
4. Don’t reverse the positive and negative terminals.
5. Don’t connect the battery to an electrical outlet directly.
6. Don’t discard the battery in fire or heater.
7. Don’t connect the positive and negative terminal directly with metal objects.
8. Don’t transport and store the battery together with metal objects such as necklaces, hairpins.
9. Don’t strike, throw or trample the battery.
Don’t pierce the battery with a nail or other sharp object.
Why Choose us:
Technology
R&D
Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.
Quality Control
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.
We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
|
|
