Product Details:
|
| Battery Type: | Li Polymer Battery Pack | Voltage: | 3.7V |
|---|---|---|---|
| Capacity: | 630mAh | Cycle Life: | 500times |
| Weight: | 7.5g | Application: | Beauty Device |
| SIZE: | 7.2x19x44mm |

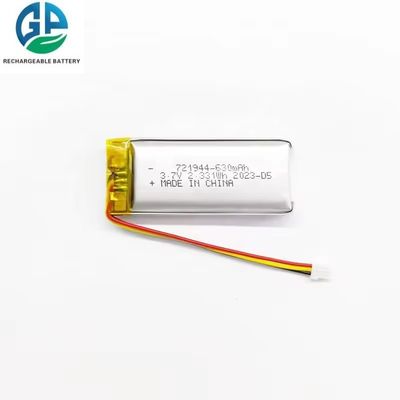

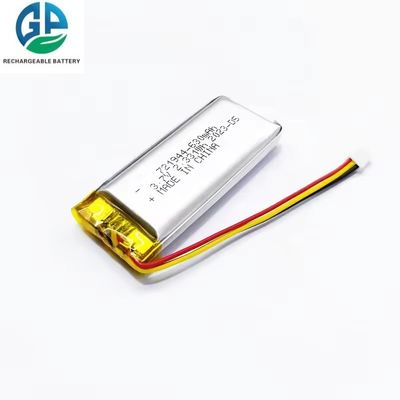

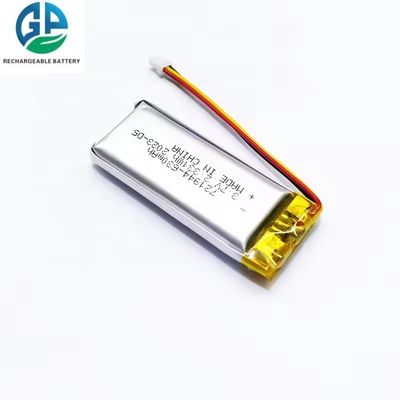

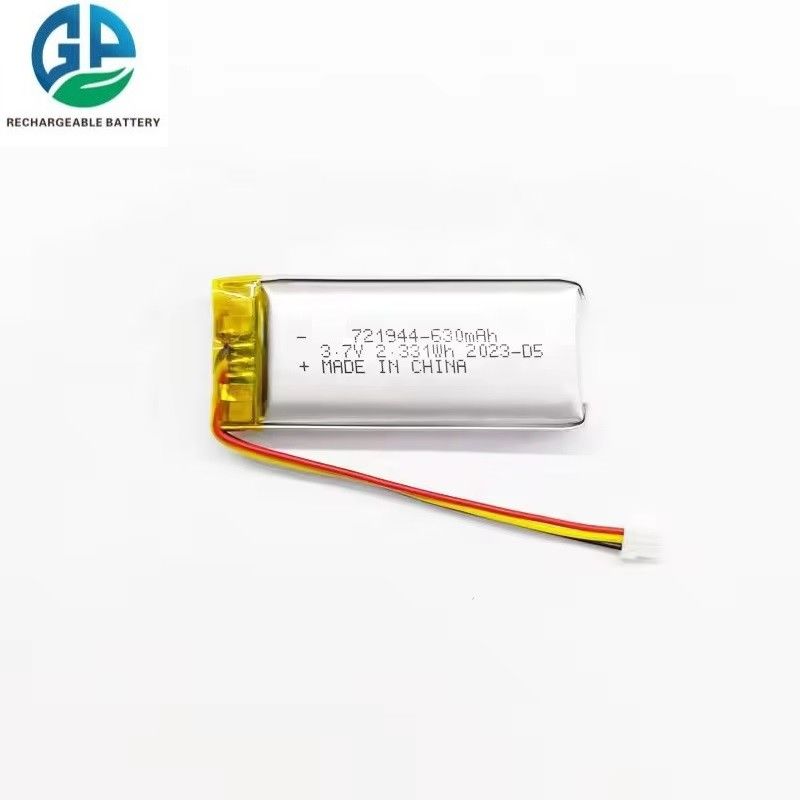

IEC62133 KC Lithium Polymer Battery Pack 721944 3.7V 630mAh LiPo
Do not submerge the battery in the water.
Do not mix fresh batteries with used batteries.
Do not mix batteries with metal stuff together.
Do not insert batteries with the (+) and (-) reversed.
Do not disassemble, dispose in fire, heat or short circuit.
Do not put the battery in a charger or equipment with wrong terminals connected.
Specification:
|
Model
|
721944
|
|
Material
|
Lithium ion polymer battery
|
|
Normal Capacity(0.2C)
|
630mAh
|
|
Minimum Capacity(0.2C)
|
610mAh
|
|
Energy:
|
2.33wh
|
|
Normal Voltage:
|
3.7V
|
|
Delivery Voltage:
|
3.7V ~ 3.9V
|
|
Standard Charge Method:
|
0.2C CC(constant current) charge to 4.2V, then CV(constant voltage4.2V) charge till charge current decline to ≦ 0.02C
|
|
Max Charging Current:
|
1C
|
|
Max Discharging Current:
|
1C
|
|
Over-Discharging Current:
|
3.0V
|
|
|
Charging: 10℃ ~ 50℃
|
|
Discharging: -10℃ ~ 50℃
|
|
|
Cell Exterior Temperature:
|
Charging: 10℃ ~ 45℃
|
|
Discharging: -10℃ ~ 50℃
|
|
|
Storage Tem ( At 50% SOC and specified temp, recoverable capacity in % & time):
|
-10℃ ~ 45℃ (1months ≥ 90%)
|
|
-10℃ ~ 35℃ (3months ≥ 85%)
|
|
|
-10℃ ~ 25℃ (12months ≥ 80%)
|
|
|
Cycle Life(at 15℃ ~ 35℃ )
|
≥ 300 times, more than 80% at 0.5C discharge
|
|
Pack Weight
|
Approx. 7.5g
|
KC IEC62133 3.7 volt li polymer rechargeable batteries 630mAh customized li ion polymer battery
Li polymer battery pack widely used in:
GPS, POS Terminal, Wireless headset, Communication Tool, Heating Blanket Smart Phone
Learning Tools, Medical Device, Personal Care Scanner Vaccum Packaging, Lamp, Monitor
Portable DVD, Smart Home, Tablet PC, Pulse Monitoring, Moblie, Power Bank, Camera
Shenzhen Gold Power Energy have over 1000models lithium polymer batteries.
Capacity range from 20mAh to 5000mAh, can meet your different kinds of applications.
Following are some of hot-sale models for your reference.
| Model | Cell Dimension | With PCM Dimension | Capacity |
| 302025 | 3.0*20*25mm | 3.2*21*27.5mm | 3.7V 100mAh |
| 302530 | 3.0*25*30mm | 3.2*26*32.5mm | 3.7V 180mAh |
| 401824 | 4.0*18*24mm | 4.2*19*26.5mm | 3.7V 180mAh |
| 402525 | 4.0*25*25mm | 4.2*26*27.5mm | 3.7V 200mAh |
| 483450 | 4.8*34*50mm | 5.0*35*52.5mm | 3.7V 850mAh |
| 502030 | 5.0*20*30mm | 5.2*21*32.5mm | 3.7V 240mAh |
| 502525 | 5.0*25*25mm | 5.2*26*27.5mm | 3.7V 180mAh |
| 503030 | 5.0*30*30mm | 5.2*31*32.5mm | 3.7V 430mAh |
| 523450 | 5.2*34*50mm | 5.4*35*52.5mm | 3.7V 1000mAh |
| 553444 | 5.5*34*44mm | 5.7*35*46.5mm | 3.7V 850mAh |
| 553640 | 5.5*36*40mm | 5.7*37*42.5mm | 3.7V 850mAh |
| 553759 | 5.5*37*59mm | 5.7*38*61.5mm | 3.7V 1400mAh |
| 602030 | 6.0*20*30mm | 6.2*21*32.5mm | 3.7V 300mAh |
| 602240 | 6.0*22*40mm | 6.2*23*42.5mm | 3.7V 500mAh |
| 602535 | 6.0*25*35mm | 6.2*26*37.5mm | 3.7V 500mAh |
| 602663 | 6.0*26*63mm | 6.2*27*65.5mm | 3.7V 1000mAh |
| 603030 | 6.0*30*30mm | 6.2*31*32.5mm | 3.7V 520mAh |
| 603040 | 6.0*30*40mm | 6.2*31*42.5mm | 3.7V 750mAh |
| 603048 | 6.0*30*48mm | 6.2*31*50.5mm | 3.7V 900mAh |
| 603450 | 6.0*34*50mm | 6.2*35*52.5mm | 3.7v 1200mAh |
| 656090 | 6.5*60*90mm | 6.5*60*92.5mm | 3.7V 5000mAh |
| 702040 | 7.0*21*40mm | 7.2*22*42.5mm | 3.7V 500mAh |
| 753048 | 7.5*30*48mm | 7.7*31*50.5mm | 3.7V 1200mAh |
| 803035 | 8.0*30*35mm | 8.2*31*37.5mm | 3.7V 800mAh |
| 855465 | 8.5*54*65mm | 8.5*54*65mm | 3.7V 4000mAh |
| 863040 | 8.6*30*40mm | 8.8*30*42.5mm | 3.7V 1000mAh |
| 904060 | 9*40*60mm | 9.2*40*62.5mm | 3.7V 2500mAh |
| 883760 | 8.8*37*60mm | 9*57*51.6mm | 3.7V 2000mAh |
| 103048 | 10.2*30*48mm | 10.2*30*50.5mm | 3.7V 1500mAh |
| 103040 | 10.2*30*40mm | 10.2*30*42.5mm | 3.7V 1200mAh |
| 114261 | 11*42*61mm | 11*42*63.5mm | 3.7V 3400mAh |
| 122773 | 12*27*73mm | 12*27*75.5mm | 3.7V 2400mAh |
Lithium Polymer battery pack 3.7V 630mAh 721944 li polymer Rechargeable battery

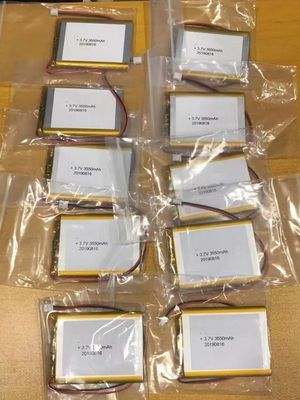

Standard packaging for 3.7V 7.4V lithium polymer battery pack
Why Choose us:
Technology
R&D
Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.
Quality Control
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.

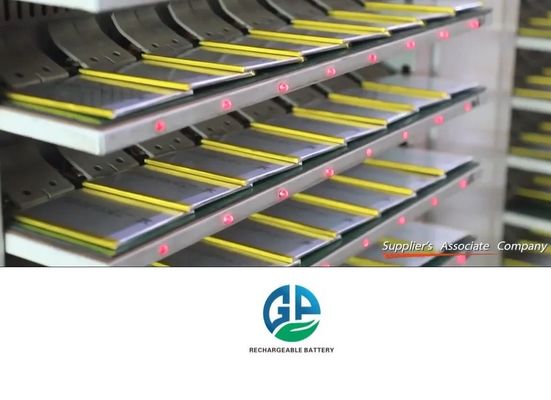

Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.
We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
