Product Details:
|
| Voltage: | 3.7V | Capacity: | 800mAh |
|---|---|---|---|
| Cycle Life: | 500times | Size: | 6.0x26x48mm(T*W*L) |
| Weight: | 14.4g | Battery Type: | Lithium Polymer Battery Pack |
| MOQ: | 3000pcs | Warranty: | 1 Year |
| Lead Time: | 15-20days | PCM: | Yes |
| Connector: | Option | ||
| High Light: | 602648 800mah Lipo Battery,602648 Li Poly Rechargeable Battery,3.7V Li Poly Rechargeable Battery |
||
Lithium Polymer Battery Pack 602648 Rechargeable Li Ion 3.7v 800mah Lipo Battery
|
Description: 800mAh li-polymer batteries battery li ion 602648 3.7v
|
|||
|
Battery Type
|
Li-Polymer
|
Material
|
LiCoO2/NMC
|
|
PN
|
602648
|
Voltage/Capacity
|
3.7V/800mAh
|
|
Weight
|
Approx 14.4g
|
Shape
|
Soft pack
|
|
Dimensions
|
8.1(T)x25.5(W)x42.5(L)mm MAX
|
Package
|
Inner Tray + Carton
|
|
Cycle Life
|
≥500 times
|
Warranty
|
12 months
|
|
Charge Info
|
Charge Cut-off Voltage : 4.20V±0.05V
|
||
|
Charging method: CC/CV
|
|||
|
Standard Charge Current : 160 mA (0.2C)
|
|||
|
Max Charge Current: 800mA (1.0C)
|
|||
|
Discharge Info
|
Discharge Cut-off Voltage : 3.0V
|
||
|
Max Constant Discharge Current : 800mA/Customized
|
|||
|
Working
Temperature
|
Standard Charge: 0~+40℃
|
||
|
Standard Discharge: -20~+60℃
|
|||
|
Production Lead Time
|
In stock: 5-7 working days; Out of stock: 20-25 working days
|
||
GPS, POS Terminal, Wireless headset, Communication Tool, Heating Blanket Smart Phone
Learning Tools, Medical Device, Personal Care Scanner Vaccum Packaging, Lamp, Monitor
Portable DVD, Smart Home, Tablet PC, Pulse Monitoring, Moblie, Power Bank, Camera
Other hot-sale Li-pol battery pack models:
Shenzhen Gold Power Energy have over 1000models lithium polymer batteries.
Capacity range from 20mAh to 5000mAh, can meet your different kinds of applications.
Following are some of hot-sale models for your reference.
| Model | Dimension | With PCM Dimension | Capacity |
| 302025 | 3.0*20*25mm | 3.2*21*27.5mm | 3.7V 100mAh |
| 302530 | 3.0*25*30mm | 3.2*26*32.5mm | 3.7V 180mAh |
| 401824 | 4.0*18*24mm | 4.2*19*26.5mm | 3.7V 180mAh |
| 402525 | 4.0*25*25mm | 4.2*26*27.5mm | 3.7V 200mAh |
| 483450 | 4.8*34*50mm | 5.0*35*52.5mm | 3.7V 850mAh |
| 502030 | 5.0*20*30mm | 5.2*21*32.5mm | 3.7V 240mAh |
| 502525 | 5.0*25*25mm | 5.2*26*27.5mm | 3.7V 180mAh |
| 503030 | 5.0*30*30mm | 5.2*31*32.5mm | 3.7V 430mAh |
| 523450 | 5.2*34*50mm | 5.4*35*52.5mm | 3.7V 1000mAh |
| 553444 | 5.5*34*44mm | 5.7*35*46.5mm | 3.7V 850mAh |
| 553640 | 5.5*36*40mm | 5.7*37*42.5mm | 3.7V 850mAh |
| 553759 | 5.5*37*59mm | 5.7*38*61.5mm | 3.7V 1400mAh |
| 602030 | 6.0*20*30mm | 6.2*21*32.5mm | 3.7V 300mAh |
| 602240 | 6.0*22*40mm | 6.2*23*42.5mm | 3.7V 500mAh |
| 602535 | 6.0*25*35mm | 6.2*26*37.5mm | 3.7V 500mAh |
| 602663 | 6.0*26*63mm | 6.2*27*65.5mm | 3.7V 1000mAh |
| 603030 | 6.0*30*30mm | 6.2*31*32.5mm | 3.7V 520mAh |
| 603040 | 6.0*30*40mm | 6.2*31*42.5mm | 3.7V 750mAh |
| 603048 | 6.0*30*48mm | 6.2*31*50.5mm | 3.7V 900mAh |
| 603450 | 6.0*34*50mm | 6.2*35*52.5mm | 3.7v 1050mAh |
| 702040 | 7.0*21*40mm | 7.2*22*42.5mm | 3.7V 500mAh |
| 753048 | 7.5*30*48mm | 7.7*31*50.5mm | 3.7V 1200mAh |
| 803035 | 8.0*30*35mm | 8.2*31*37.5mm | 3.7V 800mAh |

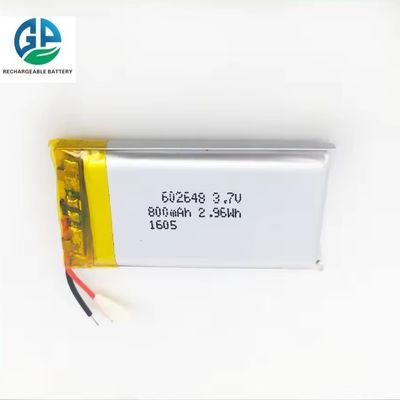

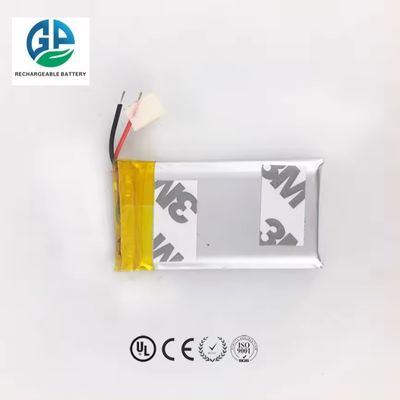

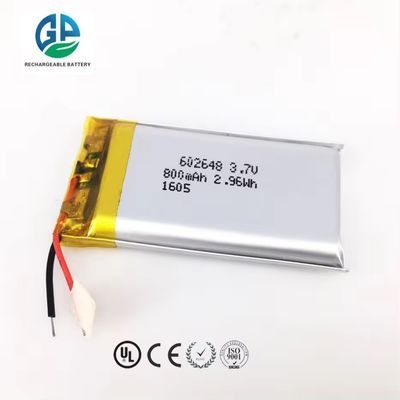

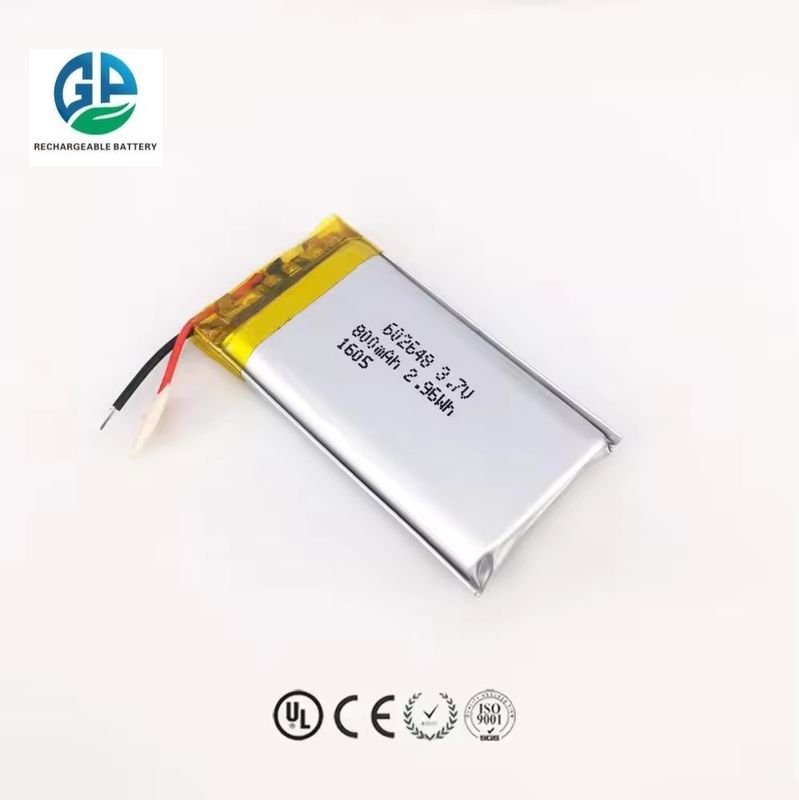

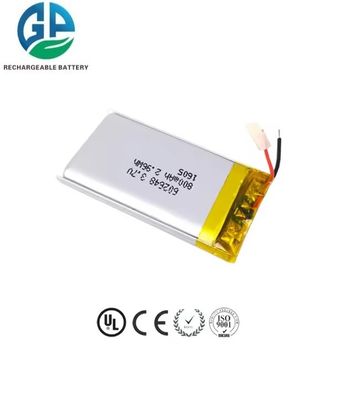

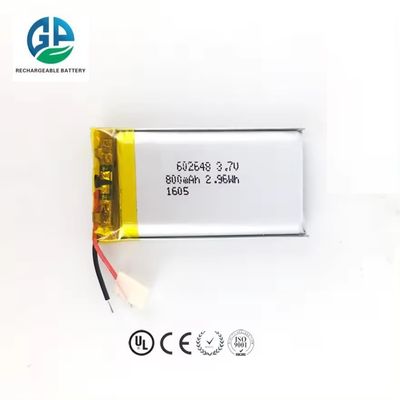

Detailed images Lithium polymer battery pack 602648 rechargeable Li-ion 3.7v 800mah lipo battery
Standard packaging for 3.7V 500mAh lithium polymer battery pack
Why Choose us:
Technology
R&D
Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.
Quality Control
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.
We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
