| Model Number: | LP1160100 |
| MOQ: | 2000pieces |
| Packaging Details: | Bulk packing |
| Payment Terms: | T/T |
1160100 3.7V 9Ah Rechargeable Lithium ion Polymer Battery Pack
|
Names
|
Specifications
|
|
Type
|
Lithium polymer battery
|
|
Nominal voltage
|
3.7V
|
|
Nominal Capacity
|
9000mAh
|
|
Dimension
|
11*60*100 mm
|
|
Mode
|
1160100
|
|
Max.charge current
|
1.0C
|
|
Max.discharge current
|
1.0C
|
|
Charge current
|
Standard Charging: 0.5C
Rapid charge: 1.0C |
|
Standard Charging method
|
0.5C CC(constant current)charge to 4.2V,
then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C |
|
Charging time
|
Standard Charging: 3.0 hours(Ref.)
Rapid charge: 2 hours(Ref.) |
|
Discharge cut-off voltage
|
2.45V~3.0V
|
|
Operating temperature
|
-20°C~+60 °C
|
|
Storage temperature
|
25°C
|
|
Weight
|
180g
|
| Model | Cell Dimension | With PCM Dimension | Capacity |
| 302025 | 3.0*20*25mm | 3.2*21*27.5mm | 3.7V 100mAh |
| 302530 | 3.0*25*30mm | 3.2*26*32.5mm | 3.7V 180mAh |
| 401824 | 4.0*18*24mm | 4.2*19*26.5mm | 3.7V 180mAh |
| 402525 | 4.0*25*25mm | 4.2*26*27.5mm | 3.7V 200mAh |
| 483450 | 4.8*34*50mm | 5.0*35*52.5mm | 3.7V 850mAh |
| 502030 | 5.0*20*30mm | 5.2*21*32.5mm | 3.7V 240mAh |
| 502525 | 5.0*25*25mm | 5.2*26*27.5mm | 3.7V 180mAh |
| 503030 | 5.0*30*30mm | 5.2*31*32.5mm | 3.7V 430mAh |
| 523450 | 5.2*34*50mm | 5.4*35*52.5mm | 3.7V 1000mAh |
| 553444 | 5.5*34*44mm | 5.7*35*46.5mm | 3.7V 850mAh |
| 553640 | 5.5*36*40mm | 5.7*37*42.5mm | 3.7V 850mAh |
| 553759 | 5.5*37*59mm | 5.7*38*61.5mm | 3.7V 1400mAh |
| 602030 | 6.0*20*30mm | 6.2*21*32.5mm | 3.7V 300mAh |
| 602240 | 6.0*22*40mm | 6.2*23*42.5mm | 3.7V 500mAh |
| 602535 | 6.0*25*35mm | 6.2*26*37.5mm | 3.7V 500mAh |
| 602663 | 6.0*26*63mm | 6.2*27*65.5mm | 3.7V 1000mAh |
| 603030 | 6.0*30*30mm | 6.2*31*32.5mm | 3.7V 520mAh |
| 603040 | 6.0*30*40mm | 6.2*31*42.5mm | 3.7V 750mAh |
| 603048 | 6.0*30*48mm | 6.2*31*50.5mm | 3.7V 900mAh |
| 603450 | 6.0*34*50mm | 6.2*35*52.5mm | 3.7v 1200mAh |
| 656090 | 6.5*60*90mm | 6.5*60*92.5mm | 3.7V 5000mAh |
| 702040 | 7.0*21*40mm | 7.2*22*42.5mm | 3.7V 500mAh |
| 753048 | 7.5*30*48mm | 7.7*31*50.5mm | 3.7V 1200mAh |
| 803035 | 8.0*30*35mm | 8.2*31*37.5mm | 3.7V 800mAh |
| 855465 | 8.5*54*65mm | 8.5*54*65mm | 3.7V 4000mAh |
| 863040 | 8.6*30*40mm | 8.8*30*42.5mm | 3.7V 1000mAh |
| 904060 | 9*40*60mm | 9.2*40*62.5mm | 3.7V 2500mAh |
| 883760 | 8.8*37*60mm | 9*57*51.6mm | 3.7V 2000mAh |
| 103048 | 10.2*30*48mm | 10.2*30*50.5mm | 3.7V 1500mAh |
| 103040 | 10.2*30*40mm | 10.2*30*42.5mm | 3.7V 1200mAh |
| 114261 | 11*42*61mm | 11*42*63.5mm | 3.7V 3400mAh |
| 122773 | 12*27*73mm | 12*27*75.5mm | 3.7V 2400mAh |

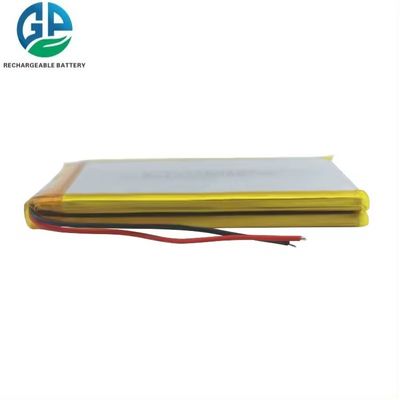

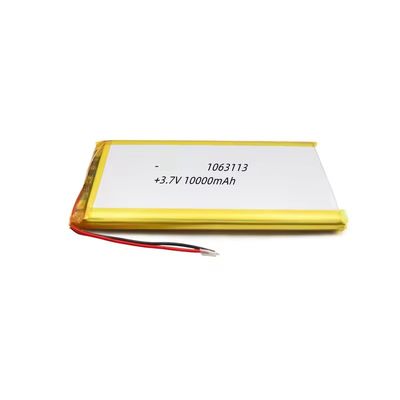

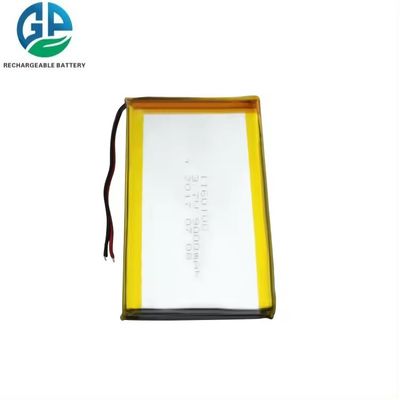

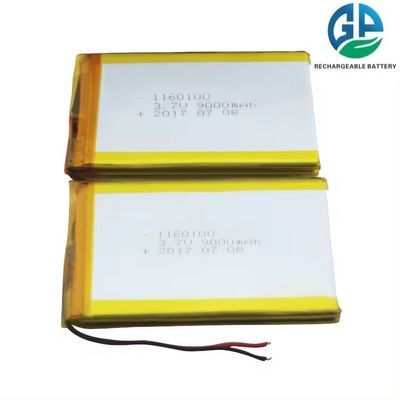

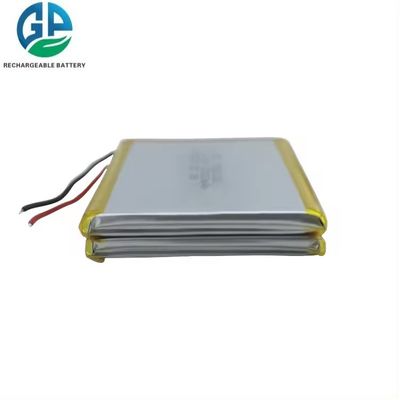

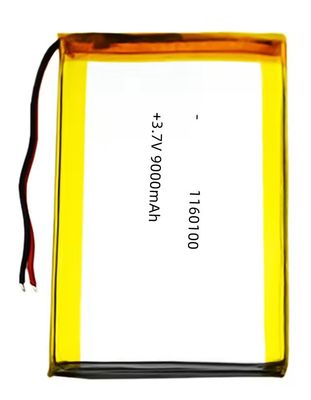

Images for Rechargeable li-Polymer battery 3.7V 9000mah lipo power bank battery
Standard packaging for 3.7V 7.4V lithium polymer battery pack
Why Choose us:
Technology
R&D
Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.
We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
|
|
