Model Number: | LP753048 |
MOQ: | 3000pieces |
Packaging Details: | Bulk packing |
Payment Terms: | T/T |
Battery model
|
753048 1200mah lithium polymer battery
|
Nominal voltage
|
3.7V
|
Minimum capacity
|
1200mah
|
Dimension with PCB
|
7.5*30*48mm
|
Continuous discharging current
|
1C
|
Peak discharging current
|
1C
|
Max charge current
|
1C
|
|
Charging: 0°C ~ 45°C
|
Discharging: -20°C ~60°C
|
|
Certificate
|
CE/IEC62133/MSDS/UN38.3
|
Cycle life
|
500 times
|
|
5-10 days for samples
|
20-30 days for production
|
Model | Dimension | With PCM Dimension | Capacity |
302025 | 3.0*20*25mm | 3.2*21*27.5mm | 3.7V 100mAh |
302530 | 3.0*25*30mm | 3.2*26*32.5mm | 3.7V 180mAh |
401824 | 4.0*18*24mm | 4.2*19*26.5mm | 3.7V 180mAh |
402525 | 4.0*25*25mm | 4.2*26*27.5mm | 3.7V 200mAh |
483450 | 4.8*34*50mm | 5.0*35*52.5mm | 3.7V 850mAh |
502030 | 5.0*20*30mm | 5.2*21*32.5mm | 3.7V 240mAh |
502525 | 5.0*25*25mm | 5.2*26*27.5mm | 3.7V 180mAh |
503030 | 5.0*30*30mm | 5.2*31*32.5mm | 3.7V 430mAh |
523450 | 5.2*34*50mm | 5.4*35*52.5mm | 3.7V 1000mAh |
553444 | 5.5*34*44mm | 5.7*35*46.5mm | 3.7V 850mAh |
553640 | 5.5*36*40mm | 5.7*37*42.5mm | 3.7V 850mAh |
553759 | 5.5*37*59mm | 5.7*38*61.5mm | 3.7V 1400mAh |
602030 | 6.0*20*30mm | 6.2*21*32.5mm | 3.7V 300mAh |
602240 | 6.0*22*40mm | 6.2*23*42.5mm | 3.7V 500mAh |
602535 | 6.0*25*35mm | 6.2*26*37.5mm | 3.7V 500mAh |
602663 | 6.0*26*63mm | 6.2*27*65.5mm | 3.7V 1000mAh |
603030 | 6.0*30*30mm | 6.2*31*32.5mm | 3.7V 520mAh |
603040 | 6.0*30*40mm | 6.2*31*42.5mm | 3.7V 750mAh |
603048 | 6.0*30*48mm | 6.2*31*50.5mm | 3.7V 900mAh |
603450 | 6.0*34*50mm | 6.2*35*52.5mm | 3.7v 1050mAh |
702040 | 7.0*21*40mm | 7.2*22*42.5mm | 3.7V 500mAh |
753048 | 7.5*30*48mm | 7.7*31*50.5mm | 3.7V 1200mAh |
803035 | 8.0*30*35mm | 8.2*31*37.5mm | 3.7V 800mAh |

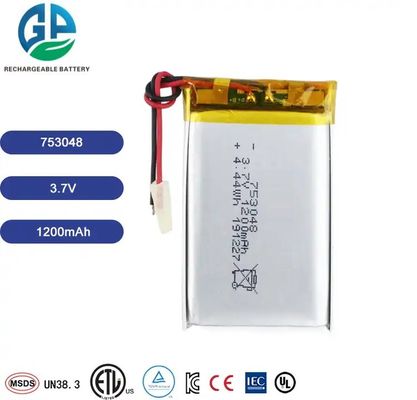

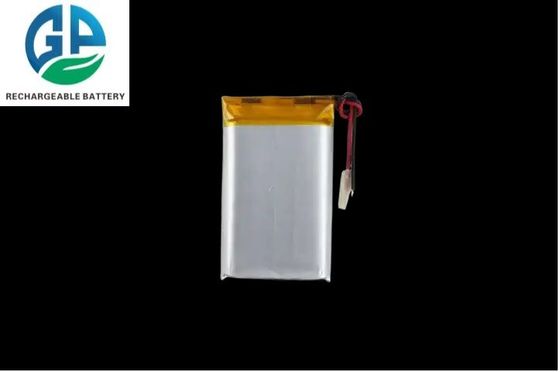

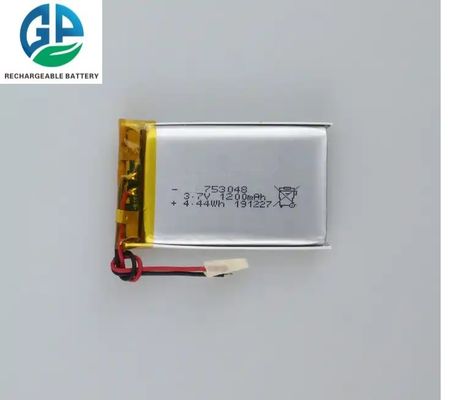

Detailed images:Li Polymer 753048 1200mah 3.7v lipo Rechargeable battery pack
Standard packaging for 3.7V 7.4V lithium polymer battery pack
Why Choose us:
Technology
R&D
Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.
Quality Control
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.
We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
