Model Number: | 602050 |
MOQ: | 2000pieces |
Packaging Details: | Bulk packing |
Payment Terms: | T/T |

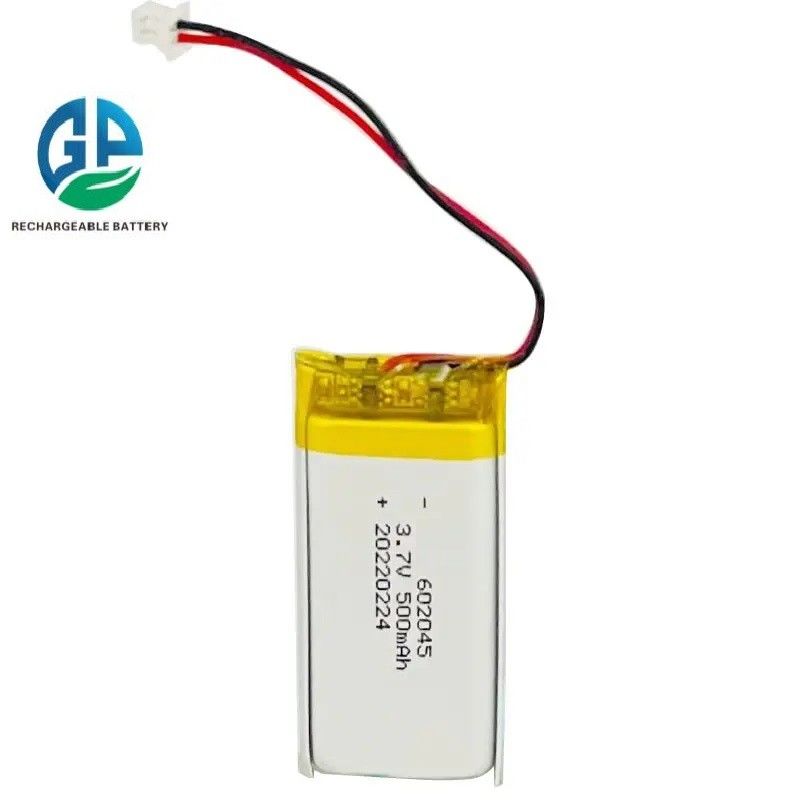

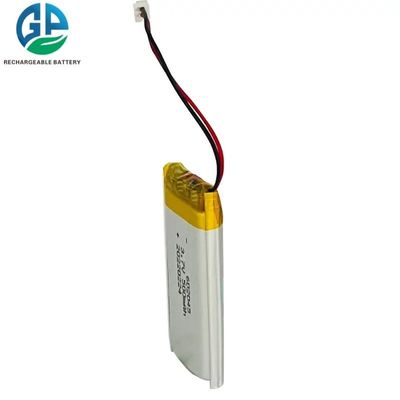

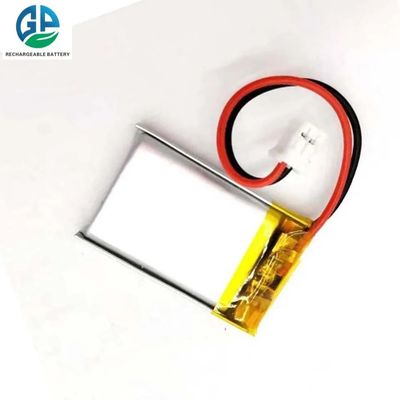

3.7V 500mah 602050 Lithium Polymer Battery Pack 500times Cycle Life
KC 3.7v 500mah Lithium Polymer 602050 Li-Polymer 500mah 3.7v lipo Battery
Li polymer battery pack widely used in:
GPS, POS Terminal, Wireless headset, Communication Tool, Heating Blanket Smart Phone
Learning Tools, Medical Device, Personal Care Scanner Vaccum Packaging, Lamp, Monitor
Portable DVD, Smart Home, Tablet PC, Pulse Monitoring, Moblie, Power Bank, Camera
Shenzhen Gold Power Energy have over 1000models lithium polymer batteries.
Capacity range from 20mAh to 5000mAh, can meet your different kinds of applications.
Following are some of hot-sale models for your reference.
Items
|
Parameter
|
Battery model
|
602050
|
Nominal voltage
|
3.7v
|
Minimum capacity
|
500mAH (0.2C discharge)
|
Charging voltage
|
4.2v
|
Discharging cut-off voltage
|
3.0v
|
Standard charging
|
0.2C /4.2V
|
Max charging
|
1.0C /4.2V
|
Standard discharging
|
0.2C/3.0V
|
Max discharging
|
continuous discharge : 1.0C/3.0V
|
non-continuous discharge:2.0C/3.0V
|
|
Shipment voltage
|
≥3.85V
|
Battery pack impedance
|
≤80mΩ
|
Operating temperature
|
Charging: 0°C ~ 45°C
|
Discharging: -20°C ~60°C
|
|
Storage (At 50% SOC and specified temp, recoverable capacity in % vs time )
|
-10℃~25℃ (12 months ≥85% )
-10℃ ~45℃ (6 months ≥85% )
-10℃~55℃ (1 month ≥90% )
20±5℃ is the recommended storage temperature
|
Visual Inspection
|
There should not be any remarkable scratches, cracks,bolts, cauterization, deformations, swelling, leakage and so on the surface of the cell.
|
Reference standard
|
GB/T 18287-2013,KC CE ROHS IEC/EN61960, UL1642
|
Other Lithium polymer Battery with KC certificates list hot saled in Korea market
Model | Voltage | Capacity | Certificates |
252940 | 3.7V | 260mAh | UL/CB/KC/CE/FCC/ROHS/UN38.3/MSDS |
301318 | 3.7V | 50mAh | KC/CB/UN38.3/MSDS |
301525 | 3.7V | 80mAh | CB/KC/UN38.3 |
302540 | 3.7V | 280mAh | KC/CE/FCC/ROHS/UN38.3/MSDS |
303030 | 3.7V | 250mAh | UL/KC/IEC62133/CE/ROHS/UN38.3/MSDS |
303450 | 3.7V | 500mAh | KC/CE/80℃ high temperature report/CQC |
321618 | 3.7V | 75mAh | KC/IEC62133/CE/UN38.3/MSDS |
331422 | 3.7V | 80mAh | KC/CE/PSE/UN38.3/MSDS |
351325 | 3.7V | 90mAh | KC/ROHS/FCC/UN38.3/MSDS |
351422 | 3.7V | 80mAh | KC |
380926 | 3.7V | 60mAh | KC/IEC62133/UN38.3/MSDS |
400920 | 3.7V | 55mAh | UL/KC/MSDS |
401020 | 3.7V | 55mAh | KC/CE |
401020 | 3.7V | 60mAh | KC |
401025 | 3.7V | 70mAh | KC/CE |
401119 | 3.7V | 55mAh | KC/CE |
401121 | 3.7V | 55mAh | KC/IEC62133/ROHS/UN38.3/MSDS |
401214 | 3.7V | 50mAh | KC/CE |
401230 | 3.7V | 120mAh | UL/KC/CE/ROHS/UN38.3/MSDS |
402030 | 3.7V | 185mAh | UL/KC/IEC62133/CE/FCC/UN38.3/MSDS |
402525 | 3.7V | 250mAh | KC/CE |
403030 | 3.7V | 300mAh | KC/CE/UN38.3/MSDS |
432526 | 3.8V | 320mAh | KC/CB/IEC62133/UN38.3/MSDS |
451220 | 3.7V | 80mAh | KC |
481153 | 3.7V | 300mAh | KC/CE/UN62133/UN38.3/MSDS |
481159 | 3.7V | 300mAh | KC/CE/EN62133/UN38.3/MSDS |
501012 | 3.7V | 45mAh | KC/CE |
501020 | 3.7V | 80mAh | UL/KC/IEC62133/CE/UN38.3/MSDS |
501040 | 3.7V | 150mAh | KC |
501130 | 3.7V | 150mAh | UL/KC/CB/CE/ROHS/UN38.3/MSDS |
501220 | 3.7V | 100mAh | UL/KC/CE/ROHS/MSDS |
501235 | 3.7V | 160mAh | KC/CE/ROHS/MSDS |
501332 | 3.7V | 200mAh | KC/ROHS/MSDS |
501535 | 3.7V | 240mAh | KC/CE |
502030 | 3.7V | 250mAh | UL/KC/IEC62133/CE/ROHS/UN38.3/MSDS |
502035 | 3.7V | 300mAh | UL/KC/CE/ROHS/IEC62133/FCC/UN38.3/MSDS |
503035 | 3.7V | 500mAh | UL/KC/IEC62133/CE/UN38.3/MSDS |
503048 | 3.7V | 750mAh | UL/KC/CE/ROHS/80℃ high temperature test/MSDS |
503450 | 3.7V | 1000mAh | UL/KC/CB/IEC62133/CE/FCC/ROHS/UN38.3/MSDS |
504065 | 3.7V | 1500mAh | UL/KC/CB/IEC62133/CE/FCC/ROHS/UN38.3/MSDS |
522728 | 3.7V | 460mAh | KC |
551245 | 3.7V | 250mAh | UL/KC/IEC62133/EN62133/PSE/FCC/ROHS |
553443 | 3.7V | 900mAh | KC/PSE/UN38.3/MSDS |
555056 | 3.7V | 2100mAh | KC |
601430 | 3.7V | 210mAh | KC/CE/ROHS |
601750 | 3.7V | 500mAh | KC |
602030 | 3.7V | 300mAh | UL/KC/IEC62133/CE/ROHS/UN38.3/MSDS |
602035 | 3.7V | 400mAh | KC/CE |
602040 | 3.7V | 450mAh | UL/KC/CE/ROHS |
602045 | 3.7V | 500mAh | KC/CE/FCC |
602540 | 3.7V | 600mAh | KC/FCC/IEC62133/UN38.3/MSDS |
603030 | 3.7V | 500mAh | KC/CE/EN62133/ROHS/UN38.3/MSDS |
603258-4S | 14.8V | 1200mAh | KC/CB/IEC62133 |
603450 | 3.7V | 1100mAh | UL/KC/CE/IEC62133/UN38.3/MSDS |
603450 | 3.7V | 1200mAh | UL/CE/KC |
651248 | 3.7V | 330mAh | KC/EN62133 |
653040 | 3.7V | 800mAh | KC/MSDS |
702030 | 3.7V | 380mAh | KC/CE |
702035 | 3.7V | 380mAh | KC |
702040 | 3.7V | 500mAh | KC/CE |
702040 | 3.7V | 600mAh | KC/MSDS |
702050 | 3.7V | 750mAh | KC/CE |
702525 | 3.7V | 400mAh | KC |
702535 | 3.7V | 600mAh | KC |
703045 | 3.7V | 900mAh | KC/UN38.3/MSDS |
751818 | 3.7V | 220mAh | UL/KC/EN62133/ROHS/UN38.3/MSDS |
801350 | 3.7V | 500mAh | KC/UN38.3/MSDS |
801630 | 3.7V | 300mAh | KC/CE |
802025 | 3.7V | 400mAh | KC/UN38.3/MSDS |
802540 | 3.7V | 800mAh | KC/FCC/CE/ROHS |
803040 | 3.7V | 1000mAh | UL/KC/CE/ROHS/UN38.3/MSDS |
803048 | 3.7V | 1200mAh | KC/CE |
804459 | 3.7V | 2400mAh | KC/CB/UN38.3/MSDS |
8233125 | 3.7V | 5500mAh | KC/UN38.3/MSDS |
901332 | 3.7V | 300mAh | KC/CE |
902030 | 3.7V | 480mAh | KC/MSDS |
902030 | 3.7V | 500mAh | KC/CE/ROHS/UN38.3/MSDS |
902040 | 3.7V | 700mAh | KC/CE |
902630 | 3.7V | 700mAh | KC |
972829 | 3.7V | 850mAh | KC |
102050 | 3.7V | 1000mAh | UL/KC/IEC62133/CE/FCC/ROHS/UN38.3/MSDS |
103035 | 3.7V | 1100mAh | KC/CE |
103040 | 3.7V | 1200mAh | CB/KC/IEC62133/EN62133/CE/FCC/ROHS/UN38.3/MSDS |
103450 | 3.7V | 1800mAh | UL/KC |
105050 | 3.7V | 3000mAh | CB/KC/IEC62133/CE |
Lithium Polymer battery pack 3.7V 500mAh 602050 li-polymer Rechargeable li-pol battery
Standard packaging for 3.7V 7.4V lithium ion polymer battery pack
Why Choose us:
Technology
R&D
Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.
Quality Control
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.
We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
