Product Details:
|
Battery Type: | Li Polymer Battery Pack | Voltage: | 3.7V |
---|---|---|---|
Capacity: | 500mAh | Cycle Life: | 500times |
Weight: | 12g | Application: | Beauty Device |
SIZE: | 5*22*48mm | ||
High Light: | 1.85wh li polymer battery cell,3.7v 500mah li polymer battery cell,3.7v 500mah custom lipo battery pack |

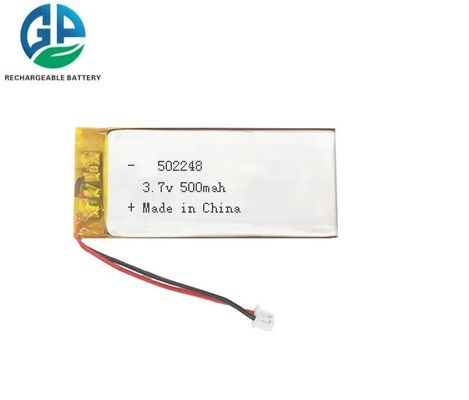

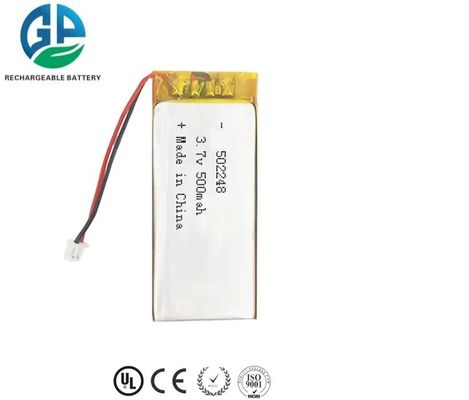

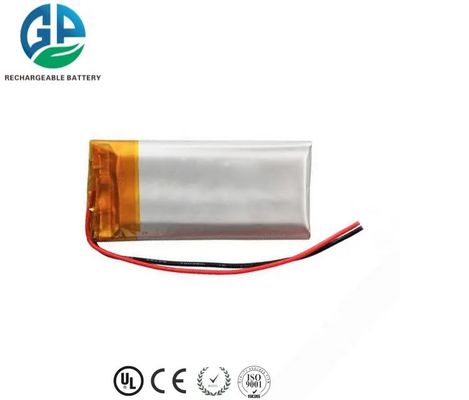

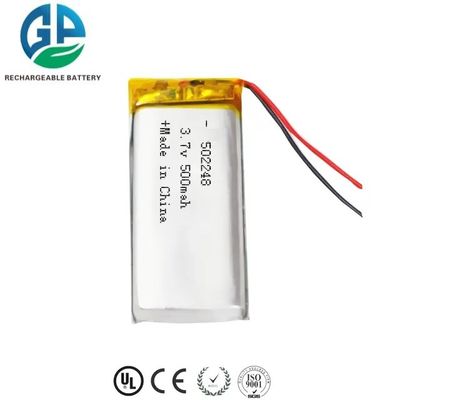

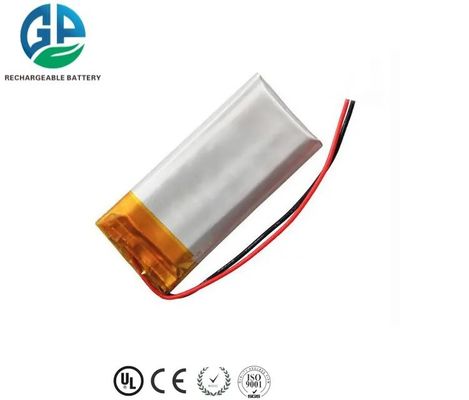

IEC62133 approved 3.7volt li polymer 502248 rechargeable batteries 500mAh li ion polymer battery
Li polymer battery pack widely used in:
GPS, POS Terminal, Wireless headset, Communication Tool, Heating Blanket Smart Phone
Learning Tools, Medical Device, Personal Care Scanner Vaccum Packaging, Lamp, Monitor
Portable DVD, Smart Home, Tablet PC, Pulse Monitoring, Moblie, Power Bank, Camera
Shenzhen Gold Power Energy have over 1000models lithium polymer batteries.
Capacity range from 20mAh to 5000mAh, can meet your different kinds of applications.
Following are some of hot-sale models for your reference.
Specification:
IEC62133 KC Lithium Polymer Battery Pack 502248 3.7V 500mAh LiPo
Product Name: Custom rechargeable 502248 li-ion battery 1.85wh 3.7v 500mah lipo battery
|
|||
Battery Type
|
Li-Polymer
|
Material
|
LiCoO2/NMC
|
PN
|
502248
|
Voltage/Capacity
|
3.7V/500mAh
|
Weight
|
12g
|
Shape
|
Soft pack
|
Dimensions
|
5.1(T)x22.5(W)x50.5(L)mm MAX
|
Package
|
Inner Tray + Carton
|
Cycle Life
|
≥500 times
|
Warranty
|
12 months
|
Charge Info
|
Charge Cut-off Voltage : 4.20V±0.05V
|
||
Charging method: CC/CV
|
|||
Standard Charge Current : 100 mA (0.2C)
|
|||
Max Charge Current: 500mA (1.0C)
|
|||
Discharge Info
|
Discharge Cut-off Voltage : 3.0V
|
||
Max Constant Discharge Current : 500mA/Customized
|
|||
Working
Temperature
|
Standard Charge: 0~+40℃
|
||
Standard Discharge: -20~+60℃
|
|||
Production Lead Time
|
In stock: 5-7 working days; Out of stock: 20-25 working days
|
Other hot sale lipo battery :
Model | Cell Dimension | With PCM Dimension | Capacity |
302025 | 3.0*20*25mm | 3.2*21*27.5mm | 3.7V 100mAh |
302530 | 3.0*25*30mm | 3.2*26*32.5mm | 3.7V 180mAh |
401824 | 4.0*18*24mm | 4.2*19*26.5mm | 3.7V 180mAh |
402525 | 4.0*25*25mm | 4.2*26*27.5mm | 3.7V 200mAh |
483450 | 4.8*34*50mm | 5.0*35*52.5mm | 3.7V 850mAh |
502030 | 5.0*20*30mm | 5.2*21*32.5mm | 3.7V 240mAh |
502525 | 5.0*25*25mm | 5.2*26*27.5mm | 3.7V 180mAh |
503030 | 5.0*30*30mm | 5.2*31*32.5mm | 3.7V 430mAh |
523450 | 5.2*34*50mm | 5.4*35*52.5mm | 3.7V 1000mAh |
553444 | 5.5*34*44mm | 5.7*35*46.5mm | 3.7V 850mAh |
553640 | 5.5*36*40mm | 5.7*37*42.5mm | 3.7V 850mAh |
553759 | 5.5*37*59mm | 5.7*38*61.5mm | 3.7V 1400mAh |
602030 | 6.0*20*30mm | 6.2*21*32.5mm | 3.7V 300mAh |
602240 | 6.0*22*40mm | 6.2*23*42.5mm | 3.7V 500mAh |
602535 | 6.0*25*35mm | 6.2*26*37.5mm | 3.7V 500mAh |
602663 | 6.0*26*63mm | 6.2*27*65.5mm | 3.7V 1000mAh |
603030 | 6.0*30*30mm | 6.2*31*32.5mm | 3.7V 520mAh |
603040 | 6.0*30*40mm | 6.2*31*42.5mm | 3.7V 750mAh |
603048 | 6.0*30*48mm | 6.2*31*50.5mm | 3.7V 900mAh |
603450 | 6.0*34*50mm | 6.2*35*52.5mm | 3.7v 1200mAh |
656090 | 6.5*60*90mm | 6.5*60*92.5mm | 3.7V 5000mAh |
702040 | 7.0*21*40mm | 7.2*22*42.5mm | 3.7V 500mAh |
753048 | 7.5*30*48mm | 7.7*31*50.5mm | 3.7V 1200mAh |
803035 | 8.0*30*35mm | 8.2*31*37.5mm | 3.7V 800mAh |
855465 | 8.5*54*65mm | 8.5*54*65mm | 3.7V 4000mAh |
863040 | 8.6*30*40mm | 8.8*30*42.5mm | 3.7V 1000mAh |
904060 | 9*40*60mm | 9.2*40*62.5mm | 3.7V 2500mAh |
883760 | 8.8*37*60mm | 9*57*51.6mm | 3.7V 2000mAh |
103048 | 10.2*30*48mm | 10.2*30*50.5mm | 3.7V 1500mAh |
103040 | 10.2*30*40mm | 10.2*30*42.5mm | 3.7V 1200mAh |
114261 | 11*42*61mm | 11*42*63.5mm | 3.7V 3400mAh |
122773 | 12*27*73mm | 12*27*75.5mm | 3.7V 2400mAh |
Lithium Polymer battery pack 3.7V 500mAh 502248 li polymer Rechargeable battery
Standard packaging for 3.7V 7.4V lithium polymer battery pack
Why Choose us:
Technology
R&D
Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
