| Model Number: | LP302025 |
| MOQ: | 6000pieces |
| Packaging Details: | Bulk packing |
| Payment Terms: | T/T |
KC Approved 3.7V 100Mah 302025 Lithium Polymer Battery Pack
| Item | Rating | Note | ||
| 3.1 Capacity | Typical | 110 mAh | From 4.2V to 3.0V by discharge current 0.2C. | |
| Minimum | 100 mAh | |||
| 3.2 Nominal Voltage | Average 3.7V | |||
| 3.3 AC Impedance Resistance | ≤360mΩ | |||
| 3.4 Discharge Cut-off Voltage | 3.00V | |||
| 3.5 Charge Current | 22 mA | Standard Charge | ||
| 3.6 Charge voltage | 4.2V | |||
| 3.7 Max. Charge Voltage | 4.23V | |||
| 3.8 Charge Time | Approx 6 h | Standard Charge | ||
| 3.9 Fast Charge current | 100mA | 10~45℃ | ||
| 3.10 Fast Discharge Current | 100mA | 1.0CmA | ||
| 3.11 Weight | Approx 4.5g | |||
| 3.12 Shipping Voltage | 3.85-3.95V | |||
|
3.13 Operating Temperature |
Charge | 0~+10℃ | Max Charge:0.5C(50mA) | |
| 10~+45℃ | Max Charge: 1C(100mA) | |||
| Discharge | -20~+60℃ | |||
|
3.14 Storage Temperature |
less than 1 month | -20~+45℃ |
Recommended storage temperature: 25±2℃,at the shipment state |
|
| less than 3 months | -20~+35℃ | |||
| less than 6months | -20~+30℃ | |||
Other hot-sale Li polymer battery pack models:
Shenzhen Gold Power Energy have over 1000models lithium polymer batteries.
Capacity range from 20mAh to 5000mAh, can meet your different kinds of applications.
Following are some of hot-sale models for your reference.
| Model | Dimension | With PCM Dimension | Capacity |
| 302025 | 3.0*20*25mm | 3.2*21*27.5mm | 3.7V 100mAh |
| 302530 | 3.0*25*30mm | 3.2*26*32.5mm | 3.7V 180mAh |
| 401824 | 4.0*18*24mm | 4.2*19*26.5mm | 3.7V 180mAh |
| 402525 | 4.0*25*25mm | 4.2*26*27.5mm | 3.7V 200mAh |
| 483450 | 4.8*34*50mm | 5.0*35*52.5mm | 3.7V 850mAh |
| 502030 | 5.0*20*30mm | 5.2*21*32.5mm | 3.7V 240mAh |
| 502525 | 5.0*25*25mm | 5.2*26*27.5mm | 3.7V 180mAh |
| 503030 | 5.0*30*30mm | 5.2*31*32.5mm | 3.7V 430mAh |
| 523450 | 5.2*34*50mm | 5.4*35*52.5mm | 3.7V 1000mAh |
| 553444 | 5.5*34*44mm | 5.7*35*46.5mm | 3.7V 850mAh |
| 553640 | 5.5*36*40mm | 5.7*37*42.5mm | 3.7V 850mAh |
| 553759 | 5.5*37*59mm | 5.7*38*61.5mm | 3.7V 1400mAh |
| 602030 | 6.0*20*30mm | 6.2*21*32.5mm | 3.7V 300mAh |
| 602240 | 6.0*22*40mm | 6.2*23*42.5mm | 3.7V 500mAh |
| 602535 | 6.0*25*35mm | 6.2*26*37.5mm | 3.7V 500mAh |
| 602663 | 6.0*26*63mm | 6.2*27*65.5mm | 3.7V 1000mAh |
| 603030 | 6.0*30*30mm | 6.2*31*32.5mm | 3.7V 520mAh |
| 603040 | 6.0*30*40mm | 6.2*31*42.5mm | 3.7V 750mAh |
| 603048 | 6.0*30*48mm | 6.2*31*50.5mm | 3.7V 900mAh |
| 603450 | 6.0*34*50mm | 6.2*35*52.5mm | 3.7v 1050mAh |
| 702040 | 7.0*21*40mm | 7.2*22*42.5mm | 3.7V 500mAh |
| 753048 | 7.5*30*48mm | 7.7*31*50.5mm | 3.7V 1200mAh |
| 803035 | 8.0*30*35mm | 8.2*31*37.5mm | 3.7V 800mAh |

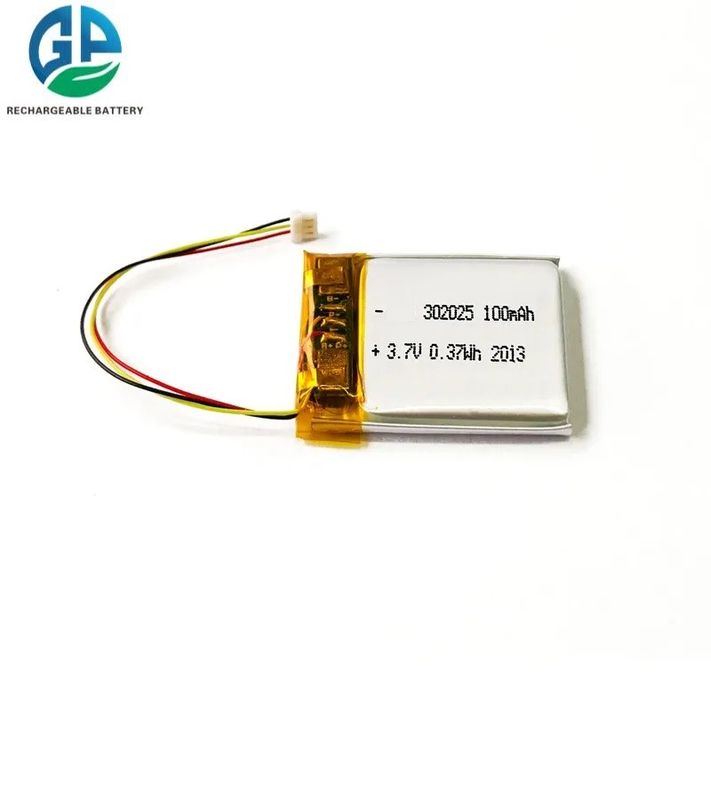

Detailed images Li Polymer 302025 100mah 3.7v lipo battery pack
Standard packaging for 3.7V lithium polymer battery pack
Warnings:
Do not place the battery in the water.
Do not mix fresh batteries with used batteries.
Do not mix batteries with metal stuff together.
Do not insert batteries with the (+) and (-) reversed.
Do not disassemble, dispose in fire, heat or short circuit.
Do not put the battery in a charger or equipment with wrong terminals connected.
Why Choose us:
Technology
R&D
Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.
Quality Control
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.
We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
|
|
