Product Details:
|
| Battery Type: | Lithium Polymer Battery Pack | Voltage: | 3.7V |
|---|---|---|---|
| Capacity: | 500mAh | Cycle Life: | 500times |
| Size: | 9*25*45mm | Weight: | 15g |
| MOQ: | 3000pcs | Warranty: | 1 Year |
| Lead Time: | 15-20days | ||
| High Light: | 752540 Lithium Polymer Battery Pack,Lithium Polymer Battery Pack 500mah |
||
Li Polymer Battery 752540 Lipo 3.7V 500mah Lithium Battery Pack
|
Items
|
Specifications
|
|
Product name
|
Drone Battery 3.7V 500mAh Lipo Battery 20C 25C 30C
|
|
Nornimal Voltage
|
3.7V
|
|
Battery Size
|
9*25*45mm
|
|
Oem
|
available
|
|
Advantage
|
low self-discharge/no memory effect/eco-friendly
|
|
Charge operating temperature
|
0°C~45°C
|
|
Discharge operating temperature
|
-20°C~60°C
|
|
Life cycle time
|
>500times
|
|
Operating temperature
(surface temperature) |
Charge : 0 to 50
(recommended recharge release < 45°C) Discharge: -20 to 75 (recommended re-discharge release < 60°C) |
|
Storage temperature
(Recovery 90% after storage) |
1.5 year -30~25°C(1*)
3 months -30~45°C(1*) 1 month -30~60°C(1*) |
|
Is it the manufacturer's supply?
|
Yes, DATA POWER is a lithium battery manufacturer with 13 years of production experience.
|
|
Does it support sample testing?
|
Yes !!
|
|
Product production cycle
|
2 to 3 weeks after ordering, the fastest 3 days delivery.
|
|
Application field
|
Digital product ,Medical Facilities , GPS MP3/MP4/Mobile phone etc
|
Product advantage
(1). Lithium batteries are light in weight, small in size, large in capacitance, high in energy and high in safety
(2). Lithium battery core raw materials. The core itself has overcharge, overpressure, and overlet the flow of
four safety protection. It fundamentally solves the hidden dangers of short circuit, leakage, explosion and other
aspects of lithium batteries.
(3). Lithium batteries use lithium battery cores in series.
(4). Charging chip protection plate(using military-grade smart IC chip, with overcurrent, overpressure, overcharge,
overcharge, undervoltage, short circuit, reverse connection, equilibrium voltage and equilibrium charging and
other multiple protection functions) to ensure the safety and reliability of the battery pack.
(5). Lithium batteries are used for a long time. The cycle can be charged and discharged more than 600 times.
LED light source operating time of 20,000 hours, lithium battery life 2-3 years.

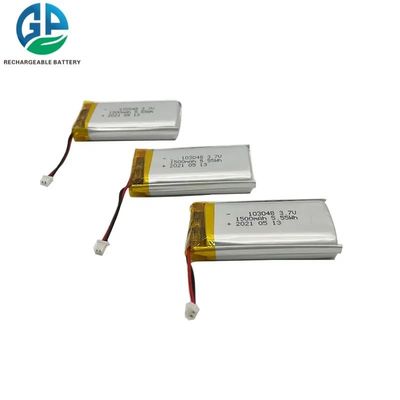

Other hot-sale Li polymer battery pack models:
Shenzhen Gold Power Energy have over 1000models lithium polymer batteries.
Capacity range from 20mAh to 5000mAh, can meet your different kinds of applications.
Following are some of hot-sale models for your reference.
| Model | Dimension | With PCM Dimension | Capacity |
| 302025 | 3.0*20*25mm | 3.2*21*27.5mm | 3.7V 100mAh |
| 302530 | 3.0*25*30mm | 3.2*26*32.5mm | 3.7V 180mAh |
| 401824 | 4.0*18*24mm | 4.2*19*26.5mm | 3.7V 180mAh |
| 402525 | 4.0*25*25mm | 4.2*26*27.5mm | 3.7V 200mAh |
| 483450 | 4.8*34*50mm | 5.0*35*52.5mm | 3.7V 850mAh |
| 502030 | 5.0*20*30mm | 5.2*21*32.5mm | 3.7V 240mAh |
| 502525 | 5.0*25*25mm | 5.2*26*27.5mm | 3.7V 180mAh |
| 503030 | 5.0*30*30mm | 5.2*31*32.5mm | 3.7V 430mAh |
| 523450 | 5.2*34*50mm | 5.4*35*52.5mm | 3.7V 1000mAh |
| 553444 | 5.5*34*44mm | 5.7*35*46.5mm | 3.7V 850mAh |
| 553640 | 5.5*36*40mm | 5.7*37*42.5mm | 3.7V 850mAh |
| 553759 | 5.5*37*59mm | 5.7*38*61.5mm | 3.7V 1400mAh |
| 602030 | 6.0*20*30mm | 6.2*21*32.5mm | 3.7V 300mAh |
| 602240 | 6.0*22*40mm | 6.2*23*42.5mm | 3.7V 500mAh |
| 602535 | 6.0*25*35mm | 6.2*26*37.5mm | 3.7V 500mAh |
| 602663 | 6.0*26*63mm | 6.2*27*65.5mm | 3.7V 1000mAh |
| 603030 | 6.0*30*30mm | 6.2*31*32.5mm | 3.7V 520mAh |
| 603040 | 6.0*30*40mm | 6.2*31*42.5mm | 3.7V 750mAh |
| 603048 | 6.0*30*48mm | 6.2*31*50.5mm | 3.7V 900mAh |
| 603450 | 6.0*34*50mm | 6.2*35*52.5mm | 3.7v 1050mAh |
| 702040 | 7.0*21*40mm | 7.2*22*42.5mm | 3.7V 500mAh |
| 753048 | 7.5*30*48mm | 7.7*31*50.5mm | 3.7V 1200mAh |
| 803035 | 8.0*30*35mm | 8.2*31*37.5mm | 3.7V 800mAh |

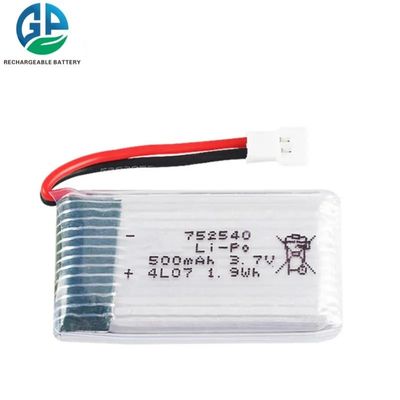

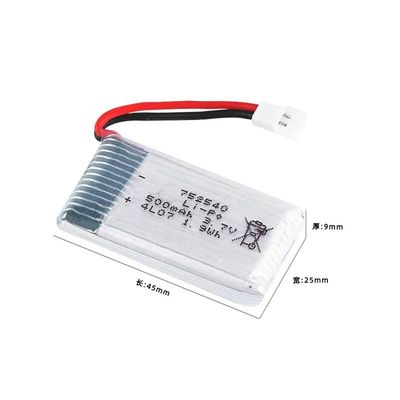

Detailed images Li Polymer 752540 500mah 3.7v Rechargeable pack
Standard packaging for 3.7V lithium polymer battery pack
Why Choose us:
Technology
R&D
Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.
We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
