| Model Number: | 563567 |
| MOQ: | 2000pieces |
| Packaging Details: | Bulk packing |
| Payment Terms: | T/T |
Li-Polymer 563567 3.7V 1500mAh Lipo Battery Rechargeable 3.7v li polymer battery
563567 3.7V 1500mAh Rechargeable Lithium Polymer Battery Pack
1500mAh li polymer battery 3.7V lion polymer battery 563567 lipo battery
|
Item
|
Parameter
|
|
|
Battery model
|
563567
|
|
|
Nominal voltage
|
3.7V
|
|
|
Minimum capacity
|
1500mAh or customized (0.2C discharge)
|
|
|
Charging voltage
|
3.7-4.2V
|
|
|
Discharging cut-off voltage
|
2.0V
|
|
|
Standard charging
|
0.2C /3.7V
|
|
|
Max charging
|
1.0C /3.7V
|
|
|
Standard discharging
|
0.2C/2.0V
|
|
|
Max discharging
|
continuous discharge
|
1.0C/2.0V
|
|
non-continuous discharge
|
2.0C/2.0V
|
|
|
Shipment voltage
|
≥3.2V
|
|
|
Battery pack impedance
|
≤120mΩ
|
|
|
Operating temperature
|
Charging: 0°C ~ 45°C
|
|
|
Discharging: -20°C ~60°C
|
||
|
Storage (At 50% SOC and specified temp,
recoverable capacity in % vs time ) |
-10℃~25℃
|
(12 months ≥85% )
|
|
-10℃ ~45℃
|
(6 months ≥85% )
|
|
|
-10℃~55℃
|
(1 month ≥90% )
|
|
|
20±5℃ is the recommended storage temperature
|
||
|
Visual Inspection
|
There should not be any remarkable scratches, cracks,
bolts, cauterization, deformations, swelling, leakage and so on the surface of the cell. |
|
|
Reference standard
|
GB/T 18287-2013,KC CE ROHS IEC/EN61960, UL1642
|
|
Shenzhen Gold Power Energy have over 1000models lithium polymer batteries.
Capacity range from 20mAh to 5000mAh, can meet your different kinds of applications.
Following are some of hot-sale models for your reference.
| Model | Cell Dimension | With PCM Dimension | Capacity |
| 302025 | 3.0*20*25mm | 3.2*21*27.5mm | 3.7V 100mAh |
| 302530 | 3.0*25*30mm | 3.2*26*32.5mm | 3.7V 180mAh |
| 401824 | 4.0*18*24mm | 4.2*19*26.5mm | 3.7V 180mAh |
| 402525 | 4.0*25*25mm | 4.2*26*27.5mm | 3.7V 200mAh |
| 483450 | 4.8*34*50mm | 5.0*35*52.5mm | 3.7V 850mAh |
| 502030 | 5.0*20*30mm | 5.2*21*32.5mm | 3.7V 240mAh |
| 502525 | 5.0*25*25mm | 5.2*26*27.5mm | 3.7V 180mAh |
| 503030 | 5.0*30*30mm | 5.2*31*32.5mm | 3.7V 430mAh |
| 523450 | 5.2*34*50mm | 5.4*35*52.5mm | 3.7V 1000mAh |
| 553444 | 5.5*34*44mm | 5.7*35*46.5mm | 3.7V 850mAh |
| 553640 | 5.5*36*40mm | 5.7*37*42.5mm | 3.7V 850mAh |
| 553759 | 5.5*37*59mm | 5.7*38*61.5mm | 3.7V 1400mAh |
| 602030 | 6.0*20*30mm | 6.2*21*32.5mm | 3.7V 300mAh |
| 602240 | 6.0*22*40mm | 6.2*23*42.5mm | 3.7V 500mAh |
| 602535 | 6.0*25*35mm | 6.2*26*37.5mm | 3.7V 500mAh |
| 602663 | 6.0*26*63mm | 6.2*27*65.5mm | 3.7V 1000mAh |
| 603030 | 6.0*30*30mm | 6.2*31*32.5mm | 3.7V 520mAh |
| 603040 | 6.0*30*40mm | 6.2*31*42.5mm | 3.7V 750mAh |
| 603048 | 6.0*30*48mm | 6.2*31*50.5mm | 3.7V 900mAh |
| 603450 | 6.0*34*50mm | 6.2*35*52.5mm | 3.7v 1200mAh |
| 656090 | 6.5*60*90mm | 6.5*60*92.5mm | 3.7V 5000mAh |
| 702040 | 7.0*21*40mm | 7.2*22*42.5mm | 3.7V 500mAh |
| 753048 | 7.5*30*48mm | 7.7*31*50.5mm | 3.7V 1200mAh |
| 803035 | 8.0*30*35mm | 8.2*31*37.5mm | 3.7V 800mAh |
| 855465 | 8.5*54*65mm | 8.5*54*65mm | 3.7V 4000mAh |
| 863040 | 8.6*30*40mm | 8.8*30*42.5mm | 3.7V 1000mAh |
| 904060 | 9*40*60mm | 9.2*40*62.5mm | 3.7V 2500mAh |
| 883760 | 8.8*37*60mm | 9*57*51.6mm | 3.7V 2000mAh |
| 103048 | 10.2*30*48mm | 10.2*30*50.5mm | 3.7V 1500mAh |
| 103040 | 10.2*30*40mm | 10.2*30*42.5mm | 3.7V 1200mAh |
| 114261 | 11*42*61mm | 11*42*63.5mm | 3.7V 3400mAh |
| 122773 | 12*27*73mm | 12*27*75.5mm | 3.7V 2400mAh |

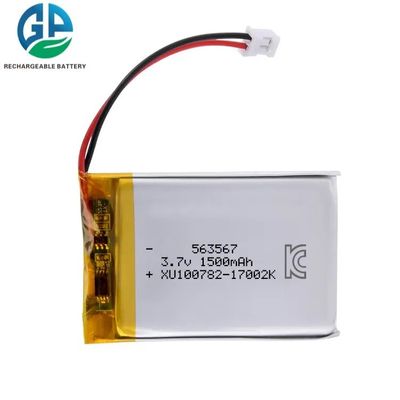

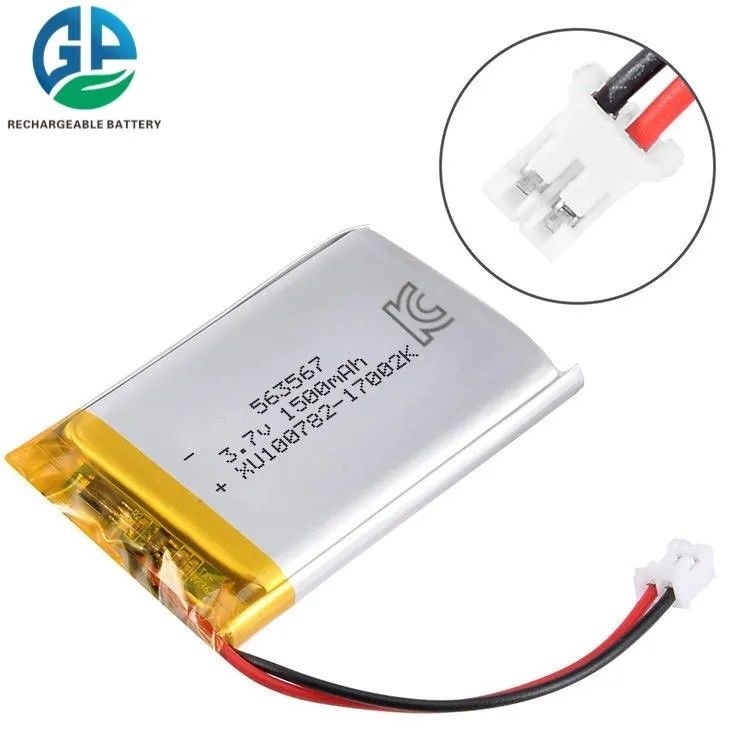

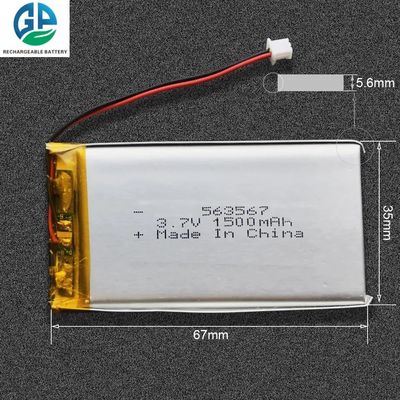

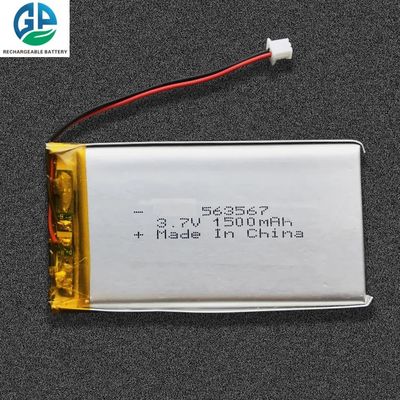

Images for Lithium Polymer 3.7V 563567 1500mah li polymer lion Rechargeable battery pack
Standard packaging for 3.7V 7.4V lithium polymer battery pack
Why Choose us:
Technology
R&D
Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.
Quality Control
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.
We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
|
|
