Product Details:
|
Battery Type: | Lipo Battery Pack | Voltage: | 3.7V |
---|---|---|---|
Capacity: | 50mAh | Cycle Life: | 500times |
Weight: | 2g | Application: | Beauty Device |

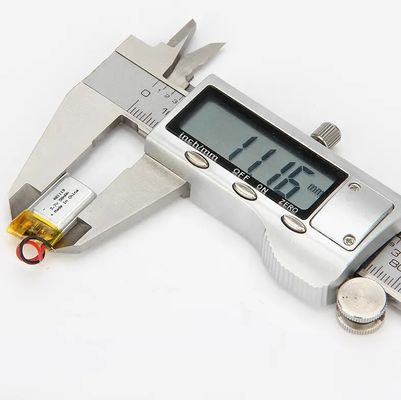

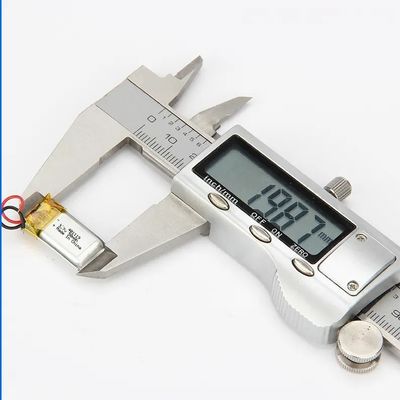

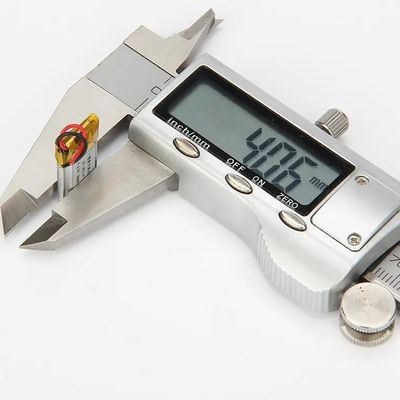

Size: | 4*11.5*21mm | ||
High Light: | 401119 Lithium Ion Battery Pack,Lithium Ion Battery Pack 50mah |

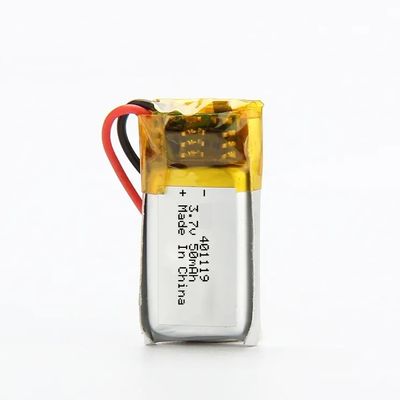

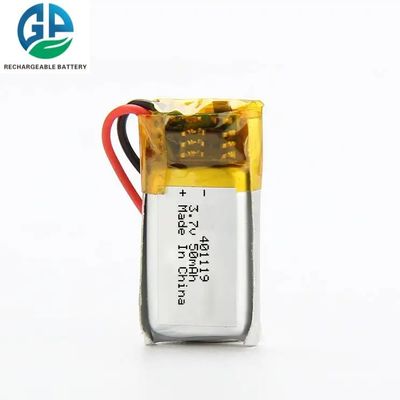

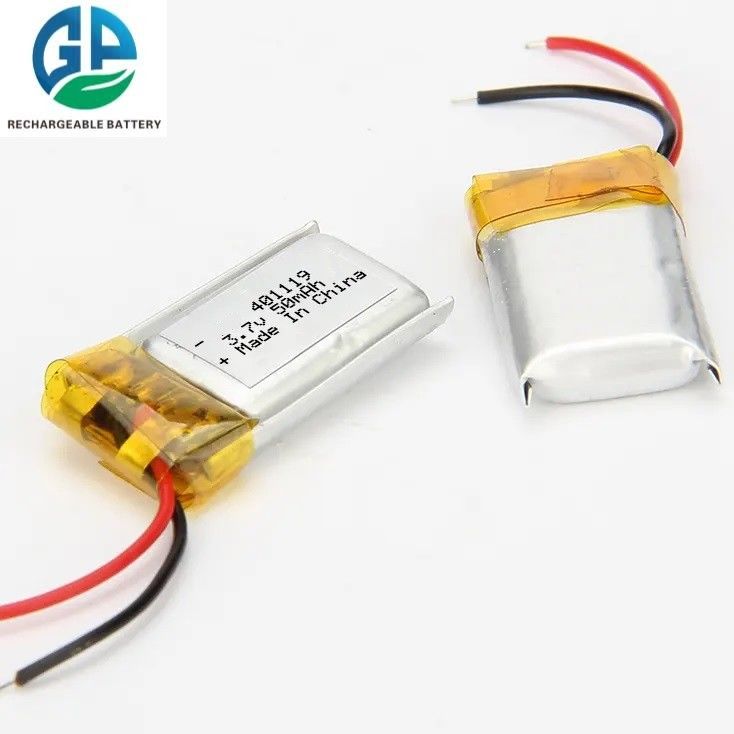

401119 Rechargeable Lithium Ion Battery Pack 3.7V Li Ion Polymer Battery
3.7V 50mah 401119 Lithium Polymer Battery Pack 500times Cycle Life
KC 3.7v 50mah Lithium Polymer 401119 Li-Polymer 800mah 3.7v lipo Battery
Product specification
Items | Parameter | |
Battery model | 401119 | |
Nominal voltage | 3.7V | |
Minimum capacity | 50mAh(0.2C discharge) | |
Charging voltage | 4.2V | |
Discharging cut-off voltage | 3.0V | |
Standard charging | 0.2C /4.2V | |
Max charging | 1.0C /4.2V | |
Standard discharging | 0.2C/3.0V | |
Max discharging | continuous discharge | 1.0C/3.0V |
non-continuous discharge | 2.0C/3.0V | |
Shipment voltage | ≥3.85V | |
Battery pack impedance | ≤80mΩ | |
Operating temperature | Charging: 0°C ~ 45°C | |
Discharging: -20°C ~60°C | ||
Storage (At 50% SOC and specified temp, recoverable capacity in % vs time ) |
-10℃~25℃ | (12 months ≥85% ) |
-10℃ ~45℃ | (6 months ≥85% ) | |
-10℃~55℃ | (1 month ≥90% ) | |
20±5℃ is the recommended storage temperature | ||
Visual Inspection |
There should not be any remarkable scratches, cracks, bolts, cauterization, deformations, swelling, leakage and so on the surface of the cell. |
|
Reference standard | GB/T 18287-2013,KC CE ROHS IEC/EN61960, UL1642 |
Application of li polymer battery pack
1.Telecommunication: cellular phone, web phone, interphone, earphone.
2.Portable office devices: Notebook, PDA, portable electrograph, portable printer.
3.Video devices: GPS, digital camera, camcorder, portable DVD, portable television, MP3, MP4.
4.Portable exchange devices: POS, Handy, Fingerprint machine, portable stock machine.
5.Illuminate devices: miner lamp, searchlight.
6.Others: toys, models.
Other Lithium polymer Battery with KC certificates list hot saled in Korea market
Model | Voltage | Capacity | Certificates |
252940 | 3.7V | 260mAh | UL/CB/KC/CE/FCC/ROHS/UN38.3/MSDS |
301318 | 3.7V | 50mAh | KC/CB/UN38.3/MSDS |
301525 | 3.7V | 80mAh | CB/KC/UN38.3 |
302540 | 3.7V | 280mAh | KC/CE/FCC/ROHS/UN38.3/MSDS |
303030 | 3.7V | 250mAh | UL/KC/IEC62133/CE/ROHS/UN38.3/MSDS |
303450 | 3.7V | 500mAh | KC/CE/80℃ high temperature report/CQC |
321618 | 3.7V | 75mAh | KC/IEC62133/CE/UN38.3/MSDS |
331422 | 3.7V | 80mAh | KC/CE/PSE/UN38.3/MSDS |
351325 | 3.7V | 90mAh | KC/ROHS/FCC/UN38.3/MSDS |
351422 | 3.7V | 80mAh | KC |
380926 | 3.7V | 60mAh | KC/IEC62133/UN38.3/MSDS |
400920 | 3.7V | 55mAh | UL/KC/MSDS |
401020 | 3.7V | 55mAh | KC/CE |
401020 | 3.7V | 60mAh | KC |
401025 | 3.7V | 70mAh | KC/CE |
401119 | 3.7V | 55mAh | KC/CE |
401121 | 3.7V | 55mAh | KC/IEC62133/ROHS/UN38.3/MSDS |
401214 | 3.7V | 50mAh | KC/CE |
401230 | 3.7V | 120mAh | UL/KC/CE/ROHS/UN38.3/MSDS |
402030 | 3.7V | 185mAh | UL/KC/IEC62133/CE/FCC/UN38.3/MSDS |
402525 | 3.7V | 250mAh | KC/CE |
403030 | 3.7V | 300mAh | KC/CE/UN38.3/MSDS |
432526 | 3.8V | 320mAh | KC/CB/IEC62133/UN38.3/MSDS |
451220 | 3.7V | 80mAh | KC |
481153 | 3.7V | 300mAh | KC/CE/UN62133/UN38.3/MSDS |
481159 | 3.7V | 300mAh | KC/CE/EN62133/UN38.3/MSDS |
501012 | 3.7V | 45mAh | KC/CE |
501020 | 3.7V | 80mAh | UL/KC/IEC62133/CE/UN38.3/MSDS |
501040 | 3.7V | 150mAh | KC |
501130 | 3.7V | 150mAh | UL/KC/CB/CE/ROHS/UN38.3/MSDS |
501220 | 3.7V | 100mAh | UL/KC/CE/ROHS/MSDS |
501235 | 3.7V | 160mAh | KC/CE/ROHS/MSDS |
501332 | 3.7V | 200mAh | KC/ROHS/MSDS |
501535 | 3.7V | 240mAh | KC/CE |
502030 | 3.7V | 250mAh | UL/KC/IEC62133/CE/ROHS/UN38.3/MSDS |
502035 | 3.7V | 300mAh | UL/KC/CE/ROHS/IEC62133/FCC/UN38.3/MSDS |
503035 | 3.7V | 500mAh | UL/KC/IEC62133/CE/UN38.3/MSDS |
503048 | 3.7V | 750mAh | UL/KC/CE/ROHS/80℃ high temperature test/MSDS |
503450 | 3.7V | 1000mAh | UL/KC/CB/IEC62133/CE/FCC/ROHS/UN38.3/MSDS |
504065 | 3.7V | 1500mAh | UL/KC/CB/IEC62133/CE/FCC/ROHS/UN38.3/MSDS |
522728 | 3.7V | 460mAh | KC |
551245 | 3.7V | 250mAh | UL/KC/IEC62133/EN62133/PSE/FCC/ROHS |
553443 | 3.7V | 900mAh | KC/PSE/UN38.3/MSDS |
555056 | 3.7V | 2100mAh | KC |
601430 | 3.7V | 210mAh | KC/CE/ROHS |
601750 | 3.7V | 500mAh | KC |
602030 | 3.7V | 300mAh | UL/KC/IEC62133/CE/ROHS/UN38.3/MSDS |
602035 | 3.7V | 400mAh | KC/CE |
602040 | 3.7V | 450mAh | UL/KC/CE/ROHS |
602045 | 3.7V | 500mAh | KC/CE/FCC |
602540 | 3.7V | 600mAh | KC/FCC/IEC62133/UN38.3/MSDS |
603030 | 3.7V | 500mAh | KC/CE/EN62133/ROHS/UN38.3/MSDS |
603258-4S | 14.8V | 1200mAh | KC/CB/IEC62133 |
603450 | 3.7V | 1100mAh | UL/KC/CE/IEC62133/UN38.3/MSDS |
603450 | 3.7V | 1200mAh | UL/CE/KC |
651248 | 3.7V | 330mAh | KC/EN62133 |
653040 | 3.7V | 800mAh | KC/MSDS |
702030 | 3.7V | 380mAh | KC/CE |
702035 | 3.7V | 380mAh | KC |
702040 | 3.7V | 500mAh | KC/CE |
702040 | 3.7V | 600mAh | KC/MSDS |
702050 | 3.7V | 750mAh | KC/CE |
702525 | 3.7V | 400mAh | KC |
702535 | 3.7V | 600mAh | KC |
703045 | 3.7V | 900mAh | KC/UN38.3/MSDS |
751818 | 3.7V | 220mAh | UL/KC/EN62133/ROHS/UN38.3/MSDS |
801350 | 3.7V | 500mAh | KC/UN38.3/MSDS |
801630 | 3.7V | 300mAh | KC/CE |
802025 | 3.7V | 400mAh | KC/UN38.3/MSDS |
802540 | 3.7V | 800mAh | KC/FCC/CE/ROHS |
803040 | 3.7V | 1000mAh | UL/KC/CE/ROHS/UN38.3/MSDS |
803048 | 3.7V | 1200mAh | KC/CE |
804459 | 3.7V | 2400mAh | KC/CB/UN38.3/MSDS |
8233125 | 3.7V | 5500mAh | KC/UN38.3/MSDS |
901332 | 3.7V | 300mAh | KC/CE |
902030 | 3.7V | 480mAh | KC/MSDS |
902030 | 3.7V | 500mAh | KC/CE/ROHS/UN38.3/MSDS |
902040 | 3.7V | 700mAh | KC/CE |
902630 | 3.7V | 700mAh | KC |
972829 | 3.7V | 850mAh | KC |
102050 | 3.7V | 1000mAh | UL/KC/IEC62133/CE/FCC/ROHS/UN38.3/MSDS |
103035 | 3.7V | 1100mAh | KC/CE |
103040 | 3.7V | 1200mAh | CB/KC/IEC62133/EN62133/CE/FCC/ROHS/UN38.3/MSDS |
103450 | 3.7V | 1800mAh | UL/KC |
105050 | 3.7V | 3000mAh | CB/KC/IEC62133/CE |
Lithium Polymer battery pack 3.7V 50mAh 401119 li-polymer Rechargeable li-pol battery
Standard packaging for 3.7V 7.4V lithium ion polymer battery pack
Why Choose us:
Technology
R&D
Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
