Model Number: | 626294 |
MOQ: | 2000pieces |
Packaging Details: | Bulk packing |
Payment Terms: | T/T |

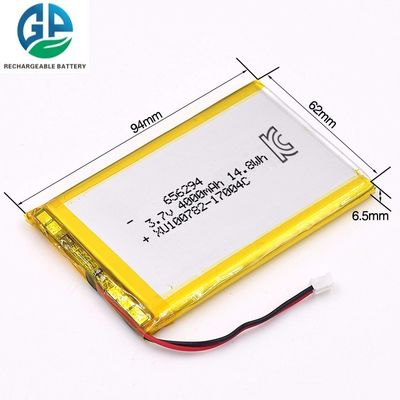

KC Rechargeable Lipo Battery 3.7V 4000mAh 656294 Lithium Polymer Battery Li Polymer 3.7 V Battery
Item
|
Parameter
|
|
Battery model
|
656294
|
|
Nominal voltage
|
3.7V
|
|
Minimum capacity
|
4000mAh (0.2C discharge)
|
|
Charging voltage
|
4.2V
|
|
Discharging cut-off voltage
|
3.0V
|
|
Standard charging
|
0.2C /4.2V
|
|
Max charging
|
1.0C /4.2V
|
|
Standard discharging
|
0.2C/3.0V
|
|
Max discharging
|
continuous discharge
|
1.0C/3.0V
|
non-continuous discharge
|
2.0C/3.0V
|
|
Shipment voltage
|
≥3.85V
|
|
Battery pack impedance
|
≤80mΩ
|
|
Operating temperature
|
Charging: 0°C ~ 45°C
|
|
Discharging: -20°C ~60°C
|
||
Storage (At 50% SOC and specified temp,
recoverable capacity in % vs time ) |
-10℃~25℃
|
(12 months ≥85% )
|
-10℃ ~45℃
|
(6 months ≥85% )
|
|
-10℃~55℃
|
(1 month ≥90% )
|
|
20±5℃ is the recommended storage temperature
|
||
Visual Inspection
|
There should not be any remarkable scratches, cracks,
bolts, cauterization, deformations, swelling, leakage and so on the surface of the cell. |
|
Reference standard
|
GB/T 18287-2013,KC CE ROHS IEC/EN61960, UL1642
|
Other Lithium polymer Battery with KC certificates list hot saled in Korea market
Model | Voltage | Capacity | Certificates |
252940 | 3.7V | 260mAh | UL/CB/KC/CE/FCC/ROHS/UN38.3/MSDS |
301318 | 3.7V | 50mAh | KC/CB/UN38.3/MSDS |
301525 | 3.7V | 80mAh | CB/KC/UN38.3 |
302540 | 3.7V | 280mAh | KC/CE/FCC/ROHS/UN38.3/MSDS |
303030 | 3.7V | 250mAh | UL/KC/IEC62133/CE/ROHS/UN38.3/MSDS |
303450 | 3.7V | 500mAh | KC/CE/80℃ high temperature report/CQC |
321618 | 3.7V | 75mAh | KC/IEC62133/CE/UN38.3/MSDS |
331422 | 3.7V | 80mAh | KC/CE/PSE/UN38.3/MSDS |
351325 | 3.7V | 90mAh | KC/ROHS/FCC/UN38.3/MSDS |
351422 | 3.7V | 80mAh | KC |
380926 | 3.7V | 60mAh | KC/IEC62133/UN38.3/MSDS |
400920 | 3.7V | 55mAh | UL/KC/MSDS |
401020 | 3.7V | 55mAh | KC/CE |
401020 | 3.7V | 60mAh | KC |
401025 | 3.7V | 70mAh | KC/CE |
401119 | 3.7V | 55mAh | KC/CE |
401121 | 3.7V | 55mAh | KC/IEC62133/ROHS/UN38.3/MSDS |
401214 | 3.7V | 50mAh | KC/CE |
401230 | 3.7V | 120mAh | UL/KC/CE/ROHS/UN38.3/MSDS |
402030 | 3.7V | 185mAh | UL/KC/IEC62133/CE/FCC/UN38.3/MSDS |
402525 | 3.7V | 250mAh | KC/CE |
403030 | 3.7V | 300mAh | KC/CE/UN38.3/MSDS |
432526 | 3.8V | 320mAh | KC/CB/IEC62133/UN38.3/MSDS |
451220 | 3.7V | 80mAh | KC |
481153 | 3.7V | 300mAh | KC/CE/UN62133/UN38.3/MSDS |
481159 | 3.7V | 300mAh | KC/CE/EN62133/UN38.3/MSDS |
501012 | 3.7V | 45mAh | KC/CE |
501020 | 3.7V | 80mAh | UL/KC/IEC62133/CE/UN38.3/MSDS |
501040 | 3.7V | 150mAh | KC |
501130 | 3.7V | 150mAh | UL/KC/CB/CE/ROHS/UN38.3/MSDS |
501220 | 3.7V | 100mAh | UL/KC/CE/ROHS/MSDS |
501235 | 3.7V | 160mAh | KC/CE/ROHS/MSDS |
501332 | 3.7V | 200mAh | KC/ROHS/MSDS |
501535 | 3.7V | 240mAh | KC/CE |
502030 | 3.7V | 250mAh | UL/KC/IEC62133/CE/ROHS/UN38.3/MSDS |
502035 | 3.7V | 300mAh | UL/KC/CE/ROHS/IEC62133/FCC/UN38.3/MSDS |
503035 | 3.7V | 500mAh | UL/KC/IEC62133/CE/UN38.3/MSDS |
503048 | 3.7V | 750mAh | UL/KC/CE/ROHS/80℃ high temperature test/MSDS |
503450 | 3.7V | 1000mAh | UL/KC/CB/IEC62133/CE/FCC/ROHS/UN38.3/MSDS |
504065 | 3.7V | 1500mAh | UL/KC/CB/IEC62133/CE/FCC/ROHS/UN38.3/MSDS |
522728 | 3.7V | 460mAh | KC |
551245 | 3.7V | 250mAh | UL/KC/IEC62133/EN62133/PSE/FCC/ROHS |
553443 | 3.7V | 900mAh | KC/PSE/UN38.3/MSDS |
555056 | 3.7V | 2100mAh | KC |
601430 | 3.7V | 210mAh | KC/CE/ROHS |
601750 | 3.7V | 500mAh | KC |
602030 | 3.7V | 300mAh | UL/KC/IEC62133/CE/ROHS/UN38.3/MSDS |
602035 | 3.7V | 400mAh | KC/CE |
602040 | 3.7V | 450mAh | UL/KC/CE/ROHS |
602045 | 3.7V | 500mAh | KC/CE/FCC |
602540 | 3.7V | 600mAh | KC/FCC/IEC62133/UN38.3/MSDS |
603030 | 3.7V | 500mAh | KC/CE/EN62133/ROHS/UN38.3/MSDS |
603258-4S | 14.8V | 1200mAh | KC/CB/IEC62133 |
603450 | 3.7V | 1100mAh | UL/KC/CE/IEC62133/UN38.3/MSDS |
603450 | 3.7V | 1200mAh | UL/CE/KC |
651248 | 3.7V | 330mAh | KC/EN62133 |
653040 | 3.7V | 800mAh | KC/MSDS |
702030 | 3.7V | 380mAh | KC/CE |
702035 | 3.7V | 380mAh | KC |
702040 | 3.7V | 500mAh | KC/CE |
702040 | 3.7V | 600mAh | KC/MSDS |
702050 | 3.7V | 750mAh | KC/CE |
702525 | 3.7V | 400mAh | KC |
702535 | 3.7V | 600mAh | KC |
703045 | 3.7V | 900mAh | KC/UN38.3/MSDS |
751818 | 3.7V | 220mAh | UL/KC/EN62133/ROHS/UN38.3/MSDS |
801350 | 3.7V | 500mAh | KC/UN38.3/MSDS |
801630 | 3.7V | 300mAh | KC/CE |
802025 | 3.7V | 400mAh | KC/UN38.3/MSDS |
802540 | 3.7V | 800mAh | KC/FCC/CE/ROHS |
803040 | 3.7V | 1000mAh | UL/KC/CE/ROHS/UN38.3/MSDS |
803048 | 3.7V | 1200mAh | KC/CE |
804459 | 3.7V | 2400mAh | KC/CB/UN38.3/MSDS |
8233125 | 3.7V | 5500mAh | KC/UN38.3/MSDS |
901332 | 3.7V | 300mAh | KC/CE |
902030 | 3.7V | 480mAh | KC/MSDS |
902030 | 3.7V | 500mAh | KC/CE/ROHS/UN38.3/MSDS |
902040 | 3.7V | 700mAh | KC/CE |
902630 | 3.7V | 700mAh | KC |
972829 | 3.7V | 850mAh | KC |
102050 | 3.7V | 1000mAh | UL/KC/IEC62133/CE/FCC/ROHS/UN38.3/MSDS |
103035 | 3.7V | 1100mAh | KC/CE |
103040 | 3.7V | 1200mAh | CB/KC/IEC62133/EN62133/CE/FCC/ROHS/UN38.3/MSDS |
103450 | 3.7V | 1800mAh | UL/KC |
105050 | 3.7V | 3000mAh | CB/KC/IEC62133/CE |
Lithium Polymer battery pack 3.7V 4000mAh 656294 li-polymer Rechargeable li-pol battery
Standard packaging for 3.7V 7.4V lithium ion polymer battery pack
Why Choose us:
Technology
R&D
Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.
We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
5.0*12*30mm
