Lithium Polymer Battery Pack
>

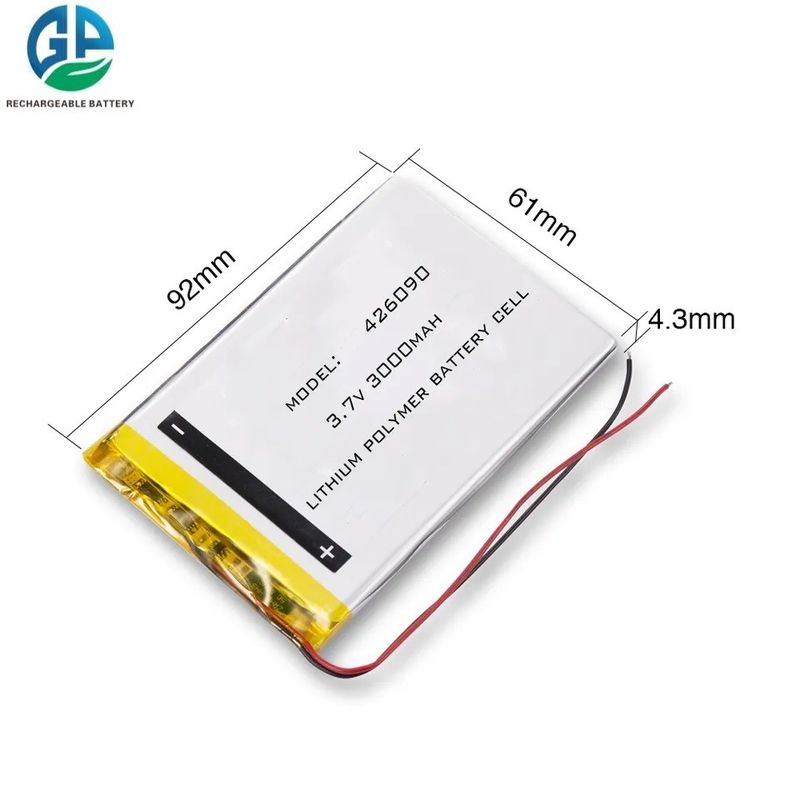

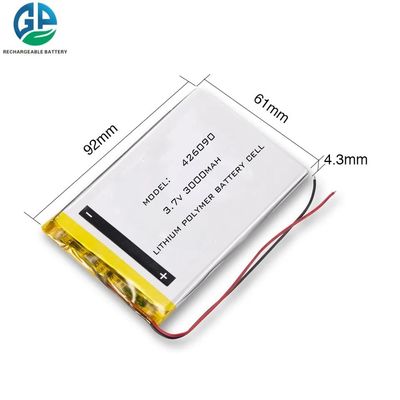

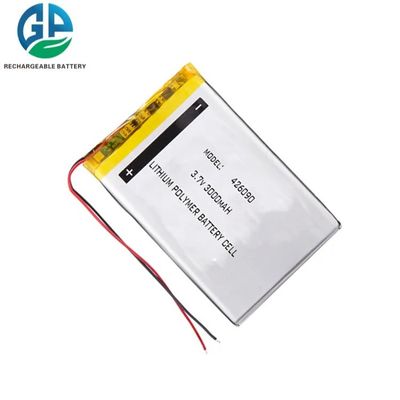

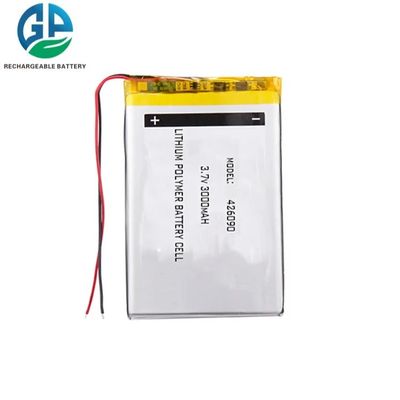

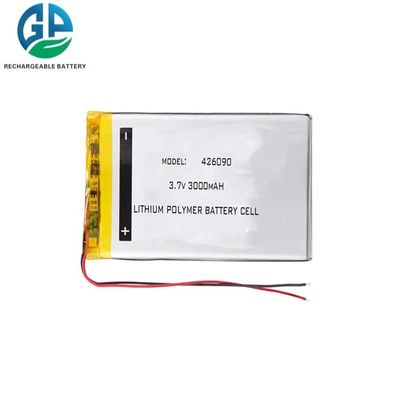

High Discharge Lithium Polymer Battery 426090 3.7v 3000mah Flat Rechargeable Lipo Battery

High Discharge Lithium Polymer Battery 426090 3.7v 3000mah Flat Rechargeable Lipo Battery

Model Number: 426090
MOQ: 2000pieces
Packaging Details: Bulk packing
Payment Terms: T/T
Detail Information
Place of Origin:
China
Certification:
UN38.3, MSDS, IEC62133, RoHS
Battery Type:
Lipo Battery Pack
Voltage:
3.7V
Capacity:
3000mAh
Cycle Life:
500times
Weight:
60g
SIZE:
4.4*60.5*92mm
Certification:
UL/BIS/KC/CE/CE/ROHS
Supply Ability:
50'000Pieces daily
High Light:

High Discharge Lithium Polymer Battery

,

Lithium Polymer Battery 426090

,

3000mah Flat Rechargeable Lipo Battery

Product Description

KC IEC62133 approved 3.7 volt li polymer rechargeable batteries 3000mAh customized lithium ion polymer battery




Name Specifications
Product name Model: large capacity and ultra-thin lithium polymer batteries cell 426090 3.7v 3000mah flat rechargeable lipo battery
Capacity 3000mah
Voltage 3.7v (MAX:4.2v)
Size Battery 4.3*61*92mm
Charge operating temperature 0°C~45°C
Discharge operating temperature -20°C~60°C
Life cycle time >500times
Operating temperature
(surface temperature)
Charge : 0 to 50
(recommended recharge release < 45°C)
Discharge: -20 to 75
(recommended re-discharge release < 60°C)
Storage temperature
(Recovery 90% after storage)
1.5 year -30~25°C(1*)
3 months -30~45°C(1*)
1 month -30~60°C(1*)




Li polymer battery pack widely used in:

GPS, POS Terminal, Wireless headset, Communication Tool, Heating Blanket Smart Phone

Learning Tools, Medical Device, Personal Care Scanner Vaccum Packaging, Lamp, Monitor

Portable DVD, Smart Home, Tablet PC, Pulse Monitoring, Moblie, Power Bank, Camera



Shenzhen Gold Power Energy have over 1000models lithium polymer batteries.

Capacity range from 20mAh to 5000mAh, can meet your different kinds of applications.

Following are some of hot-sale models for your reference.



Battery Model Battery Cell Dimension Battery pack With PCM size  Battery Capacity
302025 3.0*20*25mm 3.2*21*27.5mm 3.7V 100mAh
302530 3.0*25*30mm 3.2*26*32.5mm 3.7V 180mAh
401824 4.0*18*24mm 4.2*19*26.5mm 3.7V 180mAh
402525 4.0*25*25mm 4.2*26*27.5mm 3.7V 200mAh
483450 4.8*34*50mm 5.0*35*52.5mm 3.7V 850mAh
502030 5.0*20*30mm 5.2*21*32.5mm 3.7V 240mAh
502525 5.0*25*25mm 5.2*26*27.5mm 3.7V 180mAh
503030 5.0*30*30mm 5.2*31*32.5mm 3.7V 430mAh
523450 5.2*34*50mm 5.4*35*52.5mm 3.7V 1000mAh
553444 5.5*34*44mm 5.7*35*46.5mm 3.7V 850mAh
553640 5.5*36*40mm 5.7*37*42.5mm 3.7V 850mAh
553759 5.5*37*59mm 5.7*38*61.5mm 3.7V 1400mAh
602030 6.0*20*30mm 6.2*21*32.5mm 3.7V 300mAh
602240 6.0*22*40mm 6.2*23*42.5mm 3.7V 500mAh
602535 6.0*25*35mm 6.2*26*37.5mm 3.7V 500mAh
602663 6.0*26*63mm 6.2*27*65.5mm 3.7V 1000mAh
603030 6.0*30*30mm 6.2*31*32.5mm 3.7V 520mAh
603040 6.0*30*40mm 6.2*31*42.5mm 3.7V 750mAh
603048 6.0*30*48mm 6.2*31*50.5mm 3.7V 900mAh
603450 6.0*34*50mm 6.2*35*52.5mm 3.7v 1200mAh
656090 6.5*60*90mm 6.5*60*92.5mm 3.7V 5000mAh
702040 7.0*21*40mm 7.2*22*42.5mm 3.7V 500mAh
753048 7.5*30*48mm 7.7*31*50.5mm 3.7V 1200mAh
803035 8.0*30*35mm 8.2*31*37.5mm 3.7V 800mAh
855465 8.5*54*65mm 8.5*54*65mm 3.7V 4000mAh
863040 8.6*30*40mm 8.8*30*42.5mm 3.7V 1000mAh
904060 9*40*60mm 9.2*40*62.5mm 3.7V 2500mAh
883760 8.8*37*60mm 9*57*51.6mm 3.7V 2000mAh
103048 10.2*30*48mm 10.2*30*50.5mm 3.7V 1500mAh
103040 10.2*30*40mm 10.2*30*42.5mm 3.7V 1200mAh
114261 11*42*61mm 11*42*63.5mm 3.7V 3400mAh
122773 12*27*73mm 12*27*75.5mm 3.7V 2400mAh





The lifespan of a battery depends on various factors, which can be broken down into several key categories:



1. Chemical Composition:

The materials used in the battery's electrodes and electrolyte directly affect its energy density, cycle life, and overall longevity. Different chemistries have different properties; for example, lithium-ion batteries generally offer higher energy densities and longer lifespans compared to older technologies like nickel-cadmium (NiCd).



2. Cycle Life:

This refers to the number of charge-discharge cycles a battery can withstand before its capacity drops below a certain threshold (usually 80% of its original capacity). Batteries with higher cycle lives are designed to last longer through repeated use.



3.Depth of Discharge (DoD):

How much of the battery's total capacity is used during each discharge cycle affects its lifespan. Deeper discharges tend to reduce the number of possible cycles, whereas shallow discharges can extend the battery's useful life.



4. Temperature:

Both ambient temperature and the operating temperature within the battery pack play crucial roles. High temperatures can accelerate chemical reactions within the battery, leading to faster degradation and reduced lifespan. Conversely, extremely low temperatures can impair performance and efficiency.



5. Charge Rate and Method:

Fast charging can generate more heat inside the battery, potentially shortening its lifespan if not managed properly. The charging algorithm and hardware design also contribute to how well a battery ages over time.



6. Storage Conditions:

Even when not in use, batteries age. Factors such as storage temperature, state of charge during storage, and environmental conditions (humidity, vibration, etc.) all impact the rate at which a battery degrades over time.



7.Usage Patterns:

The specific application and how the battery is used (e.g., continuous vs. intermittent use, high-drain vs. low-drain devices) will influence its wear and tear. Applications that require frequent cycling or high power output may see shorter battery lives.



8. Manufacturing Quality:

Variations in manufacturing processes, quality control, and material consistency can lead to differences in battery performance and longevity even within the same chemistry type.



9. Maintenance and Management Systems: Advanced Battery Management Systems (BMS) can optimize charging, discharging, and monitoring to maximize battery life by preventing overcharging, deep discharging, and managing thermal runaway risks.





Factory Tour:



Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.



We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,



and customized battery pack since 2001.
