KC UL approved li polymer battery 3.7 v 2000mah 605068 lion polymer battery pack

KC UL approved li polymer battery 3.7 v 2000mah 605068 lion polymer battery pack
KC UL approved li polymer battery 3.7 v 2000mah 605068 lion polymer battery pack KC UL approved li polymer battery 3.7 v 2000mah 605068 lion polymer battery pack KC UL approved li polymer battery 3.7 v 2000mah 605068 lion polymer battery pack KC UL approved li polymer battery 3.7 v 2000mah 605068 lion polymer battery pack KC UL approved li polymer battery 3.7 v 2000mah 605068 lion polymer battery pack

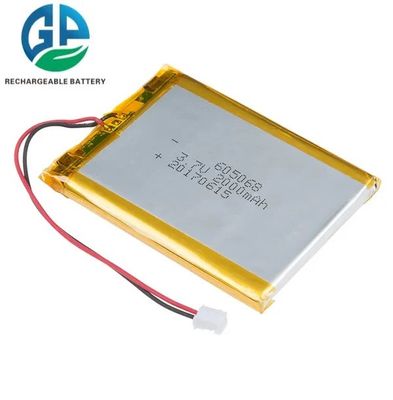

Large Image :  KC UL approved li polymer battery 3.7 v 2000mah 605068 lion polymer battery pack

Product Details:
Place of Origin: CN
Brand Name: GPE
Certification: KC, UN38.3, MSDS, IEC62133, RoHS
Model Number: LP605068
Payment & Shipping Terms:
Minimum Order Quantity: 3000

KC UL approved li polymer battery 3.7 v 2000mah 605068 lion polymer battery pack

Discharging Current: 2C Discharging Temperature: -20-60℃
Size: 6.2*50.5*70.0mm Overdischarge Protection Voltage: 2.75V
Charging Voltage: 4.2V Overcharge Protection Function: Yes
Weight: 30g Type: Li Polymer Battery
High Light:

1c li polymer battery 2000mah


light weight li polymer battery 2000mah


li ion polymer battery 4.2 v 2000mah

Li Polymer Battery Production Process


Lipo batteries, also known as lithium polymer, lithium-ion polymer batteries, are a type of rechargeable battery that uses a polymer electrolyte instead of a liquid one. The production process of polymer batteries involves several key steps:


1. Material Preparation: The first step in producing a lithium polymer battery is to prepare the necessary materials, including the polymer electrolyte, lithium-ion cathode material, graphite anode material, and other components like current collectors and separators.

2. Cathode and Anode Preparation: The cathode and anode materials are coated onto current collectors, which are thin sheets of metal foil that facilitate the flow of electric current within the battery. The coating process involves applying a slurry containing the active material, binders, and solvents onto the current collector using techniques like doctor blade coating or slot die coating.

3. Drying and Pressing: After coating, the cathode and anode films are dried to remove any remaining solvents and then pressed to increase their density and improve adhesion to the current collector.

4. Separator Coating: A separator, typically made of a porous polymer film, is coated with the polymer electrolyte solution. This separator acts as an insulator between the cathode and anode while allowing lithium ions to pass through during charging and discharging.

5. Assembly: The cathode, separator, and anode layers are stacked together, usually with the cathode on top and the anode on the bottom. This stack is then wrapped in a protective outer layer, such as aluminum foil, to prevent damage and maintain the battery's structural integrity.

6. Injection Molding: The wrapped battery stack is placed into a mold and injected with molten polymer material. The Li-polymer solidifies around the battery stack, forming a protective case that also serves as part of the battery's structure.

7. Formation and Aging: The newly assembled polymer battery undergoes a formation process, which involves charging and discharging the battery several times to activate the electrodes and stabilize the electrolyte. After formation, the battery is aged for a period of time to ensure its performance and safety characteristics are consistent.

8. Testing and Quality Control: The final step in the production process is to test the Li-pol battery for capacity, voltage, impedance, and other critical parameters. Any batteries that do not meet the specified quality standards are removed, ensuring that only reliable and high-performing batteries are sold to consumers.


Parameter of 605068 lithium polymer battery pack

Brand Name
 li ion battery 3.7v 2000mah
Nominal Voltage
Nominal Capacity
Battery cell
1 PCS li ion battery 3.7v 2000mah cell
Cycle time
500 times
Charging Cut-off Voltage
Discharge Cut-off Voltage
Maximum Constant Charging Current
Maximum Continuous Discharging Current
Operating Temperature

Charge 0~45°C

Discharge –20~60°C

Storage Temperature
-20~45°C for 1Month

-20~35°C for 6Months

Storage Voltage
Environmental request


Other Lithium polymer Battery with KC certificates list hot saled in Korea market


Model Voltage Capacity Certificates
252940 3.7V 260mAh UL/CB/KC/CE/FCC/ROHS/UN38.3/MSDS
301318 3.7V 50mAh KC/CB/UN38.3/MSDS
301525 3.7V 80mAh CB/KC/UN38.3
302540 3.7V 280mAh KC/CE/FCC/ROHS/UN38.3/MSDS
303030 3.7V 250mAh UL/KC/IEC62133/CE/ROHS/UN38.3/MSDS
303450 3.7V 500mAh KC/CE/80℃ high temperature report/CQC
321618 3.7V 75mAh KC/IEC62133/CE/UN38.3/MSDS
331422 3.7V 80mAh KC/CE/PSE/UN38.3/MSDS
351325 3.7V 90mAh KC/ROHS/FCC/UN38.3/MSDS
351422 3.7V 80mAh KC
380926 3.7V 60mAh KC/IEC62133/UN38.3/MSDS
400920 3.7V 55mAh UL/KC/MSDS
401020 3.7V 55mAh KC/CE
401020 3.7V 60mAh KC
401025 3.7V 70mAh KC/CE
401119 3.7V 55mAh KC/CE
401121 3.7V 55mAh KC/IEC62133/ROHS/UN38.3/MSDS
401214 3.7V 50mAh KC/CE
401230 3.7V 120mAh UL/KC/CE/ROHS/UN38.3/MSDS
402030 3.7V 185mAh UL/KC/IEC62133/CE/FCC/UN38.3/MSDS
402525 3.7V 250mAh KC/CE
403030 3.7V 300mAh KC/CE/UN38.3/MSDS
432526 3.8V 320mAh KC/CB/IEC62133/UN38.3/MSDS
451220 3.7V 80mAh KC
481153 3.7V 300mAh KC/CE/UN62133/UN38.3/MSDS
481159 3.7V 300mAh KC/CE/EN62133/UN38.3/MSDS
501012 3.7V 45mAh KC/CE
501020 3.7V 80mAh UL/KC/IEC62133/CE/UN38.3/MSDS
501040 3.7V 150mAh KC
501130 3.7V 150mAh UL/KC/CB/CE/ROHS/UN38.3/MSDS
501220 3.7V 100mAh UL/KC/CE/ROHS/MSDS
501235 3.7V 160mAh KC/CE/ROHS/MSDS
501332 3.7V 200mAh KC/ROHS/MSDS
501535 3.7V 240mAh KC/CE
502030 3.7V 250mAh UL/KC/IEC62133/CE/ROHS/UN38.3/MSDS
502035 3.7V 300mAh UL/KC/CE/ROHS/IEC62133/FCC/UN38.3/MSDS
503035 3.7V 500mAh UL/KC/IEC62133/CE/UN38.3/MSDS
503048 3.7V 750mAh UL/KC/CE/ROHS/80℃ high temperature test/MSDS
503450 3.7V 1000mAh UL/KC/CB/IEC62133/CE/FCC/ROHS/UN38.3/MSDS
504065 3.7V 1500mAh UL/KC/CB/IEC62133/CE/FCC/ROHS/UN38.3/MSDS
522728 3.7V 460mAh KC
551245 3.7V 250mAh UL/KC/IEC62133/EN62133/PSE/FCC/ROHS
553443 3.7V 900mAh KC/PSE/UN38.3/MSDS
555056 3.7V 2100mAh KC
601430 3.7V 210mAh KC/CE/ROHS
601750 3.7V 500mAh KC
602030 3.7V 300mAh UL/KC/IEC62133/CE/ROHS/UN38.3/MSDS
602035 3.7V 400mAh KC/CE
602040 3.7V 450mAh UL/KC/CE/ROHS
602045 3.7V 500mAh KC/CE/FCC
602540 3.7V 600mAh KC/FCC/IEC62133/UN38.3/MSDS
603030 3.7V 500mAh KC/CE/EN62133/ROHS/UN38.3/MSDS
603258-4S 14.8V 1200mAh KC/CB/IEC62133
603450 3.7V 1100mAh UL/KC/CE/IEC62133/UN38.3/MSDS
603450 3.7V 1200mAh UL/CE/KC
651248 3.7V 330mAh KC/EN62133
653040 3.7V 800mAh KC/MSDS
702030 3.7V 380mAh KC/CE
702035 3.7V 380mAh KC
702040 3.7V 500mAh KC/CE
702040 3.7V 600mAh KC/MSDS
702050 3.7V 750mAh KC/CE
702525 3.7V 400mAh KC
702535 3.7V 600mAh KC
703045 3.7V 900mAh KC/UN38.3/MSDS
751818 3.7V 220mAh UL/KC/EN62133/ROHS/UN38.3/MSDS
801350 3.7V 500mAh KC/UN38.3/MSDS
801630 3.7V 300mAh KC/CE
802025 3.7V 400mAh KC/UN38.3/MSDS
802540 3.7V 800mAh KC/FCC/CE/ROHS
803040 3.7V 1000mAh UL/KC/CE/ROHS/UN38.3/MSDS
803048 3.7V 1200mAh KC/CE
804459 3.7V 2400mAh KC/CB/UN38.3/MSDS
8233125 3.7V 5500mAh KC/UN38.3/MSDS
901332 3.7V 300mAh KC/CE
902030 3.7V 480mAh KC/MSDS
902030 3.7V 500mAh KC/CE/ROHS/UN38.3/MSDS
902040 3.7V 700mAh KC/CE
902630 3.7V 700mAh KC
972829 3.7V 850mAh KC
102050 3.7V 1000mAh UL/KC/IEC62133/CE/FCC/ROHS/UN38.3/MSDS
103035 3.7V 1100mAh KC/CE
103040 3.7V 1200mAh CB/KC/IEC62133/EN62133/CE/FCC/ROHS/UN38.3/MSDS
103450 3.7V 1800mAh UL/KC
105050 3.7V 3000mAh CB/KC/IEC62133/CE



Q&A for GPE Li Polymer Battery

Q1: What is GPE Li Polymer Battery?
A1: GPE Li Polymer Battery is a rechargeable battery with a combination of lithium and polymer material. It offers a high energy density, long cycle life and high safety performance.

Q2: What advantages does GPE Li Polymer Battery have?
A2: GPE Li Polymer Battery has many advantages, such as lighter weight, higher energy density, excellent charge/discharge performance, wide temperature range, and better safety performance.

Q3: What are the applications of GPE Li Polymer Battery?
A3: GPE Li Polymer Battery can be used in a wide range of applications, including consumer electronics, medical devices, power tools, and electric vehicles.

Q4: What are the safety features of GPE Li Polymer Battery?
A4: GPE Li Polymer Battery is designed with multiple safety features, such as over-charge protection, over-discharge protection, over-current protection, and short-circuit protection.

Q5: What is the life cycle of GPE Li Polymer Battery?
A5: The life cycle of GPE Li Polymer Battery is up to 500 cycles (charge and discharge). The capacity of battery will decrease slightly after each cycle, but it will still remain at a high level.
