| Model Number: | LP523450 |
| MOQ: | 3000pieces |
| Packaging Details: | Bulk packing |
| Payment Terms: | T/T |
KC 3.7v 523450 1000mAh Lipo Li-Polymer Rechargeable Battery Li Battery Pack
| Item | Rating | Note | ||
| 3.1 Capacity | Typical | 1000mAh |
Discharge:0.2CmA cut off Voltage:3.0V for cell |
|
| Minimum | 950mAh | |||
| 3.2 Nominal Voltage | Average 3.7V |
Discharge:0.2CmA cut off Voltage:3.0V for cell |
||
| 3.3 AC Impedance Resistance | ≤200mΩ | |||
| 3.4 Discharge Cut-off Voltage | 3.00V | |||
| 3.5 Charge Current | 200mA | Standard Charge | ||
| 3.6 Charge Voltage | 4.2V | |||
| 3.7 Max. Charge Voltage | 4.23V | |||
| 3.8 Charge Time | Approx 6h | Charge: 0.2CmA | ||
| 3.9 Max. Charge Current | 1000mA | 1.0CmA | ||
| 3.10 Max. Discharge Current | 1000mA | |||
| 3.11 Weight | Approx 28g | |||
|
3.12 Operating Temperature |
Charge | 0~+45°C | ||
| Discharge | -20~+60°C | |||
|
3.13 Storage Temperature |
less than 1 month | -20~+45°C |
Recommended storage temperature: 20°C,at the shipment state |
|
| less than 3 months | -20~+35°C | |||
Other hot-sale Li polymer battery pack models:
Shenzhen Gold Power Energy have over 1000models lithium polymer batteries.
Capacity range from 20mAh to 5000mAh, can meet your different kinds of applications.
Following are some of hot-sale models for your reference.
| Model | Dimension | With PCM Dimension | Capacity |
| 302025 | 3.0*20*25mm | 3.2*21*27.5mm | 3.7V 100mAh |
| 302530 | 3.0*25*30mm | 3.2*26*32.5mm | 3.7V 180mAh |
| 401824 | 4.0*18*24mm | 4.2*19*26.5mm | 3.7V 180mAh |
| 402525 | 4.0*25*25mm | 4.2*26*27.5mm | 3.7V 200mAh |
| 483450 | 4.8*34*50mm | 5.0*35*52.5mm | 3.7V 850mAh |
| 502030 | 5.0*20*30mm | 5.2*21*32.5mm | 3.7V 240mAh |
| 502525 | 5.0*25*25mm | 5.2*26*27.5mm | 3.7V 180mAh |
| 503030 | 5.0*30*30mm | 5.2*31*32.5mm | 3.7V 430mAh |
| 523450 | 5.2*34*50mm | 5.4*35*52.5mm | 3.7V 1000mAh |
| 553444 | 5.5*34*44mm | 5.7*35*46.5mm | 3.7V 850mAh |
| 553640 | 5.5*36*40mm | 5.7*37*42.5mm | 3.7V 850mAh |
| 553759 | 5.5*37*59mm | 5.7*38*61.5mm | 3.7V 1400mAh |
| 602030 | 6.0*20*30mm | 6.2*21*32.5mm | 3.7V 300mAh |
| 602240 | 6.0*22*40mm | 6.2*23*42.5mm | 3.7V 500mAh |
| 602535 | 6.0*25*35mm | 6.2*26*37.5mm | 3.7V 500mAh |
| 602663 | 6.0*26*63mm | 6.2*27*65.5mm | 3.7V 1000mAh |
| 603030 | 6.0*30*30mm | 6.2*31*32.5mm | 3.7V 520mAh |
| 603040 | 6.0*30*40mm | 6.2*31*42.5mm | 3.7V 750mAh |
| 603048 | 6.0*30*48mm | 6.2*31*50.5mm | 3.7V 900mAh |
| 603450 | 6.0*34*50mm | 6.2*35*52.5mm | 3.7v 1050mAh |
| 702040 | 7.0*21*40mm | 7.2*22*42.5mm | 3.7V 500mAh |
| 753048 | 7.5*30*48mm | 7.7*31*50.5mm | 3.7V 1200mAh |
| 803035 | 8.0*30*35mm | 8.2*31*37.5mm | 3.7V 800mAh |

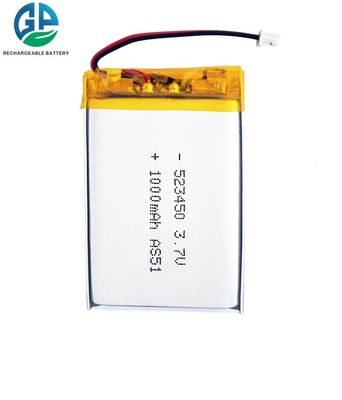

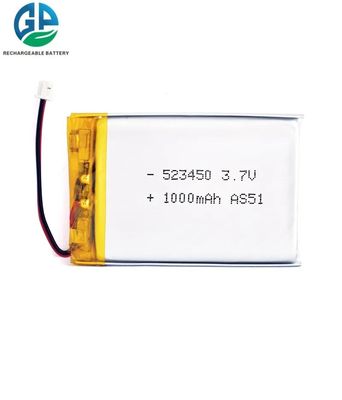

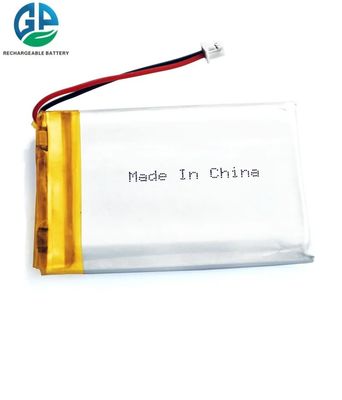

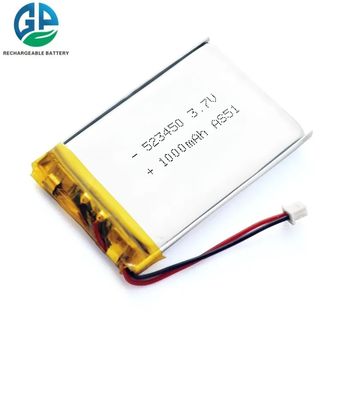

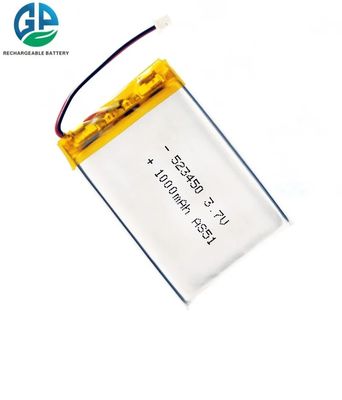

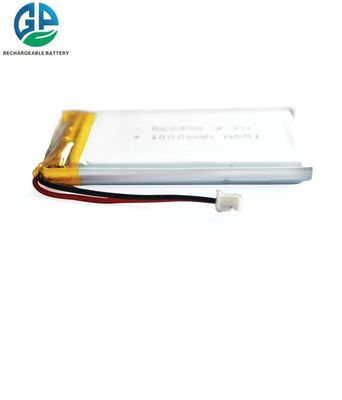

Detailed images Li Polymer 523450 1000mah 3.7v Rechargeable pack
Standard packaging for 3.7V lithium polymer battery pack
Why Choose us:
Technology
R&D
Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.
Quality Control
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.
We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
|
|
