| Model Number: | LP702535 |
| MOQ: | 3000pieces |
| Packaging Details: | Bulk packing |
| Payment Terms: | T/T |
KC Li Battery Pack Storage Battery Pack 3.7V Small Lithium Polymer Battery 702535 600mah 650mah 700mah Lipo Battery
|
|
Item
|
Details
|
Remark
|
|
Energy
|
Nominal Voltage
|
3.7V
|
702535 600mah
|
|
Rated Capacity
|
600mAh
|
battery 3.7V
|
|
|
Battery type
|
Li polymer battery
|
lipo battery
|
|
|
Energy
|
2.22wh
|
lithium battery
|
|
|
Electrical Parameters
|
Standard charge current
|
0.5C
|
Recommended charge and discharge current 0.2C
|
|
Standard discharge current
|
0.2C
|
||
|
Maximum charge current
|
1C
|
Custom
|
|
|
Maximum discharge current
|
1C
|
||
|
Charge cut off voltage
|
4.2V
|
|
|
|
Discharge cut off voltage
|
3.0V
|
|
|
|
Structure
|
Max. Dimention
|
T7.5*W25*L37mm
|
inclu. PCM
|
|
|
N.W.
|
12g
|
|
|
Working Temperature
|
Charging temperature
|
0~45℃
|
recommended
|
|
Discharging temperature
|
-20~60℃
|
recommended
|
|
|
Storage temperature
|
0~45℃
|
|
|
|
Accessories
|
Protection circuit Board
|
Included
|
Optional
|
|
Cut off discharge voltage
|
3.0V
|
2.4/2.75/3.0V for Option
|
|
|
Wire leads
|
50mm
|
Custom
|
|
|
Connector
|
Flying leads
|
Custom
|
Other hot-sale Li polymer battery pack models:
Shenzhen Gold Power Energy have over 1000models lithium polymer batteries.
Capacity range from 20mAh to 5000mAh, can meet your different kinds of applications.
Following are some of hot-sale models for your reference.
| Model | Dimension | With PCM Dimension | Capacity |
| 302025 | 3.0*20*25mm | 3.2*21*27.5mm | 3.7V 100mAh |
| 302530 | 3.0*25*30mm | 3.2*26*32.5mm | 3.7V 180mAh |
| 401824 | 4.0*18*24mm | 4.2*19*26.5mm | 3.7V 180mAh |
| 402525 | 4.0*25*25mm | 4.2*26*27.5mm | 3.7V 200mAh |
| 483450 | 4.8*34*50mm | 5.0*35*52.5mm | 3.7V 850mAh |
| 502030 | 5.0*20*30mm | 5.2*21*32.5mm | 3.7V 240mAh |
| 502525 | 5.0*25*25mm | 5.2*26*27.5mm | 3.7V 180mAh |
| 503030 | 5.0*30*30mm | 5.2*31*32.5mm | 3.7V 430mAh |
| 523450 | 5.2*34*50mm | 5.4*35*52.5mm | 3.7V 1000mAh |
| 553444 | 5.5*34*44mm | 5.7*35*46.5mm | 3.7V 850mAh |
| 553640 | 5.5*36*40mm | 5.7*37*42.5mm | 3.7V 850mAh |
| 553759 | 5.5*37*59mm | 5.7*38*61.5mm | 3.7V 1400mAh |
| 602030 | 6.0*20*30mm | 6.2*21*32.5mm | 3.7V 300mAh |
| 602240 | 6.0*22*40mm | 6.2*23*42.5mm | 3.7V 500mAh |
| 602535 | 6.0*25*35mm | 6.2*26*37.5mm | 3.7V 500mAh |
| 602663 | 6.0*26*63mm | 6.2*27*65.5mm | 3.7V 1000mAh |
| 603030 | 6.0*30*30mm | 6.2*31*32.5mm | 3.7V 520mAh |
| 603040 | 6.0*30*40mm | 6.2*31*42.5mm | 3.7V 750mAh |
| 603048 | 6.0*30*48mm | 6.2*31*50.5mm | 3.7V 900mAh |
| 603450 | 6.0*34*50mm | 6.2*35*52.5mm | 3.7v 1050mAh |
| 702040 | 7.0*21*40mm | 7.2*22*42.5mm | 3.7V 500mAh |
| 753048 | 7.5*30*48mm | 7.7*31*50.5mm | 3.7V 1200mAh |
| 803035 | 8.0*30*35mm | 8.2*31*37.5mm | 3.7V 800mAh |

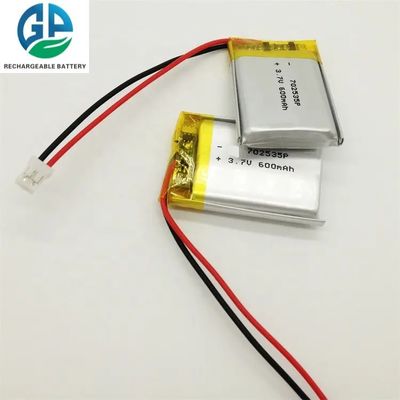

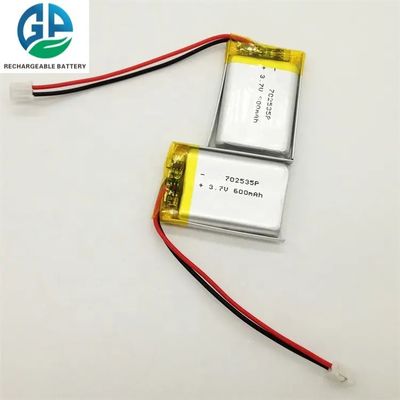

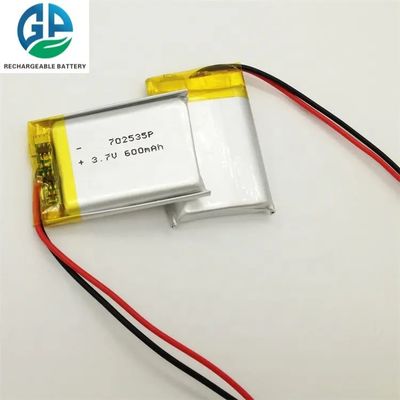

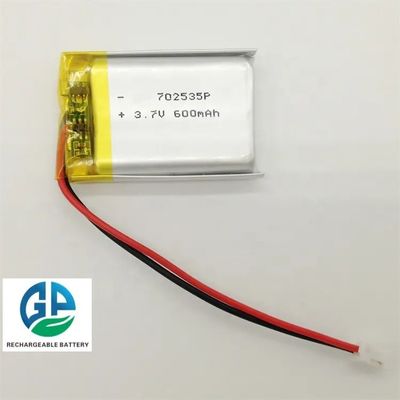

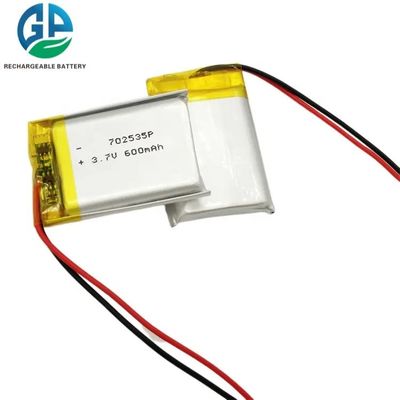

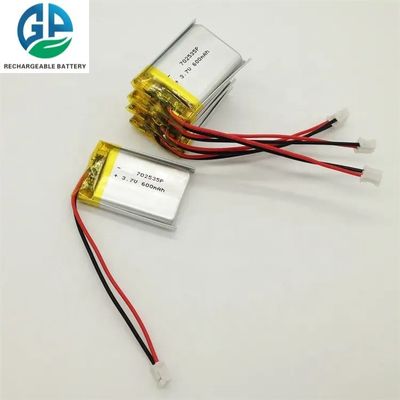

Detailed images Li Polymer 702535 600mah 3.7v Rechargeable pack
Standard packaging for 3.7V lithium polymer battery pack
Why Choose us:
Technology
R&D
Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.
Quality Control
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.
We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
|
|
