| Model Number: | 634169-3S |
| MOQ: | 3000pieces |
| Packaging Details: | Bulk packing |
| Payment Terms: | T/T |

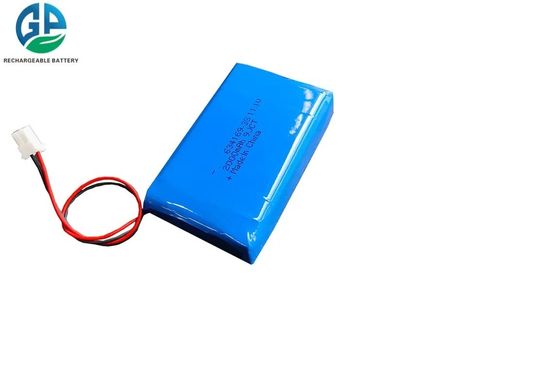

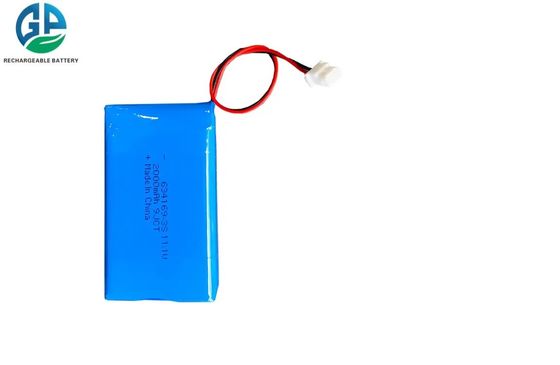

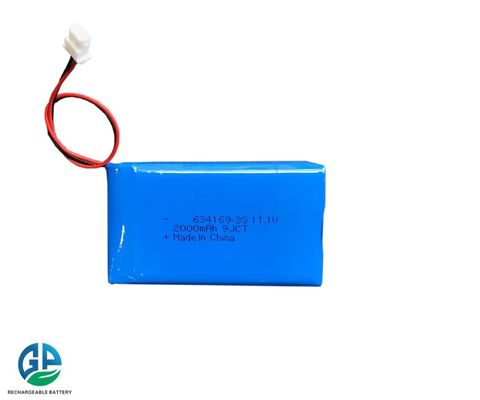

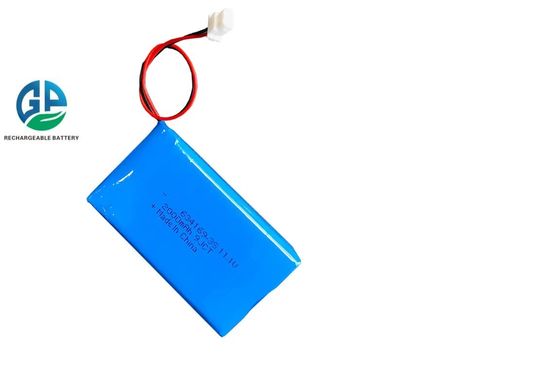

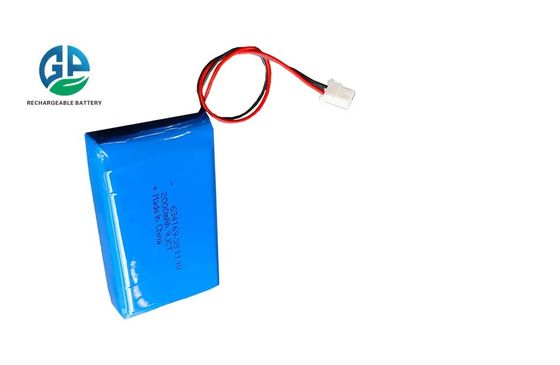

KC Lipo Battery Pack 11.1V 3S 4S Lipo Battery 634169-3S 2000mah 2200mah 2600mah Rechargeable Lipo Battery Pack
|
Items
|
Parameter
|
|
|
Battery model
|
634169
|
|
|
Nominal voltage
|
11.1V
|
|
|
Minimum capacity
|
2000mAh or Customization (0.2C discharge)
|
|
|
Charging voltage
|
11.1V
|
|
|
Discharging cut-off voltage
|
7.2-9V
|
|
|
Standard charging
|
0.2C /12.6V
|
|
|
Max charging
|
1.0C /12.6V
|
|
|
Standard discharging
|
0.2C/9V
|
|
|
Max discharging
|
continuous discharge
|
1.0C/9V
|
|
non-continuous discharge
|
2.0C/9V
|
|
|
Shipment voltage
|
≥11.1V
|
|
|
Battery pack impedance
|
≤150mΩ
|
|
|
Operating temperature
|
Charging: 0°C ~ 45°C
|
|
|
Discharging: -20°C ~60°C
|
||
|
Storage (At 50% SOC and specified temp,
recoverable capacity in % vs time ) |
-10℃~25℃
|
(12 months ≥85% )
|
|
-10℃ ~45℃
|
(6 months ≥85% )
|
|
|
-10℃~55℃
|
(1 month ≥90% )
|
|
|
20±5℃ is the recommended storage temperature
|
||
|
Visual Inspection
|
There should not be any remarkable scratches, cracks,
bolts, cauterization, deformations, swelling, leakage and so on the surface of the cell. |
|
|
Reference standard
|
GB/T 18287-2013,KC CE ROHS IEC/EN61960, UL1642
|
|
Standard packaging for 7.4V lithium polymer battery pack
Why Choose us:
R&D
Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.
We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
|
|
