| Model Number: | LP403048 |
| MOQ: | 3000pieces |
| Packaging Details: | Bulk packing |
| Payment Terms: | T/T |

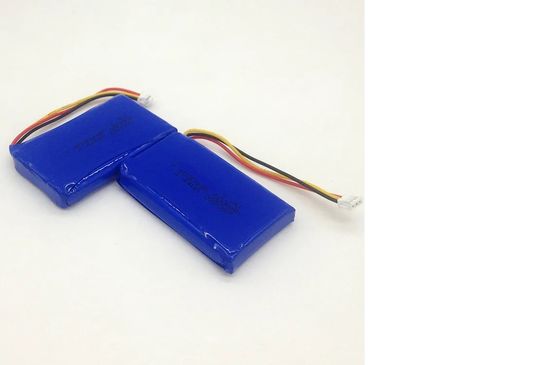

li polymer battery 403048 3.7V 7.4V 500mAh 550mAh 600mAh lithium rechargeable battery pack for medical device
|
|
Item
|
Details
|
Remark
|
|
Energy
|
Nominal Voltage
|
7.4V
|
|
|
Rated Capacity
|
600mAh
|
2s lipo battery 7.4v
|
|
|
Battery type
|
Li-ion polymer battery
|
|
|
|
Energy
|
4.44Wh
|
|
|
|
Electrical Parameters
|
Standard charge current
|
0.5C(300mA)
|
Recommended charge and discharge current 0.2C(120mA)
|
|
Standard discharge current
|
0.2C(120mA)
|
||
|
Maximum charge current
|
600mA
|
Customizable
|
|
|
Maximum discharge current
|
600mA
|
||
|
Charge cut-off voltage
|
8.4V
|
|
|
|
Discharge cut-off voltage
|
6.0V
|
|
|
|
Structure
|
Max. Dimension
|
T8.5*W30.2*L50m
|
Inclu. PCM
|
|
N.W.
|
24g
|
|
|
|
Temperature condition
|
Working temperature
|
-20~60℃
|
|
|
Storage temperature
|
0~45℃
|
|
|
|
Accessories
|
Protection circuit Board
|
Included
|
Optional
|
|
Cut-off discharge voltage
|
6.0V
|
2.4/2.75/3.0V*2 are Optional
|
|
|
Wire leads
|
50mm
|
Customizable
|
|
|
Connector
|
JST-PH-2P 2.00mm
|
Customizable
|
Standard packaging for 3.7V lithium polymer battery pack
Why Choose us:
R&D
Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.
We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
|
|
