| Model Number: | LP501220 |
| MOQ: | 6000pieces |
| Packaging Details: | Bulk packing |
| Payment Terms: | T/T |

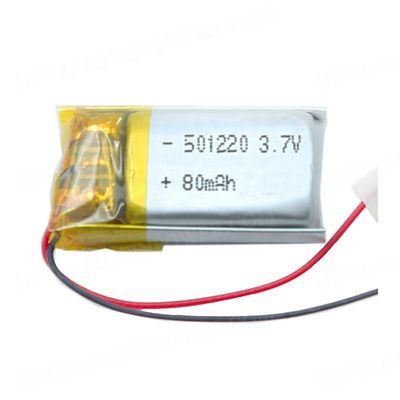

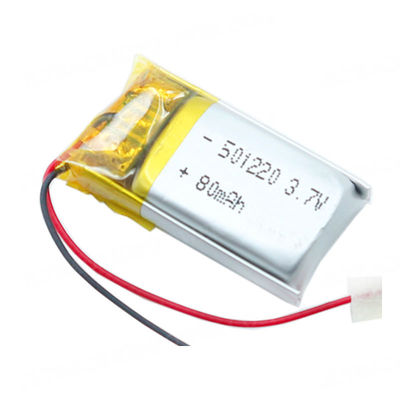

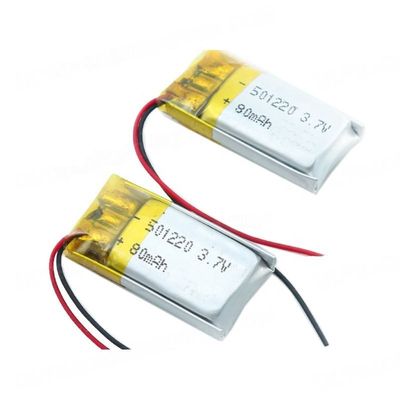

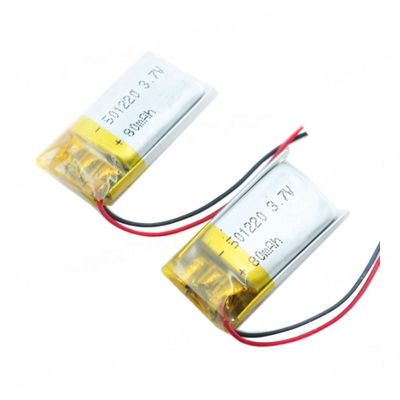

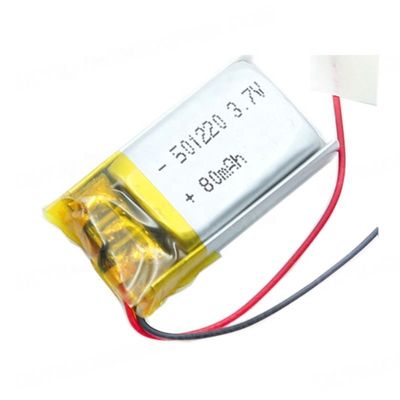

ultra small lithium polymer rechargeable batteries widely used in:
Widely used for MP3, MP4, GPS, Bluetooth speakers & headsets & selfie sticks, remote controllers, headphone, mini digital camera, portable DVD, MID, PDA, pos machines, interphone, voice recorder, for PSP, backup powers, electric toys and other devices with the same battery size and capacity.
|
Item
|
Parameters
|
||
|
Nominal Voltage
|
3.7V
|
||
|
Nominal Capacity
|
80mAh
|
||
|
Discharge
|
normal current
|
0.5C
|
|
|
Max continuous current
|
2C (≤5min)
|
||
|
cut-off voltage
|
2.75V
|
||
|
Charge
|
normal charge current
|
0.2C
|
|
|
Charge mode
|
CC/CV with professional charger
|
||
|
cut-off voltage
|
4.2±0.1V
|
||
|
Inner Resistance
|
|
≤80mΩ
|
|
|
Discharging Inner resistance
|
|||
|
Charge Temperature
|
0℃~+45℃
|
When the environment temperature is higher than 45℃,please pay attention to ventilation and heat rejection.
|
|
|
Discharge Temperature
|
-20℃~+60℃
|
||
|
Humidity Range
|
RH≤85%
|
||
|
Protection Function
|
Over charge protection,Over discharge protection,Over current protection,Balanced function
|
||
|
Weight
|
5±0.1g
|
||
|
Dimension(L*W*H)
|
5*12*20MM or Customized
|
||
|
Cycle Life
|
Standard charge at 0.2C(A), rest 0.5~1 h,discharge at 0.2C to cut off voltage,rest 0.5~1h,repeat the above steps until 500
cycles.( capacity retention rate≥80%) |
||
Other hot-sale Li polymer battery pack models:
Shenzhen Gold Power Energy have over 1000models lithium polymer batteries.
Capacity range from 20mAh to 5000mAh, can meet your different kinds of applications.
Following are some of hot-sale models for your reference.
| Model | Dimension | With PCM Dimension | Capacity |
| 302025 | 3.0*20*25mm | 3.2*21*27.5mm | 3.7V 100mAh |
| 302530 | 3.0*25*30mm | 3.2*26*32.5mm | 3.7V 180mAh |
| 401824 | 4.0*18*24mm | 4.2*19*26.5mm | 3.7V 180mAh |
| 402525 | 4.0*25*25mm | 4.2*26*27.5mm | 3.7V 200mAh |
| 483450 | 4.8*34*50mm | 5.0*35*52.5mm | 3.7V 850mAh |
| 502030 | 5.0*20*30mm | 5.2*21*32.5mm | 3.7V 240mAh |
| 502525 | 5.0*25*25mm | 5.2*26*27.5mm | 3.7V 180mAh |
| 503030 | 5.0*30*30mm | 5.2*31*32.5mm | 3.7V 430mAh |
| 523450 | 5.2*34*50mm | 5.4*35*52.5mm | 3.7V 1000mAh |
| 553444 | 5.5*34*44mm | 5.7*35*46.5mm | 3.7V 850mAh |
| 553640 | 5.5*36*40mm | 5.7*37*42.5mm | 3.7V 850mAh |
| 553759 | 5.5*37*59mm | 5.7*38*61.5mm | 3.7V 1400mAh |
| 602030 | 6.0*20*30mm | 6.2*21*32.5mm | 3.7V 300mAh |
| 602240 | 6.0*22*40mm | 6.2*23*42.5mm | 3.7V 500mAh |
| 602535 | 6.0*25*35mm | 6.2*26*37.5mm | 3.7V 500mAh |
| 602663 | 6.0*26*63mm | 6.2*27*65.5mm | 3.7V 1000mAh |
| 603030 | 6.0*30*30mm | 6.2*31*32.5mm | 3.7V 520mAh |
| 603040 | 6.0*30*40mm | 6.2*31*42.5mm | 3.7V 750mAh |
| 603048 | 6.0*30*48mm | 6.2*31*50.5mm | 3.7V 900mAh |
| 603450 | 6.0*34*50mm | 6.2*35*52.5mm | 3.7v 1050mAh |
| 702040 | 7.0*21*40mm | 7.2*22*42.5mm | 3.7V 500mAh |
| 753048 | 7.5*30*48mm | 7.7*31*50.5mm | 3.7V 1200mAh |
| 803035 | 8.0*30*35mm | 8.2*31*37.5mm | 3.7V 800mAh |
Standard packaging for 3.7V lithium polymer battery pack
Warnings:
Do not place the battery in the water.
Do not mix fresh batteries with used batteries.
Do not mix batteries with metal stuff together.
Do not insert batteries with the (+) and (-) reversed.
Do not disassemble, dispose in fire, heat or short circuit.
Do not put the battery in a charger or equipment with wrong terminals connected.
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.
We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
|
|
