| Model Number: | 21700-4S4P |
| MOQ: | 200pieces |
| Packaging Details: | Bulk packing |
| Payment Terms: | T/T |

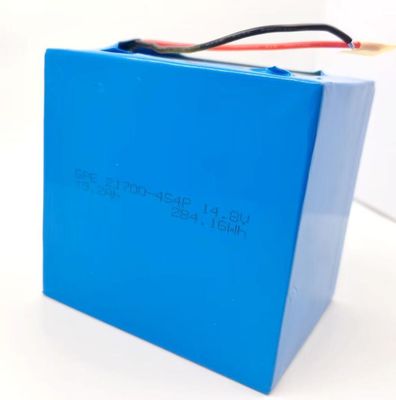

21700 battery pack 14.8V 19.2Ah Lithium cylindrical Rechargeable Battery Packs
To ensure proper use of the battery please read the manual carefully before using it.
| No. | Item | General Parameter | Remark | |
| 1 | Rated Capacity | Typical | 19.2Ah | Standard discharge(0.2C5A)after standard charge |
| Minimum | 19Ah | |||
| 2 | Nominal Voltage | 14.8V | Mean Operation Voltage | |
| 3 | Voltage at end of Discharge | 12V | Discharge Cut-off Voltage | |
| 4 | Charging at end of Voltage | 16.8V | ||
| 5 | Internal Impedance | TBD | ||
| 6 | Standard charge | Constant Current 0.2C5A Constant Voltage 16.8V 0.02C5A cut-off | ||
| 7 | Standard discharge | Constant Current 1C5A end Voltage 12V | ||
| 8 | Fast charge | Constant Current0.5C5A Constant Voltage 16.8V 0.02C5A cut-off | ||
| 9 | Fast discharge | Constant Current 3C5A end Voltage 12V | ||
| 10 | Maximum Continuous Charge Current | 0.5C5A | ||
| 11 | Maximum Continuous Discharge Current | 3C5A | ||
| 12 | Operation Temperature Range | Charge:5~45℃ | 60+/-25%R.H. Bare Cell | |
| Discharge:-10~60℃ | ||||
| 13 | Storage Temperature Range | Less than 1 year:-20~25℃ | 60+/-25%R.H. at the shipment state | |
| Less then 3 months:-20~40℃ | ||||
| 14 | Weight | Approx 1.5kg | ||

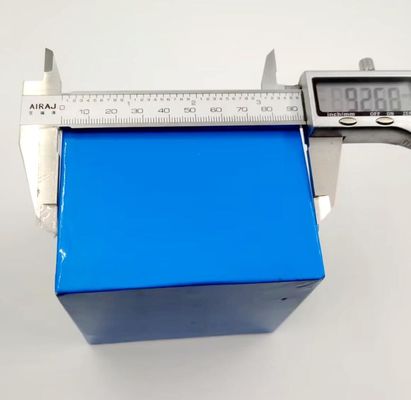

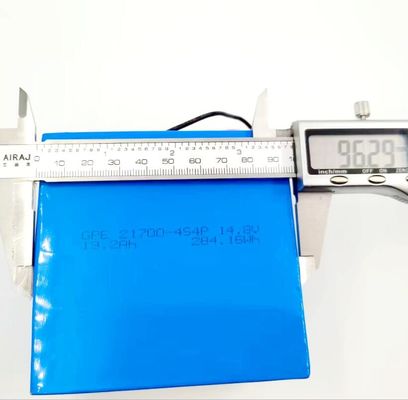

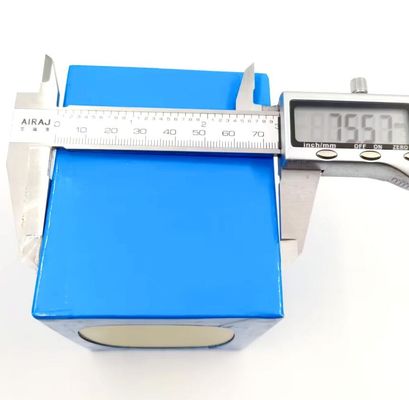

| 15 | Dimension | customized | ||
lithium battery packs 21700 4S1P 14.8 volt 19.2Ah li on rechargeable batteries
Customized lithium rechargeable battery packs
Why Choose us:
Technology
R&D
Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.
Quality Control
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.
We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
|
|
