Prismatic Cell Lithium Ion Battery , 4S1P 14.8V 24Ah Rechargeable Battery Pack

Certification
China shenzhen gold power energy co.,ltd certification
China shenzhen gold power energy co.,ltd certification
Customer Reviews
Your company's excellent customer service always exceeds my expectations. This is why I consistently go wtih you guys. The quality of your products is very well. We have used 3 different types of your batteries in our projects. All works well.

—— Edgardo from America

The team at Gold Power Energy has always offer fast response of our requirement. And they make a great products.

—— Paolo from Italy

We sale your energy storage system for 5 years, it helps our business grow.

—— Miguel

I'm Online Chat Now

Prismatic Cell Lithium Ion Battery , 4S1P 14.8V 24Ah Rechargeable Battery Pack

Prismatic Cell Lithium Ion Battery , 4S1P 14.8V 24Ah Rechargeable Battery Pack
Prismatic Cell Lithium Ion Battery , 4S1P 14.8V 24Ah Rechargeable Battery Pack
Prismatic Cell Lithium Ion Battery , 4S1P 14.8V 24Ah Rechargeable Battery Pack Prismatic Cell Lithium Ion Battery , 4S1P 14.8V 24Ah Rechargeable Battery Pack Prismatic Cell Lithium Ion Battery , 4S1P 14.8V 24Ah Rechargeable Battery Pack Prismatic Cell Lithium Ion Battery , 4S1P 14.8V 24Ah Rechargeable Battery Pack Prismatic Cell Lithium Ion Battery , 4S1P 14.8V 24Ah Rechargeable Battery Pack Prismatic Cell Lithium Ion Battery , 4S1P 14.8V 24Ah Rechargeable Battery Pack

Large Image :  Prismatic Cell Lithium Ion Battery , 4S1P 14.8V 24Ah Rechargeable Battery Pack

Product Details:
Place of Origin: China
Certification: UN38.3, MSDS, IEC62133, RoHS
Model Number: 17117129-4S1P
Payment & Shipping Terms:
Minimum Order Quantity: 200pieces
Packaging Details: Bulk packing
Delivery Time: within 15days
Payment Terms: T/T
Supply Ability: 3'000Pieces daily

Prismatic Cell Lithium Ion Battery , 4S1P 14.8V 24Ah Rechargeable Battery Pack

Description
Battery Type: Lithium Ion Battery Pack Model: 17117129-4S1P
Nominal Voltage: 14.8V Nominal Capacity: 24Ah
Cycle Life: 500times Discharging Rate: 1C
Application: Electronic Scooter, E-bike, Power Tool, Electronic Device Lead Time: 15days
High Light:

Prismatic Cell Lithium Ion Battery

,

4S1P 14.8V Lithium Ion Battery

,

24Ah Rechargeable Battery Pack

14.8V 24Ah Lithium Ion Rechargeable Battery lithium Battery Packs



To ensure proper use of the battery please read the manual carefully before using it.

  • Do not expose to, dispose of the battery in fire.
  • Do not put the battery in a charger or equipment with wrong terminals connected.
  • Avoid excessive physical shock or vibration.
  • Do not disassemble or deform the battery.
  • Do not immerse in water.
  • Do not use the battery mixed with other different make, type, or model batteries.
  • Keep out of the reach of children.
  • Battery must be charged in appropriate charger only.

  • Never use a modified or damaged charger.

  • Do not leave battery in charger over 24 hours.
  • Storage the battery in a cool, dry and well-ventilated area.
  • Disposal
regulations vary for different countries.
  • Dispose of in accordance with local regulations.
SPECIFICATIONS
No. Item Specifications
1 Item Name 14.8V 24Ah lithium ion battery pack
2 Model Number 17117129-4S1P
3 Nominal Voltage 14.8V
4 Nominal Capacity 24Ah
5 Overcharge Protection Voltage 16.8V
6 Overdischarge Protection Voltage 12V
7 Maximum Charge Current ≤20A
8 Continuous Discharge Current ≤30A
9 Pulse Discharge Current ≤35A
10 Internal Resistance ≤160mΩ
11 Load Capacity ≤355W
12 Service Cycle Life ≥500 times
13 Charge Temperature 0℃~45℃
14 Discharge Temperature –20℃~60℃
15 Storage Temperature –20℃~35℃
16 Protectiion Temperature 70℃±5
17 Weight (g) ≈2.5Kg
18 Dimension (mm) 70*120*140mm
19 Packing Highland barley paper+PVC
20 Characteristic High capacity,light, long life, long working time, safe, environment - friendly
21 Application Wireless monitoring equipment, communication equipment, medical equipment, instruments and meters, LED lamps and lanterns, traffic signs, portable small household appliances, power tools, toys, etc..

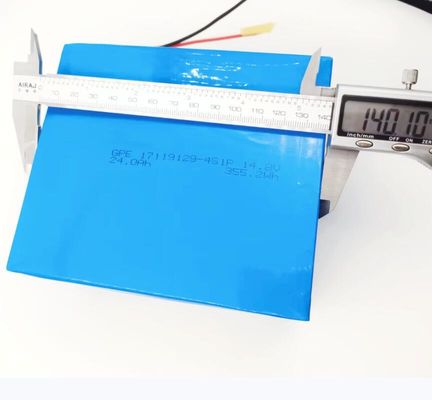

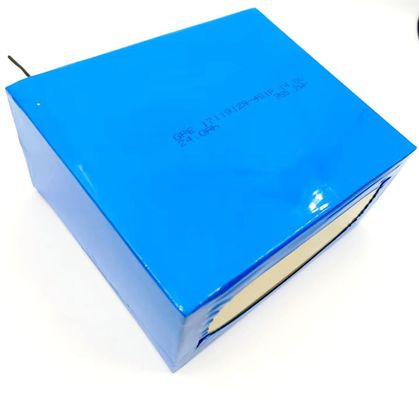

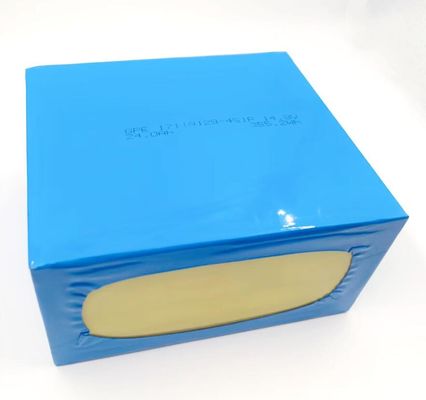

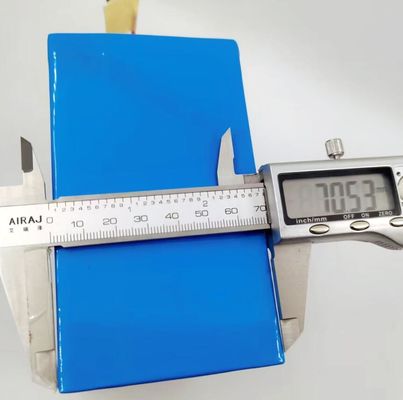

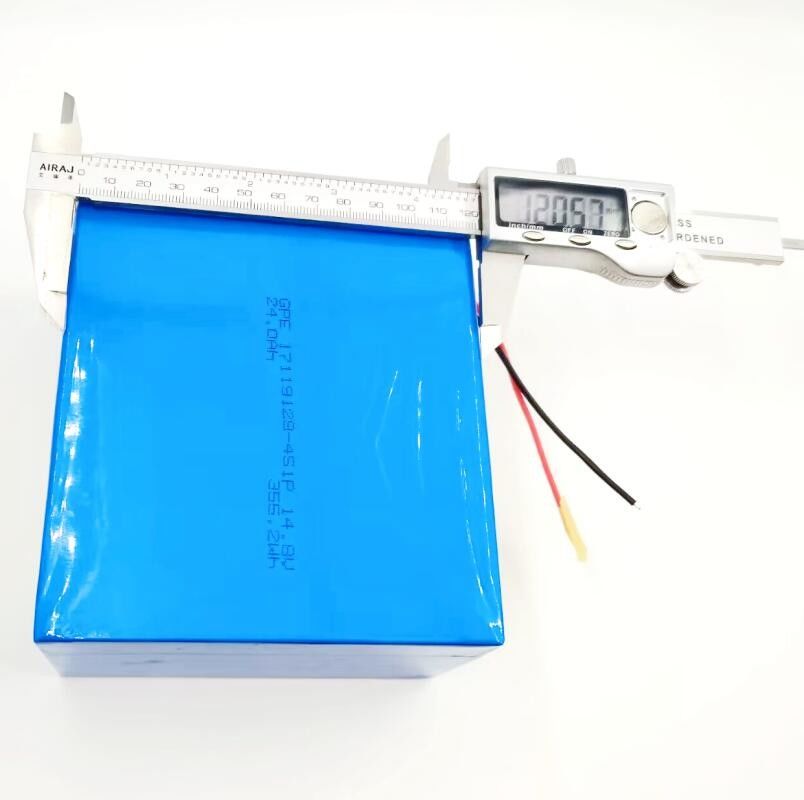

Detailed images for 14.8 volt 24Ah lithium battery pack ICR18650 li on rechargeable batteries



Prismatic Cell Lithium Ion Battery , 4S1P 14.8V 24Ah Rechargeable Battery Pack 0Prismatic Cell Lithium Ion Battery , 4S1P 14.8V 24Ah Rechargeable Battery Pack 1Prismatic Cell Lithium Ion Battery , 4S1P 14.8V 24Ah Rechargeable Battery Pack 2



Prismatic Cell Lithium Ion Battery , 4S1P 14.8V 24Ah Rechargeable Battery Pack 3





Customized lithium rechargeable battery packs



Prismatic Cell Lithium Ion Battery , 4S1P 14.8V 24Ah Rechargeable Battery Pack 4



Why Choose us:



Technology

  • All-weather applicability (-30~60℃)
  • Highly safe battery design technology with the newest electrolyte and separator technology applie
  • Full Coverage of Battery Variety: Lithium ion Cylindrical battery, lithium polymer battery, LiFePO4 battery, Solar Energy Storage battery pack, square aluminum shell, Primary Battery, etc.

R&D

Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.

Prismatic Cell Lithium Ion Battery , 4S1P 14.8V 24Ah Rechargeable Battery Pack 5



Quality Control



Prismatic Cell Lithium Ion Battery , 4S1P 14.8V 24Ah Rechargeable Battery Pack 6



Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.

Prismatic Cell Lithium Ion Battery , 4S1P 14.8V 24Ah Rechargeable Battery Pack 7



Factory Tour:



Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.

We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,

and customized battery pack since 2001.

Prismatic Cell Lithium Ion Battery , 4S1P 14.8V 24Ah Rechargeable Battery Pack 8
