Product Details:
|
| Battery Type: | Lithium Iron Phosphate Battery | Voltage: | 51.2V |
|---|---|---|---|
| Capacity: | 100Ah | Cycle Life: | 6000times |
| Application: | ESS, Solar Storage, Home Using Energy Storage | Weight: | 47.2kg |
| High Light: | 20KWH Solar Energy Storage Batteries,5KWH Solar Energy Storage Batteries,10KWH Lithium Iron Phosphate battery |
||
5KWH 20KWH Solar Energy Storage Batteries Off Grid 3U Rack Cabinet
Solar system storage batteries 51.2V 100AH, 200AH, 400Ah solar backup battery
3U Rack-Mount Battery is made of LiFePo4 battery. It is a new type of backup power supply for the development of high-tech products. With the advantage of integration, miniaturization, light, intelligence standardized, environmental protection, it is a key energy storage element in modem energy storage systems. Integrate solar inverters and LiFePO4 battery enclosures into a pre-wired modular system for easier and faster installation.
| Model | LFP-ESS-51.2V | |
| Performance | Volt/Capacity | 51.2V 100Ah |
| Battery Energy | 5120Wh | |
| Nominal Charge/Discharge Current | 20A | |
| Max Charge/Discharge Current | 100A | |
| Working Voltage | 43.2~56.16V DC | |
| General Specification | Dimension(WXDXH ) | 550*440*130mm(3U) |
| Weight | 47.2Kg | |
| Installation | Rack mounted/Wall mounted/Cabinet mounted | |
| ChargeTemperature | 0℃~55℃ | |
| General Discharge Temperature | -20℃~60℃ | |
| IP Rating | IP20 | |
| Cell Technology | LiFePO4 | |
| Cycle life | 6000 times @80%DOD ,25℃/0.5C | |
| Scalability | Max 15 batteries in parallel | |
| Communication | Communication | RS485,CAN |
| Display | SOC status indicator.LED indicaton | |
| Certification | CB.IEC62619: UL1973: UL9540A: UN38.3: MSDS: | |
| CE.EMC.EN61000-6-1/2/3/4:CE-GPSD.EN62619 |

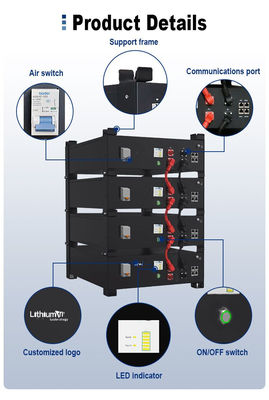

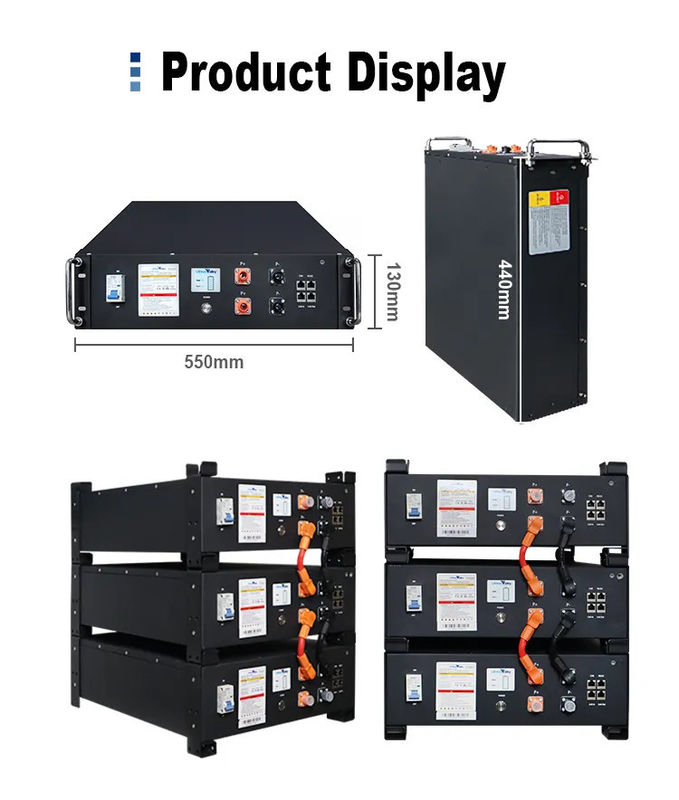

5KWH to 20KWH 3U Rack Cabinet Energy Storage system products details
5KWH house using backup power supply Usage
Rack mount and wall mount off-grid lifepo4 solarge energy storage stysem installation
Product Features
The whole module is non-toxic, non-polluting easy installation and maintenance
LiFeP04 Battery with safety performance, long life time. high power efficiency
BMS has protection functions including over-discharge, over-charge, over-current, and high/low temperature protection.
Multiple battery modules can be in parallel for expanding capacity and power.
RS485/CANBUS/Bluetooth available, supporting remote monitoring, compatible with global mainstream inverters
