| Model Number: | LFP-ESS-51.2V |
| MOQ: | 5pieces |
| Packaging Details: | Carton box |
| Payment Terms: | T/T |
Off Grid 51.2V 100ah 5KWH LiFePO4 Battery Pack 10years Warranty
long cycle life 51.2V 100AH, 200AH, 300Ah LiFePO4 Battery industrial/home using solar storage system.
| Model | LFP-ESS-51.2V | |
| Performance | Volt/Capacity | 51.2V 100Ah |
| Battery Energy | 5120Wh | |
| Nominal Charge/Discharge Current | 20A | |
| Max Charge/Discharge Current | 100A | |
| Working Voltage | 43.2~56.16V DC | |
| General Specification | Dimension(WXDXH ) | 550*440*130mm(3U) |
| Weight | 47.2Kg | |
| Installation | Rack mounted/Wall mounted/Cabinet mounted | |
| ChargeTemperature | 0℃~55℃ | |
| General Discharge Temperature | -20℃~60℃ | |
| IP Rating | IP20 | |
| Cell Technology | LiFePO4 | |
| Cycle life | 6000 times @80%DOD ,25℃/0.5C | |
| Scalability | Max 15 batteries in parallel | |
| Communication | Communication | RS485,CAN |
| Display | SOC status indicator.LED indicaton | |
| Certification | CB.IEC62619: UL1973: UL9540A: UN38.3: MSDS: | |
| CE.EMC.EN61000-6-1/2/3/4:CE-GPSD.EN62619 |

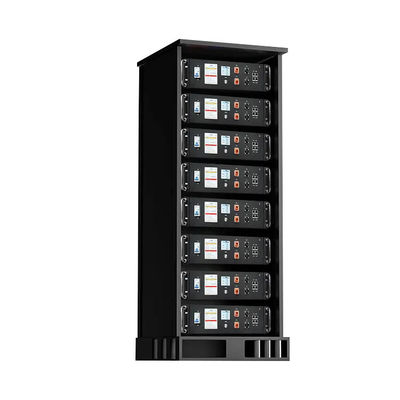

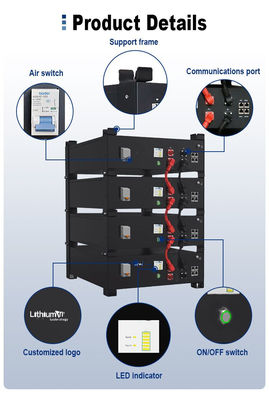

5KWH to 20KWH 3U Rack Cabinet Energy Storage system products details
5KWH house using backup power supply Usage
Rack mount and wall mount off-grid lifepo4 solarge energy storage stysem installation
Product Features
The whole module is non-toxic, non-polluting easy installation and maintenance
LiFeP04 Battery with safety performance, long life time. high power efficiency
BMS has protection functions including over-discharge, over-charge, over-current, and high/low temperature protection.
Multiple battery modules can be in parallel for expanding capacity and power.
RS485/CANBUS/Bluetooth available, supporting remote monitoring, compatible with global mainstream inverters
Why Choose us:
Technology
R&D
Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.
We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
|
|
