| Model Number: | LFP-ESS-51.2V |
| MOQ: | 5pieces |
| Packaging Details: | Carton box |
| Payment Terms: | T/T |
6000cycles Solar Energy Storage Batteries 5KWH Lifepo4 Backup Power
long cycle life 51.2V 100AH, 200AH, 300Ah ESS LiFePO4 Battery industrial/home using solar storage system.
| Model | LFP-ESS-51.2V | |
| Performance | Volt/Capacity | 51.2V 100Ah |
| Battery Energy | 5120Wh | |
| Nominal Charge/Discharge Current | 20A | |
| Max Charge/Discharge Current | 100A | |
| Working Voltage | 43.2~56.16V DC | |
| General Specification | Dimension(WXDXH ) | 550*440*130mm(3U) |
| Weight | 47.2Kg | |
| Installation | Rack mounted/Wall mounted/Cabinet mounted | |
| ChargeTemperature | 0℃~55℃ | |
| General Discharge Temperature | -20℃~60℃ | |
| IP Rating | IP20 | |
| Cell Technology | LiFePO4 | |
| Cycle life | 6000 times @80%DOD ,25℃/0.5C | |
| Scalability | Max 15 batteries in parallel | |
| Communication | Communication | RS485,CAN |
| Display | SOC status indicator.LED indicaton | |
| Certification | CB.IEC62619: UL1973: UL9540A: UN38.3: MSDS: | |
| CE.EMC.EN61000-6-1/2/3/4:CE-GPSD.EN62619 |

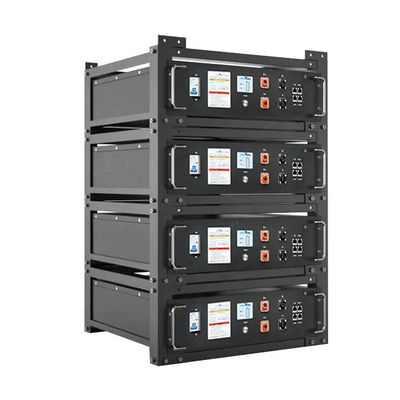

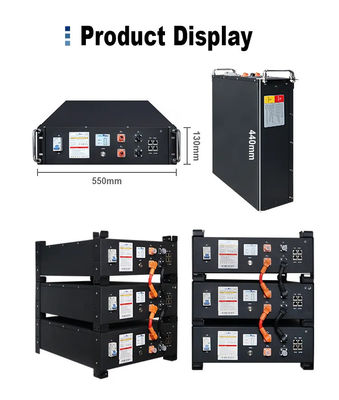

5KWH to 20KWH 3U Rack Cabinet Energy Storage system products details
5KWH house using backup power supply Usage
Rack mount and wall mount off-grid lifepo4 solarge energy storage stysem installation
hot sale lifepo4 rechargeable battery pack:
| Lead Acid Replacement LiFePO4 Battery Pack | |||||
|
Voltage
|
Typical Capacity | Charge | Discharge |
Dimension (mm) with case |
Weight(Kg) |
| 12V | 8AH | 0.2C-2C | 0.2C-2C | 150*92*65 | 1.25 |
| 12V | 10AH | 0.2C-2C | 0.2C-2C | 150*92*65 | 1.6 |
| 12V | 12AH | 0.2C-2C | 0.2C-2C | 151*99*95 | 1.8 |
| 12V | 50AH | 0.2C-2C | 0.2C-2C | 195*165*175 | 9.5 |
| 12V | 100AH | 0.2C-2C | 0.2C-2C | 330*175*220 | 19 |
| 12V | 200AH | 0.2C-2C | 0.2C-2C | 525*240*215 | 30 |
| 24V | 10AH | 0.2C-2C | 0.2C-2C | 181*77*175 | 3 |
| 24V | 30AH | 0.2C-2C | 0.2C-2C | 195*165*175 | 12 |
| 24V | 50AH | 0.2C-2C | 0.2C-2C | 330*175*220 | 18 |
| 24V | 100AH | 0.2C-2C | 0.2C-2C | 485*175*240 | 32 |
| 48V | 10AH | 0.2C-2C | 0.2C-2C | 223*106*175 | 7.5 |
| 48V | 50AH | 0.2C-2C | 0.2C-2C | 522*237*215 | 33 |
| 48V | 75AH | 0.2C-2C | 0.2C-2C | 522*237*215 | 42 |
| 48V | 100AH | 0.2C-2C | 0.2C-2C | 350*540*160 | 52 |
Why Choose us:
Technology
R&D
Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.

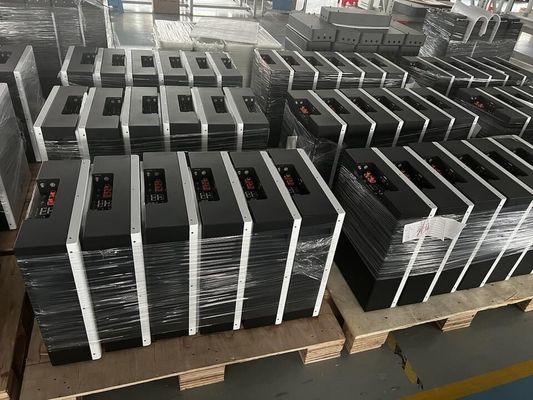

Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.
We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
|
|
