| Model Number: | 502535 |
| MOQ: | 2000pieces |
| Packaging Details: | Bulk packing |
| Payment Terms: | T/T |

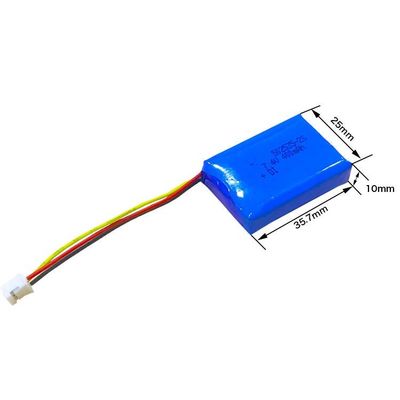

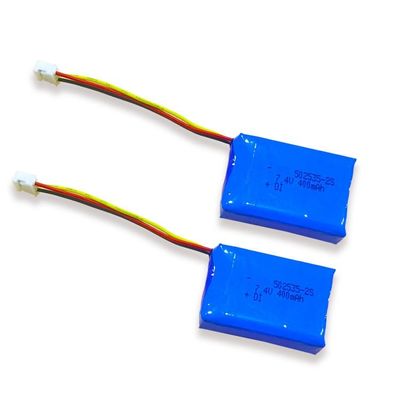

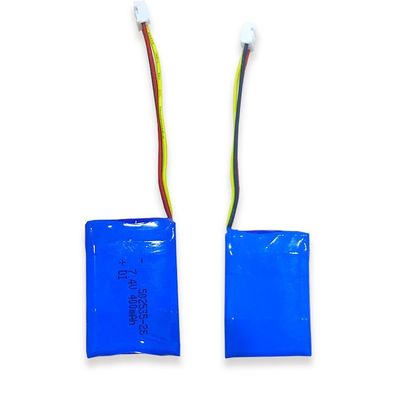

Rechargeable 502535 400mAh 7.4V Lipo Battery Pack KC IEC62133 Approved
KC IEC62133 approved 3.7 volt li polymer rechargeable batteries 400mAh customized li ion polymer battery
Do not submerge the battery in the water.
Do not mix fresh batteries with used batteries.
Do not mix batteries with metal stuff together.
Do not insert batteries with the (+) and (-) reversed.
Do not disassemble, dispose in fire, heat or short circuit.
Do not put the battery in a charger or equipment with wrong terminals connected.
| ITEM | SPECIFICATION | REMARK |
| Battery Cell Model | 502535 | |
| Nominal Voltage | 3.7V | |
| Nominal Capacity | 400mAh | Standard discharge at 0.2C |
| Standard Discharge Current | 0.2C (80mA) | |
| Max Continuous Discharge Current | 1C(400mA) | |
| Peak Current | 2A,adjustable | last time≤1s |
| Charge Voltage | 8.4V | |
| Standard Charge Current | 0.2C(80mA) | Charge time : Approx 7.0h |
| Fast Charge Current | 0.5C(200mA) | Charge time : Approx 3.0h |
| Inner Resistance | ≤170mΩ | AC 1KHZ after 50% charge |
| Cycle life | ≥500 times until 70% capacity | |
| Ref. Discharge Cut off Voltage | 3.0V | |
| Charge Temperature Range | 0°C to 45°C | |
| Discharge Temperature Range | -20°C to 60°C | |
| Recommended Storage Temperature | 23 ± 5°C | |
| Weight | Approx. 10g | |
| Configuration | 1S1P | |
| Size | T*W*L=5.0*25*37.5mm | With PCM |
| Connector/Terminal | No | |
| Battery PCM function | YES | |
| Battery Warranty | 12 months |
Li polymer battery pack widely used in:
GPS, POS Terminal, Wireless headset, Communication Tool, Heating Blanket Smart Phone
Learning Tools, Medical Device, Personal Care Scanner Vaccum Packaging, Lamp, Monitor
Portable DVD, Smart Home, Tablet PC, Pulse Monitoring, Moblie, Power Bank, Camera
Shenzhen Gold Power Energy have over 1000models lithium polymer batteries.
Capacity range from 20mAh to 5000mAh, can meet your different kinds of applications.
Following are some of hot-sale models for your reference.
Other Lithium polymer Battery with KC certificates list hot saled in Korea market
| Model | Voltage | Capacity | Certificates |
| 252940 | 3.7V | 260mAh | UL/CB/KC/CE/FCC/ROHS/UN38.3/MSDS |
| 301318 | 3.7V | 50mAh | KC/CB/UN38.3/MSDS |
| 301525 | 3.7V | 80mAh | CB/KC/UN38.3 |
| 302540 | 3.7V | 280mAh | KC/CE/FCC/ROHS/UN38.3/MSDS |
| 303030 | 3.7V | 250mAh | UL/KC/IEC62133/CE/ROHS/UN38.3/MSDS |
| 303450 | 3.7V | 500mAh | KC/CE/80℃ high temperature report/CQC |
| 321618 | 3.7V | 75mAh | KC/IEC62133/CE/UN38.3/MSDS |
| 331422 | 3.7V | 80mAh | KC/CE/PSE/UN38.3/MSDS |
| 351325 | 3.7V | 90mAh | KC/ROHS/FCC/UN38.3/MSDS |
| 351422 | 3.7V | 80mAh | KC |
| 380926 | 3.7V | 60mAh | KC/IEC62133/UN38.3/MSDS |
| 400920 | 3.7V | 55mAh | UL/KC/MSDS |
| 401020 | 3.7V | 55mAh | KC/CE |
| 401020 | 3.7V | 60mAh | KC |
| 401025 | 3.7V | 70mAh | KC/CE |
| 401119 | 3.7V | 55mAh | KC/CE |
| 401121 | 3.7V | 55mAh | KC/IEC62133/ROHS/UN38.3/MSDS |
| 401214 | 3.7V | 50mAh | KC/CE |
| 401230 | 3.7V | 120mAh | UL/KC/CE/ROHS/UN38.3/MSDS |
| 402030 | 3.7V | 185mAh | UL/KC/IEC62133/CE/FCC/UN38.3/MSDS |
| 402525 | 3.7V | 250mAh | KC/CE |
| 403030 | 3.7V | 300mAh | KC/CE/UN38.3/MSDS |
| 432526 | 3.8V | 320mAh | KC/CB/IEC62133/UN38.3/MSDS |
| 451220 | 3.7V | 80mAh | KC |
| 481153 | 3.7V | 300mAh | KC/CE/UN62133/UN38.3/MSDS |
| 481159 | 3.7V | 300mAh | KC/CE/EN62133/UN38.3/MSDS |
| 501012 | 3.7V | 45mAh | KC/CE |
| 501020 | 3.7V | 80mAh | UL/KC/IEC62133/CE/UN38.3/MSDS |
| 501040 | 3.7V | 150mAh | KC |
| 501130 | 3.7V | 150mAh | UL/KC/CB/CE/ROHS/UN38.3/MSDS |
| 501220 | 3.7V | 100mAh | UL/KC/CE/ROHS/MSDS |
| 501235 | 3.7V | 160mAh | KC/CE/ROHS/MSDS |
| 501332 | 3.7V | 200mAh | KC/ROHS/MSDS |
| 501535 | 3.7V | 240mAh | KC/CE |
| 502030 | 3.7V | 250mAh | UL/KC/IEC62133/CE/ROHS/UN38.3/MSDS |
| 502035 | 3.7V | 300mAh | UL/KC/CE/ROHS/IEC62133/FCC/UN38.3/MSDS |
| 503035 | 3.7V | 500mAh | UL/KC/IEC62133/CE/UN38.3/MSDS |
| 503048 | 3.7V | 750mAh | UL/KC/CE/ROHS/80℃ high temperature test/MSDS |
| 503450 | 3.7V | 1000mAh | UL/KC/CB/IEC62133/CE/FCC/ROHS/UN38.3/MSDS |
| 504065 | 3.7V | 1500mAh | UL/KC/CB/IEC62133/CE/FCC/ROHS/UN38.3/MSDS |
| 522728 | 3.7V | 460mAh | KC |
| 551245 | 3.7V | 250mAh | UL/KC/IEC62133/EN62133/PSE/FCC/ROHS |
| 553443 | 3.7V | 900mAh | KC/PSE/UN38.3/MSDS |
| 555056 | 3.7V | 2100mAh | KC |
| 601430 | 3.7V | 210mAh | KC/CE/ROHS |
| 601750 | 3.7V | 500mAh | KC |
| 602030 | 3.7V | 300mAh | UL/KC/IEC62133/CE/ROHS/UN38.3/MSDS |
| 602035 | 3.7V | 400mAh | KC/CE |
| 602040 | 3.7V | 450mAh | UL/KC/CE/ROHS |
| 602045 | 3.7V | 500mAh | KC/CE/FCC |
| 602540 | 3.7V | 600mAh | KC/FCC/IEC62133/UN38.3/MSDS |
| 603030 | 3.7V | 500mAh | KC/CE/EN62133/ROHS/UN38.3/MSDS |
| 603258-4S | 14.8V | 1200mAh | KC/CB/IEC62133 |
| 603450 | 3.7V | 1100mAh | UL/KC/CE/IEC62133/UN38.3/MSDS |
| 603450 | 3.7V | 1200mAh | UL/CE/KC |
| 651248 | 3.7V | 330mAh | KC/EN62133 |
| 653040 | 3.7V | 800mAh | KC/MSDS |
| 702030 | 3.7V | 380mAh | KC/CE |
| 702035 | 3.7V | 380mAh | KC |
| 702040 | 3.7V | 500mAh | KC/CE |
| 702040 | 3.7V | 600mAh | KC/MSDS |
| 702050 | 3.7V | 750mAh | KC/CE |
| 702525 | 3.7V | 400mAh | KC |
| 702535 | 3.7V | 600mAh | KC |
| 703045 | 3.7V | 900mAh | KC/UN38.3/MSDS |
| 751818 | 3.7V | 220mAh | UL/KC/EN62133/ROHS/UN38.3/MSDS |
| 801350 | 3.7V | 500mAh | KC/UN38.3/MSDS |
| 801630 | 3.7V | 300mAh | KC/CE |
| 802025 | 3.7V | 400mAh | KC/UN38.3/MSDS |
| 802540 | 3.7V | 800mAh | KC/FCC/CE/ROHS |
| 803040 | 3.7V | 1000mAh | UL/KC/CE/ROHS/UN38.3/MSDS |
| 803048 | 3.7V | 1200mAh | KC/CE |
| 804459 | 3.7V | 2400mAh | KC/CB/UN38.3/MSDS |
| 8233125 | 3.7V | 5500mAh | KC/UN38.3/MSDS |
| 901332 | 3.7V | 300mAh | KC/CE |
| 902030 | 3.7V | 480mAh | KC/MSDS |
| 902030 | 3.7V | 500mAh | KC/CE/ROHS/UN38.3/MSDS |
| 902040 | 3.7V | 700mAh | KC/CE |
| 902630 | 3.7V | 700mAh | KC |
| 972829 | 3.7V | 850mAh | KC |
| 102050 | 3.7V | 1000mAh | UL/KC/IEC62133/CE/FCC/ROHS/UN38.3/MSDS |
| 103035 | 3.7V | 1100mAh | KC/CE |
| 103040 | 3.7V | 1200mAh | CB/KC/IEC62133/EN62133/CE/FCC/ROHS/UN38.3/MSDS |
| 103450 | 3.7V | 1800mAh | UL/KC |
| 105050 | 3.7V | 3000mAh | CB/KC/IEC62133/CE |
Lithium Polymer battery pack 7.4V 1300mAh 883735 2cells in series li polymer Rechargeable battery
Why Choose us:
Technology
R&D
Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.
We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
|
|
