Product Details:
|
| Battery Type: | Lithium Polymer Battery Pack | Voltage: | 3.7V |
|---|---|---|---|
| Capacity: | 45mAh | Cycle Life: | 500times |
| Weight: | 5g | Aapplication: | TWS Earbuds, Smart Phone, Ear Plugs, Headset |
| High Light: | 45mAh Li Polymer Battery,500times Lithium Polymer Battery,501012 Lithium Polymer Battery |
||
Small size mini Lithium Polymer Battery 3.7V Lipo Battery 501012 45mAh
|
ITEM
|
SPECIFICATION
|
REMARK
|
|
Nominal Voltage
|
3.7V
|
|
|
Nominal Capacity
|
45mAh
|
Standard discharge at 0.2c
|
|
Standard discharge Current
|
0.2C (100mA)
|
|
|
Max discharge Current
|
1C (500mA)
|
|
|
Charge Voltage
|
4.2V
|
|
|
Standard Charge Current
|
0.2C (250mA)
|
charge time Approx 5.0h
|
|
Ref.Discharge Cut off Voltage
|
2.45V
|
|
|
Operating temperature
|
Charging : 0℃ ~ 55℃
|
|
|
Discharging : -20℃ ~ 65℃
|
|
|
|
Configuration
|
1S1P
|
|
|
Battery Cell Model
|
501012
|
|
|
Size
|
T*W*L=5.0*10*12mm
|
With PCM
|
|
Connector /Terminal
|
Customized
|
|
|
Battery PCM function
|
Over charge/discharge,over urrent,short circuit protection
|
|
|
Reference Certification
|
CB, IEC62133, KC, CE, UN38.3, MSDS.
|
Other hot-sale Li polymer battery pack , with stocks can accept mini order:
Shenzhen Gold Power Energy have over 1000models lithium polymer batteries.
Capacity range from 20mAh to 5000mAh, can meet your different kinds of applications.

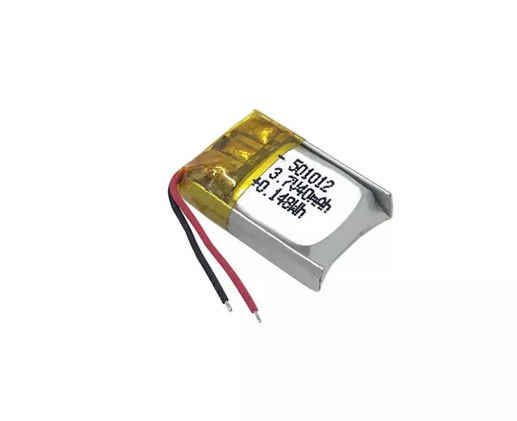

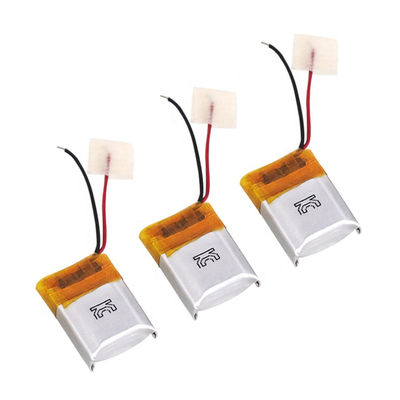

Images for Ultra small Li-Polymer 3.7V 501012 45mah lithium ion polymer battery pack
Standard packaging for 3.7V 7.4V lithium polymer battery pack
FAQ:
Q: Can I use Lithium batteries mixing with other battery types?
A: If different types of batteries are used together, or new batteries are used with old ones, the difference in characteristics of voltage, capacity, etc. may cause over-discharge of the battery which is exhausted first, leading to swelling, bursting or fire.
Q: What will happen if the batteries with different capacity are packed together?
A: If the batteries with different capacity or new and old batteries are used together, leakage, zero voltage and so on might happen. If the batteries are rechargeable and are being charged, some batteries are overcharged and other batteries is not in full charged state. During the discharge, some batteries cannot discharge fully and other batteries might over discharge. This way, the battery will be damaged.
Q: What are the possible reasons for zero voltage or low voltage of the battery pack?
A: Short circuit or open circuit of the connector or wrong connection, de-soldering or cold solder joint between the batteries and lead, wrong connection between the batteries.
Q: What are the possible reasons if the rechargeable battery or rechargeable battery pack cannot be charged?
A: The battery is zero voltage or there is battery with zero voltage in the battery pack.
There is wrong connection inside the battery pack.
There is abnormally of electronic components and/or PCB inside the battery pack.
There is failure in charger.
Outer element causes the charging efficiency to be too low, such as extremely low or high temperature.
