| Model Number: | LP505068 4S1P li polymer battery |
| MOQ: | 1000pieces |
| Packaging Details: | Bulk packing |
| Payment Terms: | T/T |

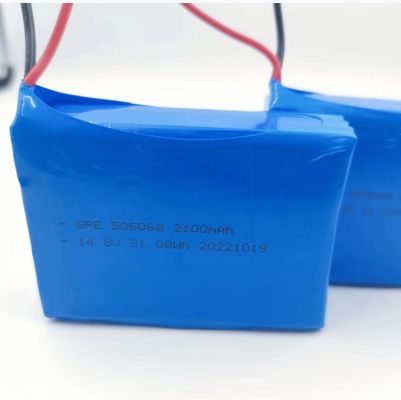

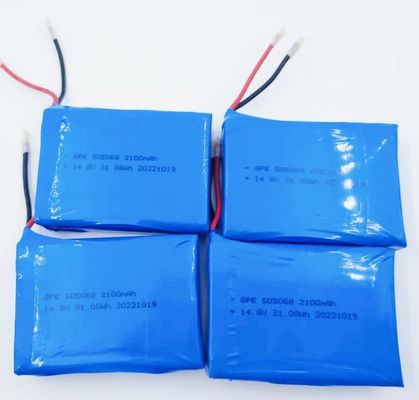

Long cycle life 14.8V 2100mAh lipo battery pack
|
No |
Item |
Performance |
Remarks |
| 1 |
Rated Capacity |
2100mAh |
0.2C5A Standard discharge
|
| 2 |
Minimum Capacity |
2100mAh |
0.2C5A Standard discharge |
| 3 |
Normal Voltage |
14.80V |
Mean Operation Voltage |
| 4 |
O.C.V |
14.80～16.4V | |
| 5 |
Limited charging voltage |
16.80V | |
| 6 |
discharge cut-off voltage |
12V | |
| 7 |
Standard charging method |
0.2C5A constant current charge to 16.8V, then constant voltage 16.8V charge till charged current declines to ≤ 0.01C5A | |
| 8 |
charging Time |
Standard charge:5.5～6.5 h | 0.2C5A |
| Rapid charge:1.5～2h | 1.0C5A | ||
| 9 |
Maximum charge current |
2100mA | 1.0C5A |
| 10 |
Standard discharging Current |
420mA | 0.2C5A |
| 11 |
Maximum discharge current |
2100mA | 1.0C5A |
| 12 |
Impedance |
≤320 m Ω | |
| 13 |
Battery weight |
Approx.148g | |
| 14 |
Assembled Mode |
4S | |
| 15 |
Operating environment |
Charging: 5℃～45℃ Discharging: -10℃～60℃ 60±25%R.H. |
|
|
16
|
Storage Temperature
|
Storage temperature: -20~25℃ Storage Humidity: 60±25%R.H. <1month:-20°C ~ +40°C <6month:-20°C ~ +30°C |
Spare battery within six months to recharge the battery to activate at least once
|
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.
We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
|
|
