| Model Number: | LFP80Ah |
| MOQ: | 100pieces |
| Packaging Details: | Bulk packing |
| Payment Terms: | T/T |
LFP prismatic cell Lithium Iron Phosphate battery features
1. Lighter in weight, heavier on power than lead acid battery.
2. Use a grade cells. More than 6000 cycle times.
3. Max discharge continuous current, 1C TO 3C 5C.
4. Maintenance free. Can connect in parallel and series.
5. Safer performance. batteries have passed different safety tests.
|
3.2V 80ah lifepo4 Pouch cell
|
|
|
battery type
|
lifepo4 lithium ion battery
|
|
Nominal voltage
|
3.2V
|
|
Nominal Capacity
|
80AH
|
|
Max Charge current
|
≤1C
|
|
Size
|
36*130*170mm
|
|
Max discharge current
|
≤1C
|
|
weight
|
1.68Kg
|
|
Charge working Temperature
|
0～45°C
|
|
Discharge working Temperature
|
-20~55 °C
|
|
Storage temperature
|
-20～60°C
|
| Model No. | Standard Voltage | Standard Capacity(Ah) | Impendence (mΩ) | Weight(Kg) | Height(mm) | Width(mm) | Thickness(mm) |
| LFP50 | 3.2V | 50Ah | ≤0.7mΩ | 1.4Kg | 185.3±0.5 | 135.3±0.5 | 29.3±0.5 |
| LFP80 | 3.2V | 80Ah | ≤0.5mΩ | 1.68Kg | 170±0.5 | 130.3±0.5 | 36.7±0.5 |
| LFP90 | 3.2V | 90Ah | ≤0.5mΩ | 2.0Kg | 200.5±0.5 | 130.3±0.5 | 36.7±0.5 |
| LFP100 | 3.2V | 100Ah | ≤0.5mΩ | 1.92Kg | 118±0.5 | 160±0.5 | 49.9±0.5 |
| LFP105 | 3.2V | 105Ah | ≤0.5mΩ | 1.98Kg | 200.5±0.5 | 130±0.5 | 36.7±0.5 |
| LFP173 | 3.2V | 173Ah | ≤0.5mΩ | 3.25Kg | 207.2±0.5 | 173.9±0.5 | 41.0±0.5 |
| LFP230 | 3.2V | 230Ah | ≤0.25mΩ | 4.11Kg | 207.0±0.5 | 173.9±0.5 | 54.0±0.5 |
| LFP280 | 3.2V | 280Ah | ≤0.25mΩ | 5.42Kg | 207.5±0.5 | 173.7±0.5 | 72.0±0.5 |
| LFP304 | 3.2V | 304Ah | ≤0.5mΩ | 5.49Kg | 208.8±0.5 | 173.5±0.5 | 72.0±0.5 |

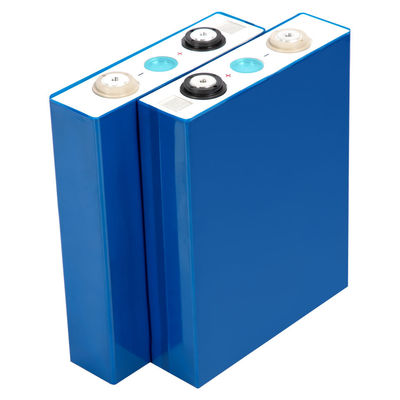

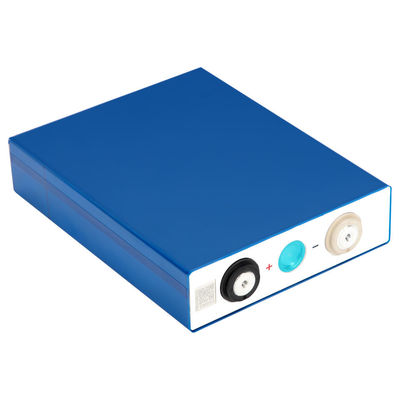

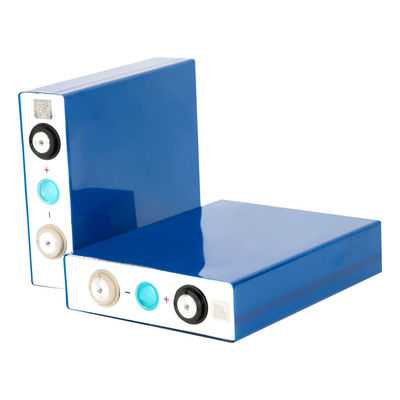

Images for: LFP prismatic cell 3.2V 80AH LiFePO4 Battery Cell
Over 6000 cycle life
Battery using Cautions:
1.Do not expose to, dispose of the battery in fire.
2.Do not put the battery in a charger or equipment with wrong terminals connected.
3.Avoid shorting the battery
4.Avoid excessive physical shock or vibration.
5.Do not disassemble or deform the battery.
6.Do not immerse in water.
7.Do not use the battery mixed with other different make, type, or model batteries.
8.Keep out of the reach of children.
Why Choose us:
Technology
R&D
Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
|
|
