Model Number: | LFP50Ah |
MOQ: | 100pieces |
Packaging Details: | Bulk packing |
Payment Terms: | T/T |
1. Test environmental conditions
Temperature: (25±2)℃ Relative humidity: 15%~90% Atmospheric pressure: 86KPa~106KPa
2. Standard charging
Under the condition of (25±2)C, charge the battery with a constant current of 0.5C(A) to the charging limit voltage of 3.65V, and then charge the battery with a constant voltage until To the current less than 0.05C (A).
3. Standard discharge
Under the condition of (25 ± 2) ℃, the battery was discharged with a constant current of 0.5C(A) to the end voltage of 2.5V.

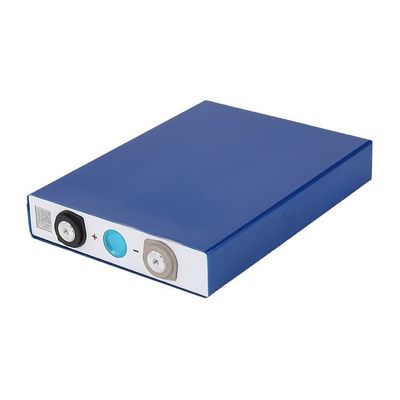

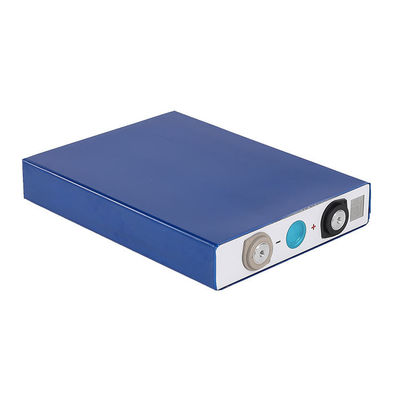

LFP prismatic cell 3.2V 50Ah features
Typical Capacity
|
50Ah
|
Typical Voltage
|
3.2V
|
AC Impedance Resistance
|
≤0.7mΩ
|
Standard charge and discharge Charge/Discharge Current
|
0.5C/0.5C
|
Standard charge and discharge Charge/Discharge Cut-off Voltage
|
3.65V/2.5V
|
Continuous Charge/Discharge Current
|
1C/1C
|
Pulse Charge/Discharge Ccurrent(30s)
|
1C/2C
|
Recommended SOC window
|
10%~90%
|
Charging Working Temperature
|
0℃~55℃
|
Discharging Working Temperature
|
-20℃~55℃
|
Cycle Life
|
≥ 6000 times
|
Other hot sale lithium Iron Phosphate cylindrical rechargeable battery cell.
Model No. | Standard Voltage | Standard Capacity(Ah) | Impendence (mΩ) | Weight(Kg) | Height(mm) | Width(mm) | Thickness(mm) |
LFP50 | 3.2V | 50Ah | ≤0.7mΩ | 1.4Kg | 185.3±0.5 | 135.3±0.5 | 29.3±0.5 |
LFP80 | 3.2V | 80Ah | ≤0.5mΩ | 1.68Kg | 170±0.5 | 130.3±0.5 | 36.7±0.5 |
LFP90 | 3.2V | 90Ah | ≤0.5mΩ | 2.0Kg | 200.5±0.5 | 130.3±0.5 | 36.7±0.5 |
LFP100 | 3.2V | 100Ah | ≤0.5mΩ | 1.92Kg | 118±0.5 | 160±0.5 | 49.9±0.5 |
LFP105 | 3.2V | 105Ah | ≤0.5mΩ | 1.98Kg | 200.5±0.5 | 130±0.5 | 36.7±0.5 |
LFP173 | 3.2V | 173Ah | ≤0.5mΩ | 3.25Kg | 207.2±0.5 | 173.9±0.5 | 41.0±0.5 |
LFP230 | 3.2V | 230Ah | ≤0.25mΩ | 4.11Kg | 207.0±0.5 | 173.9±0.5 | 54.0±0.5 |
LFP280 | 3.2V | 280Ah | ≤0.25mΩ | 5.42Kg | 207.5±0.5 | 173.7±0.5 | 72.0±0.5 |
LFP304 | 3.2V | 304Ah | ≤0.5mΩ | 5.49Kg | 208.8±0.5 | 173.5±0.5 | 72.0±0.5 |
Images for: LiFePO4 105AH Prismatic LiFePO4 Battery Cell
Why Choose us:
Technology
R&D
Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
