Product Details:
|
| Battery Type: | Lithium Iron Phosphate Battery Pack | Model: | 18650 |
|---|---|---|---|
| Nominal Voltage: | 12.8Volt 12V | Nominal Capacity: | 1800mAh 2000mAh |
| Cycle Life: | 2000times | Application: | Electronic Products, Power Tool, Solar Light |
| High Light: | 18650 12v Lifepo4 Battery Pack,2000times Lithium Iron Phosphate Battery Pack |
||
IFR18650 Lifepo4 cylindrical battery 12.8V2000mAh lithium battery packs specification:
|
Model
|
IFR18650-4S1P
|
|
Voltage
|
12.8V
|
|
Capacity
|
1500ｍAh
|
|
Charge cut-off voltage
|
14.6V
|
|
End of discharge voltage
|
10.0V
|
|
Standard charge current
|
0.2C
|
|
Standard discharge current
|
0.2C
|
|
Peak discharge current
|
3C
|
|
Weight
|
about 750g
|
|
Size
|
60*７0*60mm
|
|
Temperature range
|
from -20 to 80°C
|
|
Cycle life
|
over 2500 times
|
|
Warranty
|
3years
|
|
Apllication
|
Solar LED light
|
Related 18650 Battery pack:
| 18650-1S1P | 3.7V 2000mAh | 3.7V 2200mAh | 3.7V 2500mAh | 3.7V 2600mAh |
| 18650-2S1P | 7.4V 2600mAh | 7.4V 2800mAh | 7.4V 2900mAh | 7.4V 3000mAh |
| 18650-2S1P | 7.4V 3200mAh | 7.4V 3300mAh | 7.4V 3400mAh | 7.4V 3500mAh |
| 18650-3S1P | 11.1V 2000mAh | 11.1V 2200mAh | 11.1V 2500mAh | 11.1V 2600mAh |
| 18650-3S2P | 11.1V 5200mAh | 11.1V 5600mAh | 11.1V 5800mAh | 11.1V 6000mAh |
| 18650-3S2P | 11.1V 6400mAh | 11.1V 6600mAh | 11.1V 6800mAh | 11.1V 7000mAh |
| 18650-4S3P | 14.8V 6600mAh | 14.8V 7500mAh | 14.8V 7800mAh | 14.8V 9000mAh |
| 18650-10S4P | 36V 8800mAh | 36V 9600mAh | 36V 10000mAh | 36V 10400mAh |

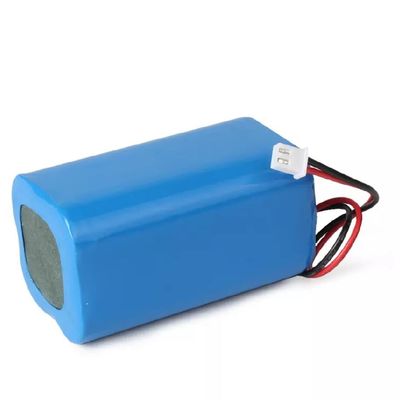

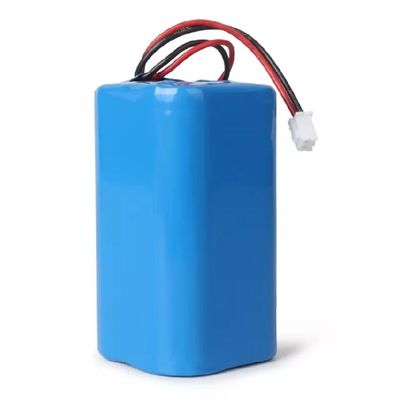

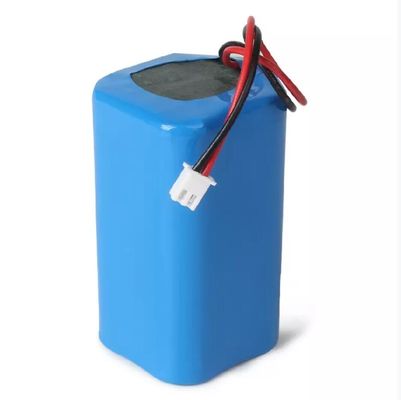

Detailed images: 12V 2000mAh lithium Lifepo4 battery pack IFR18650 lithium iron rechargeable batteries
FAQ:
Q: Can I use Lithium batteries mixing with other battery types?
A: If different types of batteries are used together, or new batteries are used with old ones, the difference in characteristics of voltage, capacity, etc. may cause over-discharge of the battery which is exhausted first, leading to swelling, bursting or fire.
Q: What will happen if the batteries with different capacity are packed together?
A: If the batteries with different capacity or new and old batteries are used together, leakage, zero voltage and so on might happen. If the batteries are rechargeable and are being charged, some batteries are overcharged and other batteries is not in full charged state. During the discharge, some batteries cannot discharge fully and other batteries might over discharge. This way, the battery will be damaged.
Q: What are the possible reasons for zero voltage or low voltage of the battery pack?
A: Short circuit or open circuit of the connector or wrong connection, de-soldering or cold solder joint between the batteries and lead, wrong connection between the batteries.
Q: What are the possible reasons if the rechargeable battery or rechargeable battery pack cannot be charged?
A: The battery is zero voltage or there is battery with zero voltage in the battery pack.
There is wrong connection inside the battery pack.
There is abnormally of electronic components and/or PCB inside the battery pack.
There is failure in charger.
Outer element causes the charging efficiency to be too low, such as extremely low or high temperature.
Customized lithium rechargeable battery packs
Why Choose us:
Technology
R&D
Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.
Quality Control
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
