| Model Number: | ICR18650-4S1P |
| MOQ: | 500pieces |
| Packaging Details: | Bulk packing |
| Payment Terms: | T/T |
18650 Li ion cylindrical battery 14.8V 3000mAh lithium battery pack specification:
|
Lithium-ion 18650 battery pack 14.8V 3.0Ah rechargeable battery for sweeper
|
||
|
No.
|
Item
|
Specifications
|
|
1
|
Item Name
|
14.8V 3000mAh
|
|
2
|
Model Number
|
18650-4S1P
|
|
3
|
Nominal Voltage
|
14.8V
|
|
4
|
Nominal Capacity
|
3Ah
|
|
5
|
Overcharge Protection Voltage
|
16.8V
|
|
6
|
Overdischarge Protection Voltage
|
11.2V
|
|
7
|
Continuous Discharge Current
|
≤3A
|
|
8
|
Service Cycle Life
|
≥500 times
|
|
9
|
Charge Temperature
|
0℃～45℃
|
|
10
|
Discharge Temperature
|
–20℃～60℃
|
|
11
|
Storage Temperature
|
–20℃～35℃
|
|
12
|
Protectiion Temperature
|
70℃±5
|
|
13
|
Weight (g)
|
≈220g
|
|
14
|
Dimension (mm)
|
40*40*70mm
|
|
15
|
Application
|
The integration of solar lights, solar lights, LED outdoor lamp, landscape lamp, garden lamp, lamp, lamp box, led billboards,
radio monitoring equipment, mining, medical equipment, mechanical equipment, instrumentation, communications equipment, communication base station etc.. |
Related 18650 Battery pack:
| 18650-1S1P | 3.7V 2000mAh | 3.7V 2200mAh | 3.7V 2500mAh | 3.7V 2600mAh |
| 18650-2S1P | 7.4V 2600mAh | 7.4V 2800mAh | 7.4V 2900mAh | 7.4V 3000mAh |
| 18650-2S1P | 7.4V 3200mAh | 7.4V 3300mAh | 7.4V 3400mAh | 7.4V 3500mAh |
| 18650-3S1P | 11.1V 2000mAh | 11.1V 2200mAh | 11.1V 2500mAh | 11.1V 2600mAh |
| 18650-3S2P | 11.1V 5200mAh | 11.1V 5600mAh | 11.1V 5800mAh | 11.1V 6000mAh |
| 18650-3S2P | 11.1V 6400mAh | 11.1V 6600mAh | 11.1V 6800mAh | 11.1V 7000mAh |
| 18650-4S3P | 14.8V 6600mAh | 14.8V 7500mAh | 14.8V 7800mAh | 14.8V 9000mAh |
| 18650-10S4P | 36V 8800mAh | 36V 9600mAh | 36V 10000mAh | 36V 10400mAh |

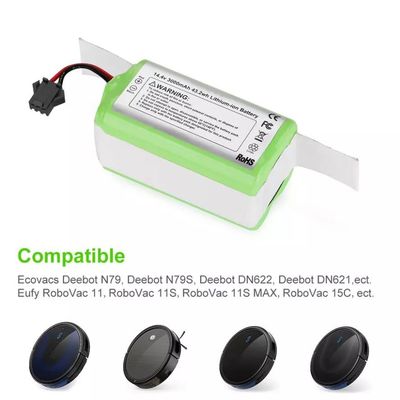

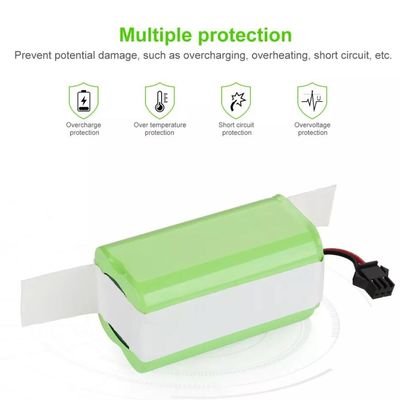

Detailed images for 14.8V3000mAh lithium ion battery pack ICR18650 li-ion rechargeable batteries
FAQ:
Q: Can I use Lithium batteries mixing with other battery types?
A: If different types of batteries are used together, or new batteries are used with old ones, the difference in characteristics of voltage, capacity, etc. may cause over-discharge of the battery which is exhausted first, leading to swelling, bursting or fire.
Q: What will happen if the batteries with different capacity are packed together?
A: If the batteries with different capacity or new and old batteries are used together, leakage, zero voltage and so on might happen. If the batteries are rechargeable and are being charged, some batteries are overcharged and other batteries is not in full charged state. During the discharge, some batteries cannot discharge fully and other batteries might over discharge. This way, the battery will be damaged.
Q: What are the possible reasons for zero voltage or low voltage of the battery pack?
A: Short circuit or open circuit of the connector or wrong connection, de-soldering or cold solder joint between the batteries and lead, wrong connection between the batteries.
Q: What are the possible reasons if the rechargeable battery or rechargeable battery pack cannot be charged?
A: The battery is zero voltage or there is battery with zero voltage in the battery pack.
There is wrong connection inside the battery pack.
There is abnormally of electronic components and/or PCB inside the battery pack.
There is failure in charger.
Outer element causes the charging efficiency to be too low, such as extremely low or high temperature.
Customized lithium rechargeable battery packs
Why Choose us:
Technology
R&D
Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.
Quality Control
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.
We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
|
|
