Model Number: | LP5565125 li polymer battery |
MOQ: | 1000pieces |
Packaging Details: | Bulk packing |
Payment Terms: | T/T |
5565125 11.1 volt 5700mAh Rechargeable Li-pol Battery Pack
Custom Rechargeable Lithium Polymer Battery Pack 11.1V 5.7Ah Lipo Battery
Normal parameters for 14.8V li ion polymer rechargeable battery
|
||
NO.
|
Item
|
General Parameter
|
1
|
Type
|
11.1v Lithium polymer Battery Pack
|
2
|
Model
|
5565125 4S1P
|
3
|
Casing material for single cell
|
welding
|
4
|
Standard capacity(0.2C5A)
|
5.7Ah
|
5
|
Rated voltage
|
12V
|
6
|
Max.charge voltage
|
12.6V
|
7
|
Cut-off voltage
|
9.0V
|
8
|
Standard charge current
|
3A /Customized
|
9
|
Max continuous discharge current
|
5.7A /Customized
|
10
|
Peak discharge current
|
15A /Customized
|
11
|
Battery dimension
|
22.5mm* 65mm*127mm / customized
|
12
|
(Approx.)Total weight(Approx.)
|
about 0.6KG
|
13
|
Standard charging temperature
|
0℃~45℃
|
14
|
Discharge temperature
|
-20℃~60℃
|
15
|
Storage temperature
|
-20℃~45℃
|
16
|
Cycle life
|
>500 times
|
17
|
Case
|
blue PVC wrap
|
18
|
Option
|
Connectors/other Capacity
|
Shenzhen Gold Power Energy have over 1000models lithium polymer batteries.
Capacity range from 20mAh to 5000mAh, can meet your different kinds of applications.
Following are some of hot-sale models for your reference.
Model | Cell Dimension | With PCM Dimension | Capacity |
302025 | 3.0*20*25mm | 3.2*21*27.5mm | 3.7V 100mAh |
302530 | 3.0*25*30mm | 3.2*26*32.5mm | 3.7V 180mAh |
401824 | 4.0*18*24mm | 4.2*19*26.5mm | 3.7V 180mAh |
402525 | 4.0*25*25mm | 4.2*26*27.5mm | 3.7V 200mAh |
483450 | 4.8*34*50mm | 5.0*35*52.5mm | 3.7V 850mAh |
502030 | 5.0*20*30mm | 5.2*21*32.5mm | 3.7V 240mAh |
502525 | 5.0*25*25mm | 5.2*26*27.5mm | 3.7V 180mAh |
503030 | 5.0*30*30mm | 5.2*31*32.5mm | 3.7V 430mAh |
523450 | 5.2*34*50mm | 5.4*35*52.5mm | 3.7V 1000mAh |
553444 | 5.5*34*44mm | 5.7*35*46.5mm | 3.7V 850mAh |
553640 | 5.5*36*40mm | 5.7*37*42.5mm | 3.7V 850mAh |
553759 | 5.5*37*59mm | 5.7*38*61.5mm | 3.7V 1400mAh |
602030 | 6.0*20*30mm | 6.2*21*32.5mm | 3.7V 300mAh |
602240 | 6.0*22*40mm | 6.2*23*42.5mm | 3.7V 500mAh |
602535 | 6.0*25*35mm | 6.2*26*37.5mm | 3.7V 500mAh |
602663 | 6.0*26*63mm | 6.2*27*65.5mm | 3.7V 1000mAh |
603030 | 6.0*30*30mm | 6.2*31*32.5mm | 3.7V 520mAh |
603040 | 6.0*30*40mm | 6.2*31*42.5mm | 3.7V 750mAh |
603048 | 6.0*30*48mm | 6.2*31*50.5mm | 3.7V 900mAh |
603450 | 6.0*34*50mm | 6.2*35*52.5mm | 3.7v 1200mAh |
656090 | 6.5*60*90mm | 6.5*60*92.5mm | 3.7V 5000mAh |
702040 | 7.0*21*40mm | 7.2*22*42.5mm | 3.7V 500mAh |
753048 | 7.5*30*48mm | 7.7*31*50.5mm | 3.7V 1200mAh |
803035 | 8.0*30*35mm | 8.2*31*37.5mm | 3.7V 800mAh |
855465 | 8.5*54*65mm | 8.5*54*65mm | 3.7V 4000mAh |
863040 | 8.6*30*40mm | 8.8*30*42.5mm | 3.7V 1000mAh |
904060 | 9*40*60mm | 9.2*40*62.5mm | 3.7V 2500mAh |
883760 | 8.8*37*60mm | 9*57*51.6mm | 3.7V 2000mAh |
103048 | 10.2*30*48mm | 10.2*30*50.5mm | 3.7V 1500mAh |
103040 | 10.2*30*40mm | 10.2*30*42.5mm | 3.7V 1200mAh |
114261 | 11*42*61mm | 11*42*63.5mm | 3.7V 3400mAh |
122773 | 12*27*73mm | 12*27*75.5mm | 3.7V 2400mAh |

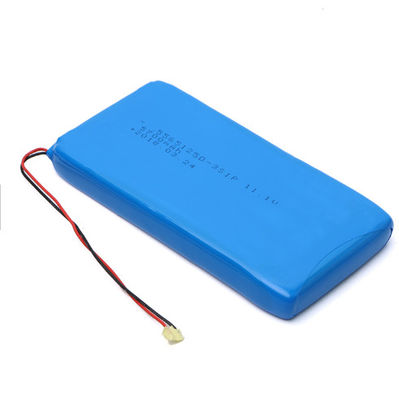

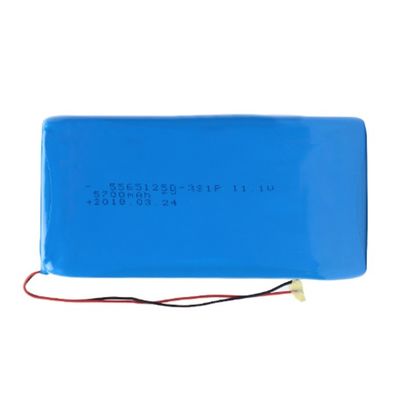

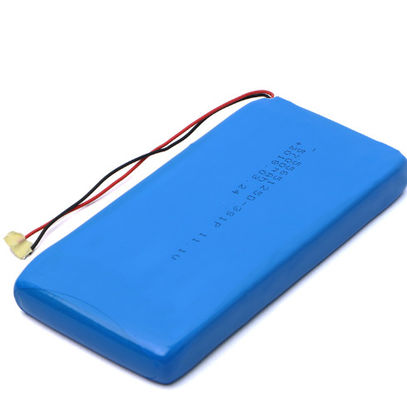

Images for Rechargeable lion Polymer battery 11.1V 5700mAh li polymer battery pack
Standard packaging for lithium polymer battery pack
Why Choose us:
Technology
R&D
Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.
Quality Control
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.
We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
