Product Details:
|
| Battery Type: | Lithium Polymer Battery | Voltage: | 3.7V |
|---|---|---|---|
| Capacity: | 400mAh | Cycle Life: | 500times |
| Size: | 7.5*20*38mm | Weight: | 8g |
| Warranty: | 1 Year | Lead Time: | 15-20days |
| PCM: | Yes | ||
| High Light: | 3.7V 400mAh Li Polymer Battery,752035 Li Polymer Battery,KC High Rate 752035 Battery |
||
KC High Rate Lipo 752035 3.7V 400mAh Li Polymer Battery For Beauty Device
| Item | Nominal Parameter | Note | |||||||||||||||||||||||||||||||
| 1. Model | 702035 | ||||||||||||||||||||||||||||||||
| 2. Nominal Capacity | 500mAh | ||||||||||||||||||||||||||||||||
| 3. Nominal Voltage | 3.7V | ||||||||||||||||||||||||||||||||
| 4. Resistance | ≤180mΩ | ||||||||||||||||||||||||||||||||
| 5. Charging Voltage | 4.2V | ||||||||||||||||||||||||||||||||
| 6. Discharging Voltage | 3.0V | ||||||||||||||||||||||||||||||||
| 9. Standard Charging Current | 100mA | 0.2C5mA, About 6H. | |||||||||||||||||||||||||||||||
| 10. Max Charging Current | 500mA | 1.0C5mA, About 1.5H. | |||||||||||||||||||||||||||||||
| 11. Standard Disharging Current | 100mA | 0.2C5mA | |||||||||||||||||||||||||||||||
| 12. Max Discharging Current | 500mA | 1.0C5mA | |||||||||||||||||||||||||||||||
| 13. Cycle Life | 500 | ≥80% of Nominal Capacity | |||||||||||||||||||||||||||||||
| 14. Operating Temperature |
Charge | 0~45℃ | |||||||||||||||||||||||||||||||
| Discharge | -10~60℃ | ||||||||||||||||||||||||||||||||
| 15. Storage | Less than 3 months | -10~40℃ | |||||||||||||||||||||||||||||||
| More than 3 month | -20~35℃ | ||||||||||||||||||||||||||||||||
| 16. Weight | 9g | ||||||||||||||||||||||||||||||||
| 17. Energy | 1.85Wh | ||||||||||||||||||||||||||||||||
| 18. Dimension | Cell | 7.5mm(T)*20mm(W)*35.5mm(L) | |||||||||||||||||||||||||||||||
| Battery-With PCM | 7.5mm(T)*20mm(W)*37.5mm(L)(with PCM) | ||||||||||||||||||||||||||||||||
Other hot-sale Li polymer battery pack models:
Shenzhen Gold Power Energy have over 1000models lithium polymer batteries.
Capacity range from 20mAh to 5000mAh, can meet your different kinds of applications.
Following are some of hot-sale models for your reference.
| Model | Dimension | With PCM Dimension | Capacity |
| 302025 | 3.0*20*25mm | 3.2*21*27.5mm | 3.7V 100mAh |
| 302530 | 3.0*25*30mm | 3.2*26*32.5mm | 3.7V 180mAh |
| 401824 | 4.0*18*24mm | 4.2*19*26.5mm | 3.7V 180mAh |
| 402525 | 4.0*25*25mm | 4.2*26*27.5mm | 3.7V 200mAh |
| 483450 | 4.8*34*50mm | 5.0*35*52.5mm | 3.7V 850mAh |
| 502030 | 5.0*20*30mm | 5.2*21*32.5mm | 3.7V 240mAh |
| 502525 | 5.0*25*25mm | 5.2*26*27.5mm | 3.7V 180mAh |
| 503030 | 5.0*30*30mm | 5.2*31*32.5mm | 3.7V 430mAh |
| 523450 | 5.2*34*50mm | 5.4*35*52.5mm | 3.7V 1000mAh |
| 553444 | 5.5*34*44mm | 5.7*35*46.5mm | 3.7V 850mAh |
| 553640 | 5.5*36*40mm | 5.7*37*42.5mm | 3.7V 850mAh |
| 553759 | 5.5*37*59mm | 5.7*38*61.5mm | 3.7V 1400mAh |
| 602030 | 6.0*20*30mm | 6.2*21*32.5mm | 3.7V 300mAh |
| 602240 | 6.0*22*40mm | 6.2*23*42.5mm | 3.7V 500mAh |
| 602535 | 6.0*25*35mm | 6.2*26*37.5mm | 3.7V 500mAh |
| 602663 | 6.0*26*63mm | 6.2*27*65.5mm | 3.7V 1000mAh |
| 603030 | 6.0*30*30mm | 6.2*31*32.5mm | 3.7V 520mAh |
| 603040 | 6.0*30*40mm | 6.2*31*42.5mm | 3.7V 750mAh |
| 603048 | 6.0*30*48mm | 6.2*31*50.5mm | 3.7V 900mAh |
| 603450 | 6.0*34*50mm | 6.2*35*52.5mm | 3.7v 1050mAh |
| 702040 | 7.0*21*40mm | 7.2*22*42.5mm | 3.7V 500mAh |
| 753048 | 7.5*30*48mm | 7.7*31*50.5mm | 3.7V 1200mAh |
| 803035 | 8.0*30*35mm | 8.2*31*37.5mm | 3.7V 800mAh |

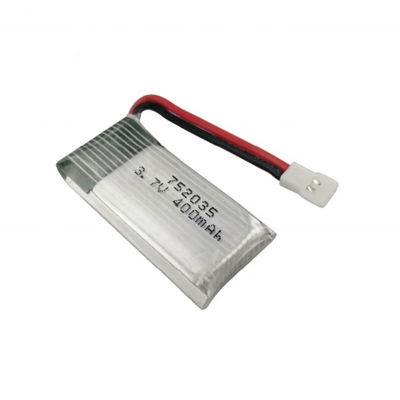

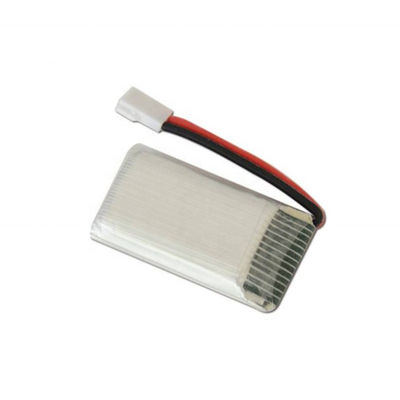

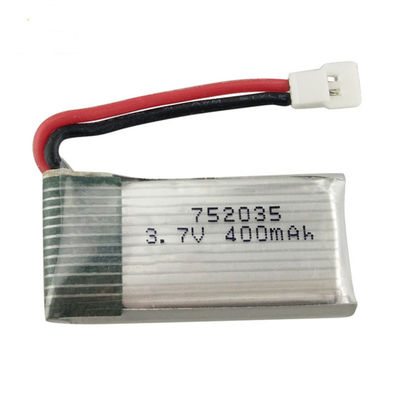

Detailed images Lithium polymer battery pack 752035 rechargeable Li-ion 3.7v 400mah lipo battery
Standard packaging for 3.7V 400mAh lithium polymer battery pack
