Li Polymer Battery
>
3.7V 90mAh Li Polymer Battery 401030 For Smart Device

3.7V 90mAh Li Polymer Battery 401030 For Smart Device

Brand Name: GPE
Model Number: LP401030
MOQ: 3000pieces
Packaging Details: Bulk packing
Payment Terms: T/T
Detail Information
Place of Origin:
China
Certification:
UN38.3, MSDS, IEC62133, RoHS
Battery Type:
Lithium Polymer Battery
Voltage:
3.7V
Capacity:
90mAh
Cycle Life:
500times
Size:
4*10*33mm
Weight:
5g
MOQ:
3000pcs
Warranty:
1 Year
Lead Time:
15-20days
PCM:
Yes
Connector:
Option
Supply Ability:
100'000Pieces daily
Highlight:

3.7V 90mAh Li Polymer Battery

,

Li Polymer Battery 401030

,

401030 Battery For Smart Device

Product Description

3.7V 401030 90mAh li polymer battery lithium battery small size for smart device



Item Rating Note
Capacity Typical 90mAh

Discharge:0.2CmA

cut off Voltage:3.0V for cell

Minimum 85mAh
Nominal Voltage Average 3.7V

Discharge:0.2CmA

cut off Voltage:3.0V for cell

AC Impedance Resistance ≤125mΩ
Discharge Cut-off Voltage 3.00V
Charge Current 16 mA Standard Charge
Charge Voltage 4.2V
Max. Charge Voltage 4.23V
Storage humidity < 75%RH Hygrometer
Max. Charge Current 90mA 1.0CmA
Max. Discharge Current 90mA 1.0 CmA
Weight Approx 2g

Operating

Temperature

Charge 0~+45°C
Discharge -20~+60°C
Storage Temperature less than 1 month -20~+45°C

Recommended storage

temperature: 20°C,at the

shipment state


Li polymer battery pack widely used in:


GPS, POS Terminal, Wireless headset, Communication Tool, Heating Blanket Smart Phone



Learning Tools, Medical Device, Personal Care Scanner Vaccum Packaging, Lamp, Monitor



Portable DVD, Smart Home, Tablet PC, Pulse Monitoring, Moblie, Power Bank, Camera



Other hot-sale Li polymer battery pack models:



Shenzhen Gold Power Energy have over 1000models lithium polymer batteries.



Capacity range from 20mAh to 5000mAh, can meet your different kinds of applications.



Following are some of hot-sale models for your reference.



Model Dimension With PCM Dimension Capacity
302025 3.0*20*25mm 3.2*21*27.5mm 3.7V 100mAh
302530 3.0*25*30mm 3.2*26*32.5mm 3.7V 180mAh
401824 4.0*18*24mm 4.2*19*26.5mm 3.7V 180mAh
402525 4.0*25*25mm 4.2*26*27.5mm 3.7V 200mAh
483450 4.8*34*50mm 5.0*35*52.5mm 3.7V 850mAh
502030 5.0*20*30mm 5.2*21*32.5mm 3.7V 240mAh
502525 5.0*25*25mm 5.2*26*27.5mm 3.7V 180mAh
503030 5.0*30*30mm 5.2*31*32.5mm 3.7V 430mAh
523450 5.2*34*50mm 5.4*35*52.5mm 3.7V 1000mAh
553444 5.5*34*44mm 5.7*35*46.5mm 3.7V 850mAh
553640 5.5*36*40mm 5.7*37*42.5mm 3.7V 850mAh
553759 5.5*37*59mm 5.7*38*61.5mm 3.7V 1400mAh
602030 6.0*20*30mm 6.2*21*32.5mm 3.7V 300mAh
602240 6.0*22*40mm 6.2*23*42.5mm 3.7V 500mAh
602535 6.0*25*35mm 6.2*26*37.5mm 3.7V 500mAh
602663 6.0*26*63mm 6.2*27*65.5mm 3.7V 1000mAh
603030 6.0*30*30mm 6.2*31*32.5mm 3.7V 520mAh
603040 6.0*30*40mm 6.2*31*42.5mm 3.7V 750mAh
603048 6.0*30*48mm 6.2*31*50.5mm 3.7V 900mAh
603450 6.0*34*50mm 6.2*35*52.5mm 3.7v 1050mAh
702040 7.0*21*40mm 7.2*22*42.5mm 3.7V 500mAh
753048 7.5*30*48mm 7.7*31*50.5mm 3.7V 1200mAh
803035 8.0*30*35mm 8.2*31*37.5mm 3.7V 800mAh

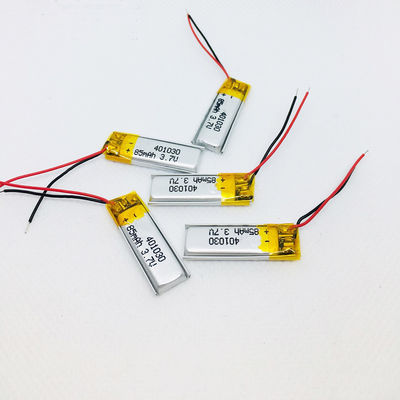

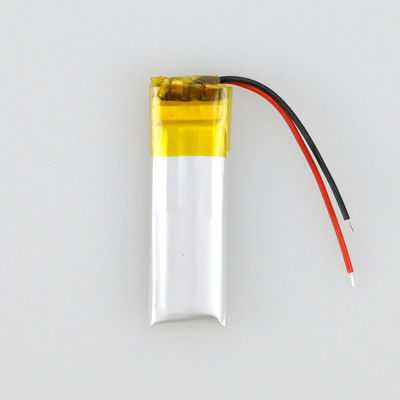

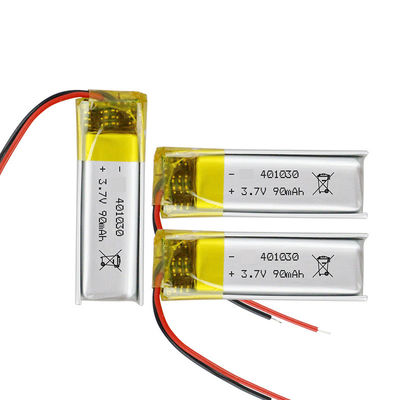

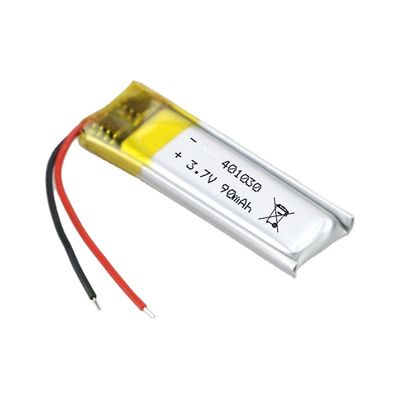

Detailed images Lithium polymer battery pack 401030 rechargeable Li-ion 3.7v 90mah lipo battery



3.7V 90mAh Li Polymer Battery 401030 For Smart Device 03.7V 90mAh Li Polymer Battery 401030 For Smart Device 1

Standard packaging for 3.7V 90mAh lithium polymer battery pack



3.7V 90mAh Li Polymer Battery 401030 For Smart Device 2



Why Choose us:



Technology

  • All-weather applicability (-30~60℃)
  • Highly safe battery design technology with the newest electrolyte and separator technology applie
  • Full Coverage of Battery Variety: Lithium ion Cylindrical battery, lithium polymer battery, LiFePO4 battery, Solar Energy Storage battery pack, square aluminum shell, Primary Battery, etc.

R&D

Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.

3.7V 90mAh Li Polymer Battery 401030 For Smart Device 3



Quality Control



3.7V 90mAh Li Polymer Battery 401030 For Smart Device 4



Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.

3.7V 90mAh Li Polymer Battery 401030 For Smart Device 5



Factory Tour:



Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.



We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,



and customized battery pack since 2001.
