Product Details:
|
| Battery Type: | Lithium Polymer Battery | Voltage: | 3.7V |
|---|---|---|---|
| Capacity: | 500mAh | Cycle Life: | 500times |
| Size: | 8*13*52mm | Weight: | 9g |
| MOQ: | 3000pcs | Warranty: | 1 Year |
| Lead Time: | 15-20days | PCM: | Yes |
| Connector: | Option | ||
| High Light: | 801350 Rechargeable Lipo Battery,Rechargeable Lipo Battery 3.7V 500mAh,3.7V 500mAh Lithium Ion Polymer Cell |
||
Lithium Polymer Battery Pack 801350 Rechargeable Li-Ion 3.7v 500mah Lipo Battery
| Items | Parameter | ||
| Battery model | GPE801350 | ||
| Nominal voltage | 3.7V | ||
| Minimum capacity | 500mAh(0.2C discharge) | ||
| Charging voltage | 4.2V | ||
| Discharging cut-off voltage | 3.0V | ||
| Standard charging | 0.2C /4.2V | ||
| Max charging | 1.0C /4.2V | ||
| Standard discharging | 0.2C/3.0V | ||
| Max discharging | continuous discharge | 1.0C/3.0V | |
| non-continuous discharge | 2.0C/3.0V | ||
| Shipment voltage | ≥3.85V | ||
| Battery pack impedance | ≤70mΩ | ||
| Operating temperature | Charging: 0°C ~ 45°C | ||
| Discharging: -20°C ~60°C | |||
|
Storage (At 50% SOC and specified temp, recoverable capacity in % vs time ) |
-10℃~25℃ | (12 months ≥85% ) | |
| -10℃ ~45℃ | (6 months ≥85% ) | ||
| -10℃~55℃ | (1 month ≥90% ) | ||
| 20±5℃ is the recommended storage temperature | |||
| Reference standard | GB/T 18287-2013,IEC/EN61960, UL1642 | ||
GPS, POS Terminal, Wireless headset, Communication Tool, Heating Blanket Smart Phone
Learning Tools, Medical Device, Personal Care Scanner Vaccum Packaging, Lamp, Monitor
Portable DVD, Smart Home, Tablet PC, Pulse Monitoring, Moblie, Power Bank, Camera
Other hot-sale Li polymer battery pack models:
Shenzhen Gold Power Energy have over 1000models lithium polymer batteries.
Capacity range from 20mAh to 5000mAh, can meet your different kinds of applications.
Following are some of hot-sale models for your reference.
| Model | Dimension | With PCM Dimension | Capacity |
| 302025 | 3.0*20*25mm | 3.2*21*27.5mm | 3.7V 100mAh |
| 302530 | 3.0*25*30mm | 3.2*26*32.5mm | 3.7V 180mAh |
| 401824 | 4.0*18*24mm | 4.2*19*26.5mm | 3.7V 180mAh |
| 402525 | 4.0*25*25mm | 4.2*26*27.5mm | 3.7V 200mAh |
| 483450 | 4.8*34*50mm | 5.0*35*52.5mm | 3.7V 850mAh |
| 502030 | 5.0*20*30mm | 5.2*21*32.5mm | 3.7V 240mAh |
| 502525 | 5.0*25*25mm | 5.2*26*27.5mm | 3.7V 180mAh |
| 503030 | 5.0*30*30mm | 5.2*31*32.5mm | 3.7V 430mAh |
| 523450 | 5.2*34*50mm | 5.4*35*52.5mm | 3.7V 1000mAh |
| 553444 | 5.5*34*44mm | 5.7*35*46.5mm | 3.7V 850mAh |
| 553640 | 5.5*36*40mm | 5.7*37*42.5mm | 3.7V 850mAh |
| 553759 | 5.5*37*59mm | 5.7*38*61.5mm | 3.7V 1400mAh |
| 602030 | 6.0*20*30mm | 6.2*21*32.5mm | 3.7V 300mAh |
| 602240 | 6.0*22*40mm | 6.2*23*42.5mm | 3.7V 500mAh |
| 602535 | 6.0*25*35mm | 6.2*26*37.5mm | 3.7V 500mAh |
| 602663 | 6.0*26*63mm | 6.2*27*65.5mm | 3.7V 1000mAh |
| 603030 | 6.0*30*30mm | 6.2*31*32.5mm | 3.7V 520mAh |
| 603040 | 6.0*30*40mm | 6.2*31*42.5mm | 3.7V 750mAh |
| 603048 | 6.0*30*48mm | 6.2*31*50.5mm | 3.7V 900mAh |
| 603450 | 6.0*34*50mm | 6.2*35*52.5mm | 3.7v 1050mAh |
| 702040 | 7.0*21*40mm | 7.2*22*42.5mm | 3.7V 500mAh |
| 753048 | 7.5*30*48mm | 7.7*31*50.5mm | 3.7V 1200mAh |
| 803035 | 8.0*30*35mm | 8.2*31*37.5mm | 3.7V 800mAh |

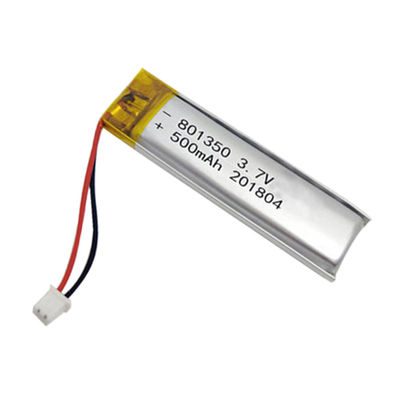

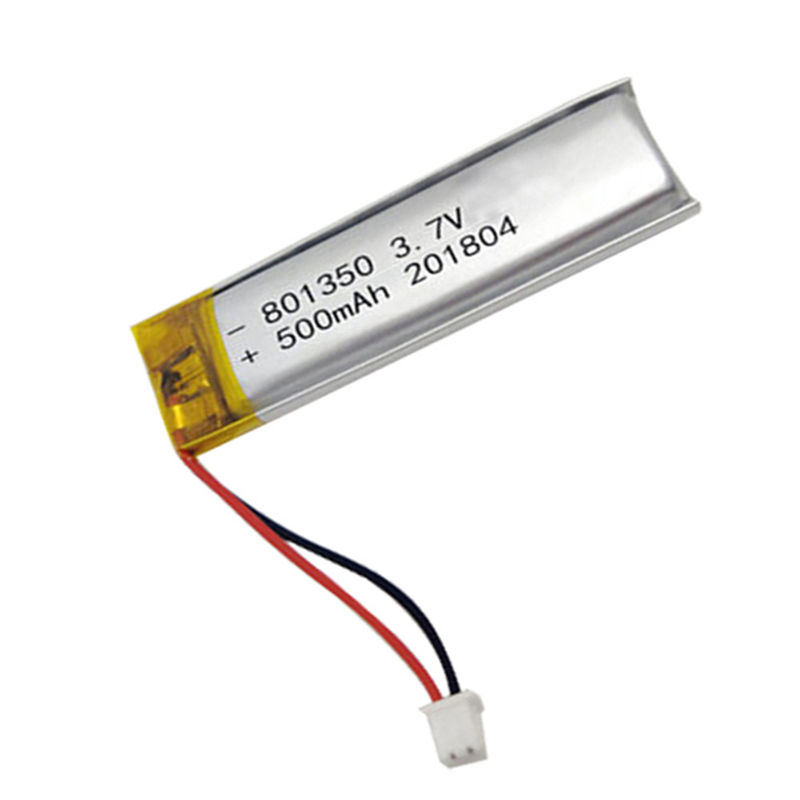

Detailed images Lithium polymer battery pack 801350 rechargeable Li-ion 3.7v 500mah lipo battery
Standard packaging for 3.7V 800mAh lithium polymer battery pack
