| Model Number: | ICR16340 |
| MOQ: | 5000pieces |
| Packaging Details: | Bulk packing |
| Payment Terms: | T/T |
ICR17335 3.7v 750mah 16340 CR123A rechargeable lithium ion battery cell
|
Model
|
ICR16340
|
Charge temperature
|
0~45°C,45~85%RH
|
|
|
Nominal voltage
|
3.7V
|
Discharge temperature
|
-20~55°C,45~85%RH
|
|
|
Nominal capacity
|
750mAh
|
Storage temperature and humidity range
|
within a month
|
-20~+55°C,45~85%RH
|
|
Continous discharge current
|
0.2~1C(Depends on what PCB)
|
|
More than 3 months
|
-20~+45°C,45~85%RH
|
|
Over discharge protection current
|
1C
|
|
within 1 year
|
-5~+20°C,45~85%RH
|
|
Over charge protection voltage
|
4.25V + / - 0.025V /CELL
|
Max size
|
16.5mm*34.5mm (with pcm)
|
|
|
Discharge protection voltage
|
2.50V + / - 0.10V /CELL
|
|
|
|
|
Max. charge voltage
|
4.20v
|
|
|
|
|
Charge current
|
≤1C
|
Sample's Availablity
|
Available
|
|
|
life cycle
|
500 times
|
|
|

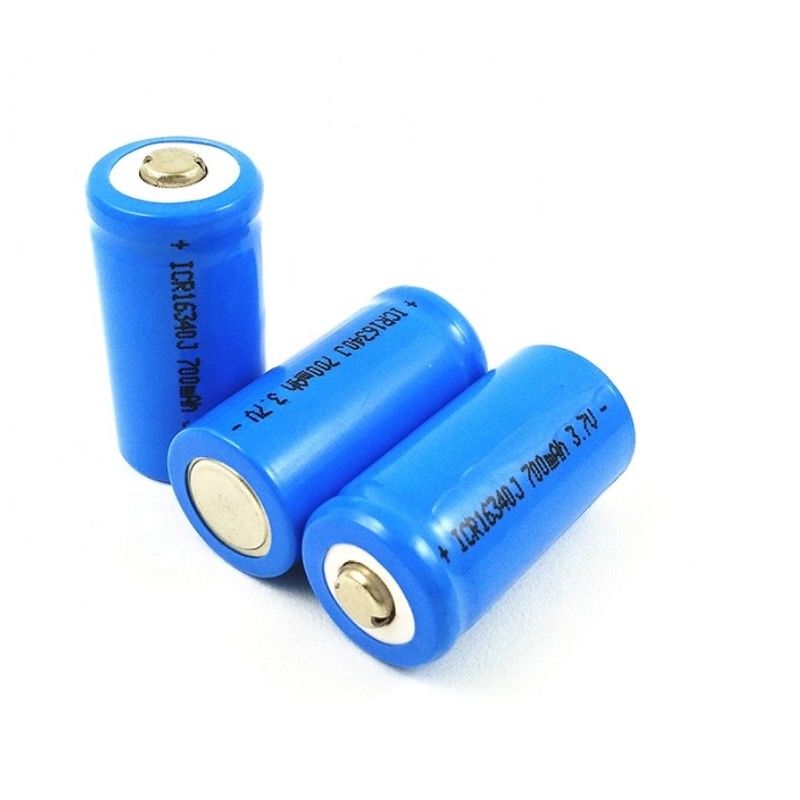

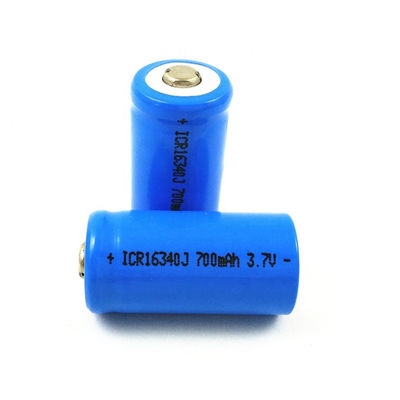

Detailed images for 16340 Lithium Rechargeable Batteries 750mAh 3.7V flashlight battery
Customized lithium rechargeable battery packs
Other lithium ion cylindrical battery cell on sale:
| Lithium ion battery cells list | ||||||
| Model No. | Nominal Voltage | Typical Capacity | Size | Charge Rate | Discharging Rate | Weight(g) |
| ICR14500 | 3.7V | 600mah | 13.9×48.5±0.3 | 0.2-1C | 0.2-2C | 19.5 |
| ICR14500 | 3.7V | 750mah | 13.9×48.5±0.3 | 0.2-1C | 0.2-2C | 20 |
| ICR14500 | 3.7V | 800mah | 13.9×48.5±0.3 | 0.2-1C | 0.2-2C | 20.5 |
| ICR18500 | 3.7V | 1300mah | 18.0×49.7±0.2 | 0.2-1C | 0.2-2C | 32 |
| ICR18500J | 3.7V | 1400mah | 18.0×49.7±0.2 | 0.2-1C | 0.2-2C | 31 |
| ICR18500 | 3.7V | 1600mah | 18.0×49.7±0.2 | 0.2-1C | 0.2-2C | 32 |
| ICR18650 | 3.7V | 2200mah | 18.0×65.2±0.2 | 0.2-1C | 0.2-2C | 40 |
| ICR18650 | 3.7V | 2600mah | 18.0×65.2±0.2 | 0.2-1C | 0.2-2C | 45 |
| ICR18650 | 3.7V | 3000mah | 18.0×65.2±0.2 | 0.2-1C | 0.2-2C | 48 |
| ICR18650 | 3.7V | 3400mah | 18.0×65.2±0.2 | 0.2-1C | 0.2-2C | 50 |
| ICR26650 | 3.7V | 4500mah | 26.3×65.0±0.5 | 0.2-1C | 0.2-2C | 80 |
| ICR26650 | 3.7V | 5000mah | 26.3×65.0±0.5 | 0.2-1C | 0.2-2C | 85 |
| ICR18650P | 3.7V | 2600mah | 18.0×65.2±0.2 | 0.2-1C | 5C | 45 |
Why Choose us:
Technology
R&D
Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.
Quality Control
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.
We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
|
|
