Brand Name: | GPE |
Model Number: | LP113056 |
MOQ: | 5000pieces |
Packaging Details: | Bulk packing |
Payment Terms: | T/T |

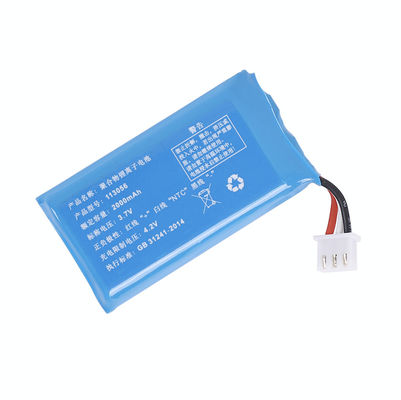

UL 113056 3.7V 2000mAh rechargeable LiPo battery for wearable device
Description |
Nominal Parameter |
Battery Type | 113056 |
Nominal Capacity | 2000mAh |
Energy | 7.4Wh |
Nominal Voltage | 3.7V |
Open Circuit Voltage | ≥3.85V |
AC Impedance Resistance | ≤60mΩ |
Charging Current(Std.) | 400mA (0.2CmA) |
Charging Current(Max.) | 2000mA (1.0CmA) |
Charging Voltage | 4.20V |
Discharging Current(Std.) | 400mA (0.2CmA) |
Discharging Current(Max) | 2000mA (1.0CmA) |
Discharging Cut-off Voltage | 3.0V |
Weight | Approx 30g |
Operating Temperature | Charge 0~+45℃ |
Discharge -10~+60℃ | |
Storage Temperature | Less than 1 month -10~+45℃ |
More than 6 months -10~+60℃ | |
Cycle Life | ≥300 times |
Dimension |
Thickness: 11±0.2mm Width: 30mm Length:56mm
|
Other hot-sale Li polymer battery pack , with stocks can accept mini order:
Shenzhen Gold Power Energy have over 1000models lithium polymer batteries.
Capacity range from 20mAh to 5000mAh, can meet your different kinds of applications.
Following are some of hot-sale models for your reference.
Model | Cell Dimension | With PCM Dimension | Capacity |
302025 | 3.0*20*25mm | 3.2*21*27.5mm | 3.7V 100mAh |
302530 | 3.0*25*30mm | 3.2*26*32.5mm | 3.7V 180mAh |
401824 | 4.0*18*24mm | 4.2*19*26.5mm | 3.7V 180mAh |
402525 | 4.0*25*25mm | 4.2*26*27.5mm | 3.7V 200mAh |
483450 | 4.8*34*50mm | 5.0*35*52.5mm | 3.7V 850mAh |
502030 | 5.0*20*30mm | 5.2*21*32.5mm | 3.7V 240mAh |
502525 | 5.0*25*25mm | 5.2*26*27.5mm | 3.7V 180mAh |
503030 | 5.0*30*30mm | 5.2*31*32.5mm | 3.7V 430mAh |
523450 | 5.2*34*50mm | 5.4*35*52.5mm | 3.7V 1000mAh |
553444 | 5.5*34*44mm | 5.7*35*46.5mm | 3.7V 850mAh |
553640 | 5.5*36*40mm | 5.7*37*42.5mm | 3.7V 850mAh |
553759 | 5.5*37*59mm | 5.7*38*61.5mm | 3.7V 1400mAh |
602030 | 6.0*20*30mm | 6.2*21*32.5mm | 3.7V 300mAh |
602240 | 6.0*22*40mm | 6.2*23*42.5mm | 3.7V 500mAh |
602535 | 6.0*25*35mm | 6.2*26*37.5mm | 3.7V 500mAh |
602663 | 6.0*26*63mm | 6.2*27*65.5mm | 3.7V 1000mAh |
603030 | 6.0*30*30mm | 6.2*31*32.5mm | 3.7V 520mAh |
603040 | 6.0*30*40mm | 6.2*31*42.5mm | 3.7V 750mAh |
603048 | 6.0*30*48mm | 6.2*31*50.5mm | 3.7V 900mAh |
603450 | 6.0*34*50mm | 6.2*35*52.5mm | 3.7v 1200mAh |
656090 | 6.5*60*90mm | 6.5*60*92.5mm | 3.7V 5000mAh |
702040 | 7.0*21*40mm | 7.2*22*42.5mm | 3.7V 500mAh |
753048 | 7.5*30*48mm | 7.7*31*50.5mm | 3.7V 1200mAh |
803035 | 8.0*30*35mm | 8.2*31*37.5mm | 3.7V 800mAh |
855465 | 8.5*54*65mm | 8.5*54*65mm | 3.7V 4000mAh |
863040 | 8.6*30*40mm | 8.8*30*42.5mm | 3.7V 1000mAh |
904060 | 9*40*60mm | 9.2*40*62.5mm | 3.7V 2500mAh |
883760 | 8.8*37*60mm | 9*57*51.6mm | 3.7V 2000mAh |
103048 | 10.2*30*48mm | 10.2*30*50.5mm | 3.7V 1500mAh |
103040 | 10.2*30*40mm | 10.2*30*42.5mm | 3.7V 1200mAh |
114261 | 11*42*61mm | 11*42*63.5mm | 3.7V 3400mAh |
122773 | 12*27*73mm | 12*27*75.5mm | 3.7V 2400mAh |
Images for Ultra small Lithium ion Polymer 3.7V 401030 180mah li polymer battery pack
Standard packaging for 3.7V 7.4V lithium polymer battery pack
FAQ:
Q: Can I use Lithium batteries mixing with other battery types?
A: If different types of batteries are used together, or new batteries are used with old ones, the difference in characteristics of voltage, capacity, etc. may cause over-discharge of the battery which is exhausted first, leading to swelling, bursting or fire.
Q: What will happen if the batteries with different capacity are packed together?
A: If the batteries with different capacity or new and old batteries are used together, leakage, zero voltage and so on might happen. If the batteries are rechargeable and are being charged, some batteries are overcharged and other batteries is not in full charged state. During the discharge, some batteries cannot discharge fully and other batteries might over discharge. This way, the battery will be damaged.
Q: What are the possible reasons for zero voltage or low voltage of the battery pack?
A: Short circuit or open circuit of the connector or wrong connection, de-soldering or cold solder joint between the batteries and lead, wrong connection between the batteries.
Q: What are the possible reasons if the rechargeable battery or rechargeable battery pack cannot be charged?
A: The battery is zero voltage or there is battery with zero voltage in the battery pack.
There is wrong connection inside the battery pack.
There is abnormally of electronic components and/or PCB inside the battery pack.
There is failure in charger.
Outer element causes the charging efficiency to be too low, such as extremely low or high temperature.
Why Choose us:
Technology
R&D
Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.
Quality Control
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.
We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
|
