LiFePO4 Battery Pack
>
Lithium Ion Lifepo4 Battery 24V 7Ah UPS Alarm System Toy Car Use

Lithium Ion Lifepo4 Battery 24V 7Ah UPS Alarm System Toy Car Use

Model Number: LFP24V7
MOQ: 100pieces
Packaging Details: Carton box
Payment Terms: T/T
Detail Information
Place of Origin:
China
Certification:
UN38.3, MSDS, RoHS
Battery Type:
LiFePO4 Battery Pack
Voltage:
24V
Capacity:
7Ah
Cycle Life:
2000 Times
Application:
Fishing Boat, Camping Car, Solar Storage
Weight:
1.3kg
Size:
Customized
Warranty:
2years
Supply Ability:
5000Pieces daily
High Light:

Lithium Ion Lifepo4 Battery

,

24v 7ah lithium battery

,

Lifepo4 Battery 24V 7Ah

Product Description

Lithium Ion Lifepo4 Battery Bateria 24V 7Ah For UPS Alarm System Toy Car






Electrical Characteristics
Nominal Voltage
25.6V
Nominal Capacity
7Ah0.2C
Energy
179.2Wh
Battery type
LiFePo4
Cycle Life
>3000 Cycles @ 0.2C Charge/Discharge at 100%DOD,End of Life 70% Capacity.
Months Self Discharge
≤3.5% per month at 25℃



Standard Charge
Charge Voltage
29.2±0.2V

Charge Mode(CC/CV)
At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C5A, and then,changed continuously with constant voltage of
14.6V until the current was not more than 0.02C5A.
Charger Current
1.2A
Max.Charge Current
3A


Standard Discharge
Discharge Current
1.2A
Max. Continuous Current
6A
Max.Pulse Current
20A(<3S)
Disxcharge Cut-off Voltage
16.0V


Environmental
Charge Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Disxcharge Temperature
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
Storage Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Water Dust Resistance
None


Mechanical
Cell
LiFePO4
Plastic Case
None
Dimension(L*W*H*)
Customized
Weight
Approx. 1.3Kg





Other hot sale lifepo4 rechargeable battery pack:



Lead Acid Replacement LiFePO4 Battery Pack
Voltage
Typical Capacity Charge Discharge

Dimension (mm)

with case

Weight(Kg)
12V 8AH 0.2C-2C 0.2C-2C 150*92*65 1.25
12V 10AH 0.2C-2C 0.2C-2C 150*92*65 1.6
12V 12AH 0.2C-2C 0.2C-2C 151*99*95 1.8
12V 50AH 0.2C-2C 0.2C-2C 195*165*175 9.5
12V 100AH 0.2C-2C 0.2C-2C 330*175*220 19
12V 200AH 0.2C-2C 0.2C-2C 525*240*215 30
24V 10AH 0.2C-2C 0.2C-2C 181*77*175 3
24V 30AH 0.2C-2C 0.2C-2C 195*165*175 12
24V 50AH 0.2C-2C 0.2C-2C 330*175*220 18
24V 100AH 0.2C-2C 0.2C-2C 485*175*240 32
48V 10AH 0.2C-2C 0.2C-2C 223*106*175 7.5
48V 50AH 0.2C-2C 0.2C-2C 522*237*215 33
48V 75AH 0.2C-2C 0.2C-2C 522*237*215 42
48V 100AH 0.2C-2C 0.2C-2C 350*540*160 52

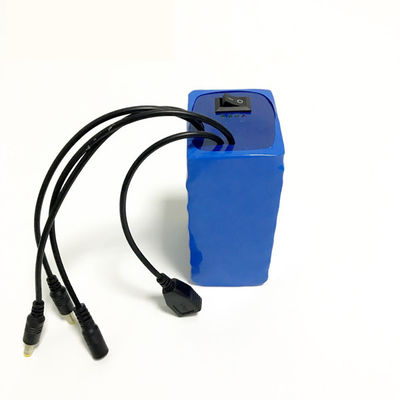

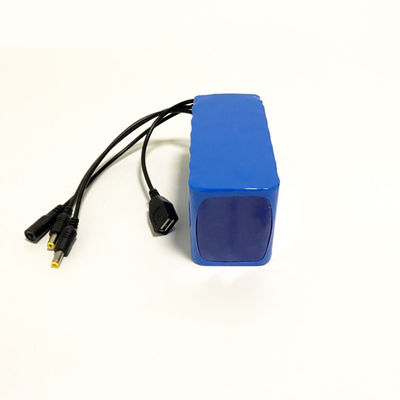

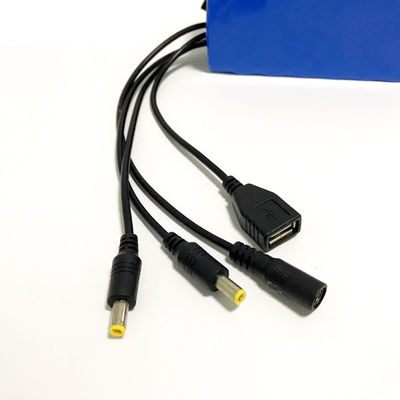

Detailed images: Lithium iron phosphate battery 24V 7Ah Lifepo4 rechargeable battery pack



Lithium Ion Lifepo4 Battery 24V 7Ah UPS Alarm System Toy Car Use 0Lithium Ion Lifepo4 Battery 24V 7Ah UPS Alarm System Toy Car Use 1Lithium Ion Lifepo4 Battery 24V 7Ah UPS Alarm System Toy Car Use 2

FAQ:



Q: What will happen if the batteries with different capacity are packed together?

A: If the batteries with different capacity or new and old batteries are used together, leakage, zero voltage and so on might happen. If the batteries are rechargeable and are being charged, some batteries are overcharged and other batteries is not in full charged state. During the discharge, some batteries cannot discharge fully and other batteries might over discharge. This way, the battery will be damaged.



Q: What are the possible reasons for zero voltage or low voltage of the battery pack?

A: Short circuit or open circuit of the connector or wrong connection, de-soldering or cold solder joint between the batteries and lead, wrong connection between the batteries.



Q: What are the possible reasons if the rechargeable battery or rechargeable battery pack cannot be charged?

A: The battery is zero voltage or there is battery with zero voltage in the battery pack.

There is wrong connection inside the battery pack.

There is abnormally of electronic components and/or PCB inside the battery pack.

There is failure in charger.

Outer element causes the charging efficiency to be too low, such as extremely low or high temperature.





Lifepo4 rechargeable battery pack for other applications.

Lithium Ion Lifepo4 Battery 24V 7Ah UPS Alarm System Toy Car Use 3



Why Choose us:



Technology

  • All-weather applicability (-30~60℃)
  • Highly safe battery design technology with the newest electrolyte and separator technology applie
  • Full Coverage of Battery Variety: Lithium ion Cylindrical battery, lithium polymer battery, LiFePO4 battery, Solar Energy Storage battery pack, square aluminum shell, Primary Battery, etc.

R&D

Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.

Lithium Ion Lifepo4 Battery 24V 7Ah UPS Alarm System Toy Car Use 4



Quality Control



Lithium Ion Lifepo4 Battery 24V 7Ah UPS Alarm System Toy Car Use 5



Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.

Lithium Ion Lifepo4 Battery 24V 7Ah UPS Alarm System Toy Car Use 6



Factory Tour:

Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.

We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,

and customized battery pack since 2001.

Lithium Ion Lifepo4 Battery 24V 7Ah UPS Alarm System Toy Car Use 7
