| Model Number: | LFP12V100 |
| MOQ: | 100pieces |
| Packaging Details: | Carton box |
| Payment Terms: | T/T |
Portable Solar Energy Storage Systems LFP Battery Pack 12V 100ah For Solar Panel
| Part Number | Solar Deep Cycle Lithium Ion Battery 12V 100Ah BMS LiFePO4 Batteries for Energy Storage Inverter |
| MAIN PARANETER | |
| Rated Capacity | 100Ah |
| Nominal Voltage | 12V |
| Max Charge Voltage | 14.6V |
| Discharge Cut Off Voltage | 10V |
| Charging Current | 40A |
| Max. Continuous Discharging Current | 100A |
| Cycle Life | 2000 times |
| Self-discharge Rate | ≤3% per month (@25℃±5) |
| MECHANICAL SPECIFICATIONS | |
| Dimensions (L*W*H) | 330*180*240mm ±5mm / Customized |
| Weight | 14Kg |
| OTHERS | |
| Operating Temperature | Charging: 0 ~ 45℃/Discharging:-20 ~ 60℃ |
| Storage Temperature | -10 ~ 45℃ |
| Humidity | 5% to 95% relative humidity |
| Certification | CE/RoHS/MSDS/UN38.3 |
| Warranty | 5 Years |
| Delivery period | 7-20 days, depending on stock and quantity. |
| FEATURES | |
| Main protection function Overcharge, over discharge, over current, short circuit, etc. | |
lifepo4 12v 200ah battery pack 12v 200ah lifepo4 battery pack 12v 200ah battery weight lithium ion battery 12v 200ah price gel battery 12v
Other hot sale lifepo4 rechargeable battery pack:
| Lead Acid Replacement LiFePO4 Battery Pack | |||||
|
Voltage
|
Typical Capacity | Charge | Discharge |
Dimension (mm) with case |
Weight(Kg) |
| 12V | 8AH | 0.2C-2C | 0.2C-2C | 150*92*65 | 1.25 |
| 12V | 10AH | 0.2C-2C | 0.2C-2C | 150*92*65 | 1.6 |
| 12V | 12AH | 0.2C-2C | 0.2C-2C | 151*99*95 | 1.8 |
| 12V | 50AH | 0.2C-2C | 0.2C-2C | 195*165*175 | 9.5 |
| 12V | 100AH | 0.2C-2C | 0.2C-2C | 330*175*220 | 19 |
| 12V | 200AH | 0.2C-2C | 0.2C-2C | 525*240*215 | 30 |
| 24V | 10AH | 0.2C-2C | 0.2C-2C | 181*77*175 | 3 |
| 24V | 30AH | 0.2C-2C | 0.2C-2C | 195*165*175 | 12 |
| 24V | 50AH | 0.2C-2C | 0.2C-2C | 330*175*220 | 18 |
| 24V | 100AH | 0.2C-2C | 0.2C-2C | 485*175*240 | 32 |
| 48V | 10AH | 0.2C-2C | 0.2C-2C | 223*106*175 | 7.5 |
| 48V | 50AH | 0.2C-2C | 0.2C-2C | 522*237*215 | 33 |
| 48V | 75AH | 0.2C-2C | 0.2C-2C | 522*237*215 | 42 |
| 48V | 100AH | 0.2C-2C | 0.2C-2C | 350*540*160 | 52 |

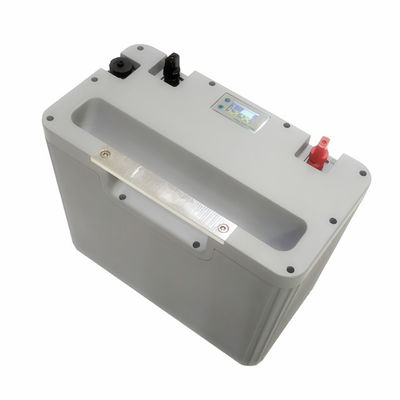

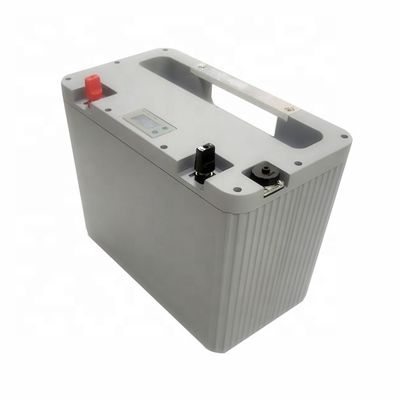

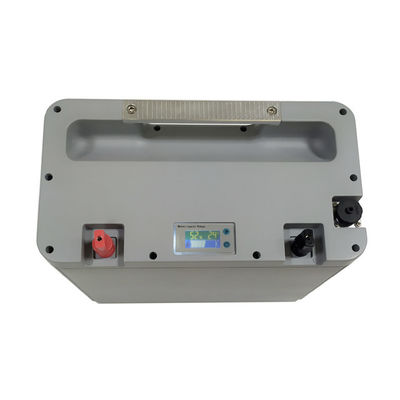

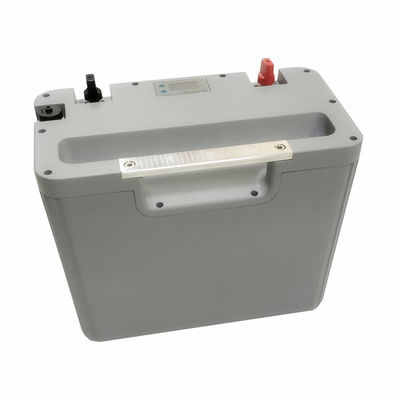

Detailed images: RV/YACHT/Fishing boat battery 12V 100Ah Lifepo4 rechargeable battery pack
FAQ:
Q: Can I use Lithium batteries mixing with other battery types?
A: If different types of batteries are used together, or new batteries are used with old ones, the difference in characteristics of voltage, capacity, etc. may cause over-discharge of the battery which is exhausted first, leading to swelling, bursting or fire.
Q: What will happen if the batteries with different capacity are packed together?
A: If the batteries with different capacity or new and old batteries are used together, leakage, zero voltage and so on might happen. If the batteries are rechargeable and are being charged, some batteries are overcharged and other batteries is not in full charged state. During the discharge, some batteries cannot discharge fully and other batteries might over discharge. This way, the battery will be damaged.
Q: What are the possible reasons for zero voltage or low voltage of the battery pack?
A: Short circuit or open circuit of the connector or wrong connection, de-soldering or cold solder joint between the batteries and lead, wrong connection between the batteries.
Q: What are the possible reasons if the rechargeable battery or rechargeable battery pack cannot be charged?
A: The battery is zero voltage or there is battery with zero voltage in the battery pack.
There is wrong connection inside the battery pack.
There is abnormally of electronic components and/or PCB inside the battery pack.
There is failure in charger.
Outer element causes the charging efficiency to be too low, such as extremely low or high temperature.
Lifepo4 rechargeable battery pack for other applications.
Why Choose us:
Technology
R&D
Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.
Quality Control
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.
We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
|
|
